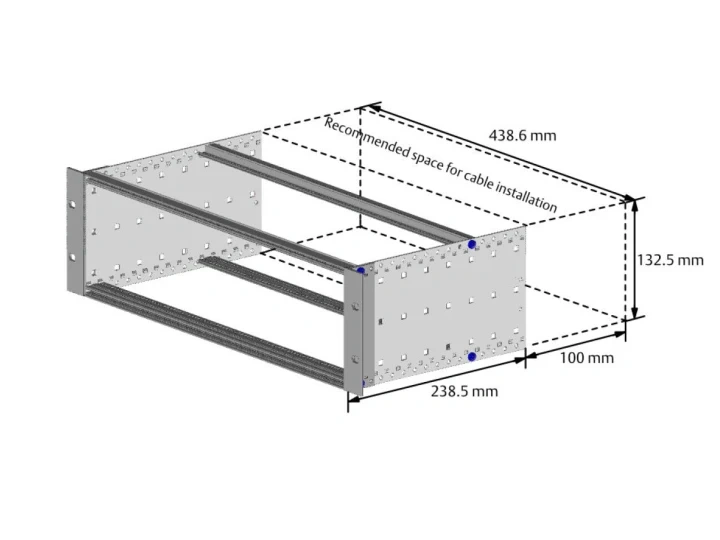

A6500-RR is part of the AMS6500 ATG machinery protection system, featuring a fixed-slot layout:9 slots for measurement cards, 2 slots for relay cards (supporting redundancy).2 slots for communication cards (also supporting redundancy).

Distinguished from the other two rack models in the same series:

A6500-SR: Standard single-relay rack (supports up to 11 measurement cards and 1 RC relay card).

A6500-FR: Front-terminal rack.

List of Rack-Compatible Module Models

1) Measurement/Acquisition Cards (plug directly into the RR rack)

A6500-UM Universal Measurement Card (2 channels)

A6500-TP Temperature & Process Card (4 channels)

2) Relay Logic Cards (support dual redundancy)

A6500-RC System Relay Card

16 SPDT relay outputs, 66 digital inputs

3) Communication Cards (for system networking and host connectivity)

A6500-CC Standard Communication Card

A6500-CP Pro Advanced Communication Card

4) Auxiliary Accessories

A6500-LC LVDT Signal Conversion Module: Compatible with LVDT and half-bridge displacement sensors; used in conjunction with the A6500-UM

A6500-SD: System SD Memory Card

Compatible Sensors: EPRO CON021 Proximitor, PR6423 Eddy Current Sensor, etc. (external sensors; not inserted into the rack)

Note: The A6500-RR is the only rack that supports the simultaneous installation of two A6500-RC cards to achieve relay redundancy; the SR rack supports only one card.
