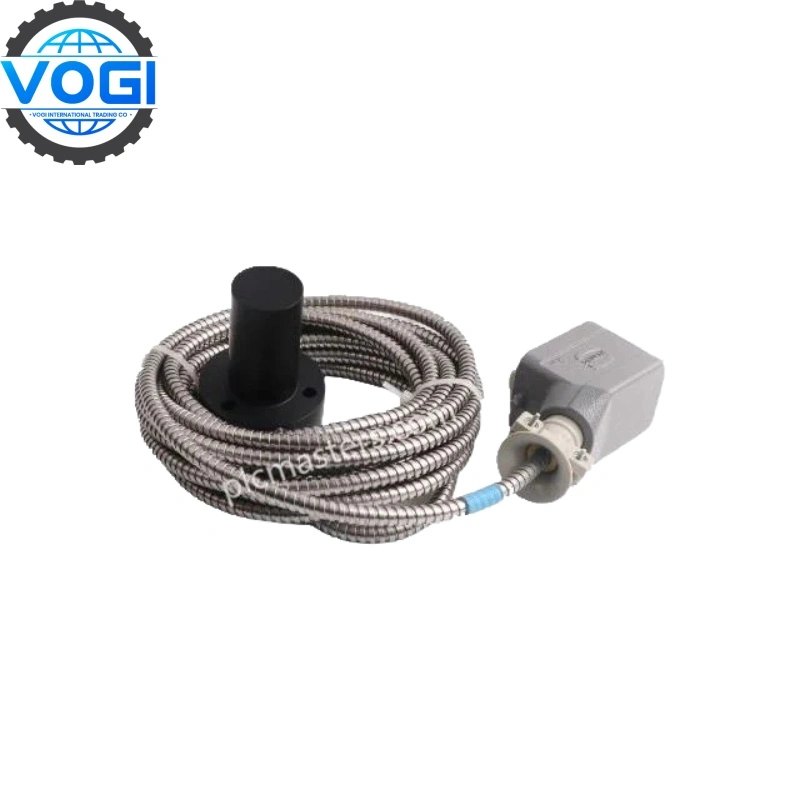

EPRO PR9268/203-000 Electrodynamic Vertical Velocity Sensor
| Brand | EPRO |
| Module Number | PR9268/203-000 |
| Unit Price | $1500 |
| Country Of Origin | USA |
| Weight | 0.91KG |
| Certificate |
C/O from the Chamber of Commerce C/Q from the Manufacturer |
| Warranty | 12 Months |
| Inventory Qty | 10 |
The PR9268/203-000 is a versatile velocity transducer designed for robust industrial monitoring. It is primarily employed for measuring vibrational speed and is extensively applied across sectors including power generation, oil and gas, and heavy machinery for predictive maintenance and operational oversight.
Technical Specifications
|
Parameter |
Specification |
|
Model |
PR9268/203-000 |
|
Function |
Electromagnetic Velocity Transducer |
|
Measured Quantity |
Vibrational Velocity |
|
Sensitivity |
20 mV/mm/s ± 5% |
|
Measurement Range |
0 to 1000 µm (peak) |
|
Frequency Response |
10 Hz to 1000 Hz (±10%) |
|
Resonant Frequency |
> 2500 Hz |
|
Output Signal |
Analog Voltage proportional to velocity |
|
Coil Resistance |
600 Ohms ± 10% |
|
Insulation Resistance |
> 100 MOhms at 500 VDC |
|
Case Material |
Stainless Steel |
|
Connector |
2-pin, sealed |
|
Operating Temperature |
-50 °C to +120 °C |
|
Mounting |
M10 x 1.5 threaded stud |
