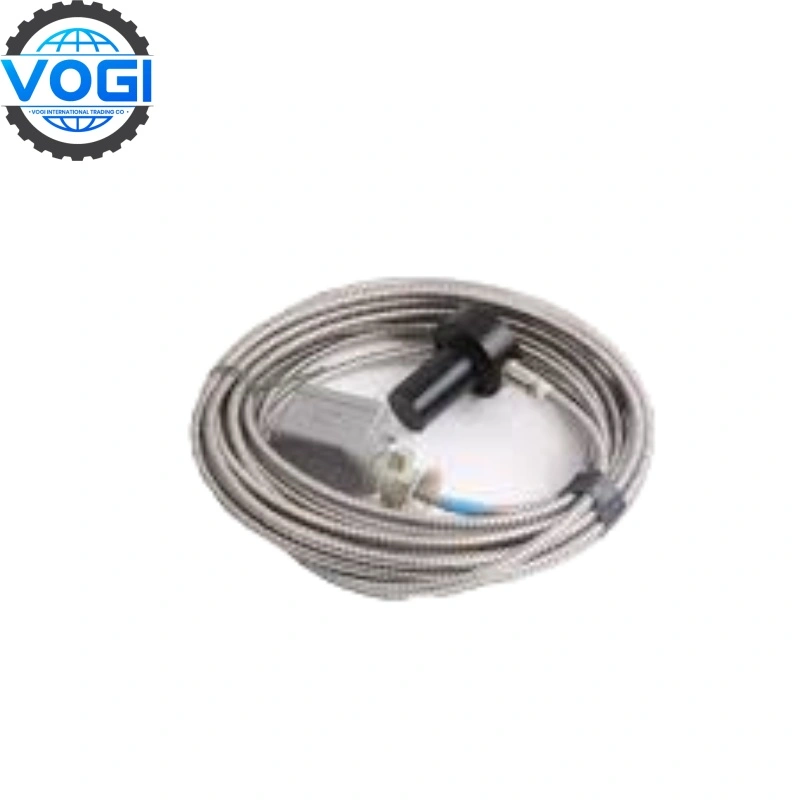

EPRO PR9268/617-100-CNSF Electrodynamic Velocity Sensor
| Brand | EPRO |
| Module Number | PR9268/617-100-CNSF |
| Unit Price | $1500 |
| Country Of Origin | USA |
| Weight | 0.91KG |
| Certificate |
C/O from the Chamber of Commerce C/Q from the Manufacturer |
| Warranty | 12 Months |
| Inventory Qty | 10 |
The PR9268/617-100-CNSF is a high-performance velocity transducer designed for robust condition monitoring and protection of critical rotating machinery. It is extensively applied in power generation, oil and gas, and heavy industrial sectors for precise measurement of radial vibration and rotational speed.
|
Parameter |
Value / Description |
|
Model |
PR9268/617-100-CNSF |
|
Function |
Velocity Transducer |
|
Sensitivity |
100 mV/cm/s ± 5% |
|
Measuring Range |
0 to 100 mm/s (velocity), 0 to 2000 μm (displacement) |
|
Frequency Response |
10 Hz to 1000 Hz (±10%) |
|
Resonant Frequency |
≥ 12 Hz |
|
Output Signal |
2-wire, 4-20 mA current loop |
|
Power Supply |
12 to 30 VDC |
|
Current Consumption |
< 25 mA (typical) |
|
Electrical Connection |
2-pin connector, M12x1 |
|
Case Material |
Stainless steel |
|
Ingress Protection |
IP67 |
|
Operating Temperature |
-30 °C to +120 °C |
|
Mounting |
M10 x 1.5 threaded stud |
Beneficiary's Bank: CITIBANK N.A.
Beneficiary address:Champion Tower,Three Garden Road,Central,Hong Kong
Beneficiary: Vogi International Trading Co., Limited
Account No.: 395714900
Bank Code: 006 Branch Code: 391
Swift Code:CITIHKHX (CITIHKHXXXX * If 11 characters are required)
Payment Term：T/T
Details:
Product Features
The PR9268/617-100-CNSF offers a set of distinct product characteristics. A primary characteristic of the PR9268/617-100-CNSF is its robust 4-20 mA current output, which ensures highly stable signal transmission over long cable distances with superior immunity to electromagnetic interference. The all-stainless-steel construction and IP67 rating of the PR9268/617-100-CNSF guarantee exceptional durability and reliable operation in the most demanding environments, including areas with high humidity, oil, and dust. Furthermore, the integrated nature of the PR9268/617-100-CNSF simplifies installation and reduces commissioning time for maintenance teams.
0301068B Comparison
When comparing the PR9268/617-100-CNSF to other models, its key advantage lies in its current loop output. Many alternative velocity sensors, such as the PR9266 series, provide a voltage output (e.g., 100 mV/cm/s), which is more susceptible to signal degradation over long cable runs and electrical noise. The 4-20 mA output of the PR9268/617-100-CNSF makes it a more suitable and reliable choice for extensive industrial plants. While direct replacement depends on the system's input card configuration, the PR9268/617-100-CNSF is often the preferred upgrade for enhancing measurement integrity and is not always a direct substitute for voltage-output models without interface adjustments.
0301068Bapplication cases
The engineering application of the PR9268/617-100-CNSF is widespread across international heavy industries. In the power generation sector, the PR9268/617-100-CNSF is deployed in large numbers on turbines, generators, and critical pumps for continuous condition-based monitoring. Its rugged design and reliable 4-20 mA signal make the PR9268/617-100-CNSF equally prevalent on offshore oil and gas platforms, where it monitors compressors and fans, ensuring operational safety and preventing unplanned downtime. The extensive use of the PR9268/617-100-CNSF in these applications underscores its reputation for delivering dependable performance in mission-critical machinery protection systems globally.
