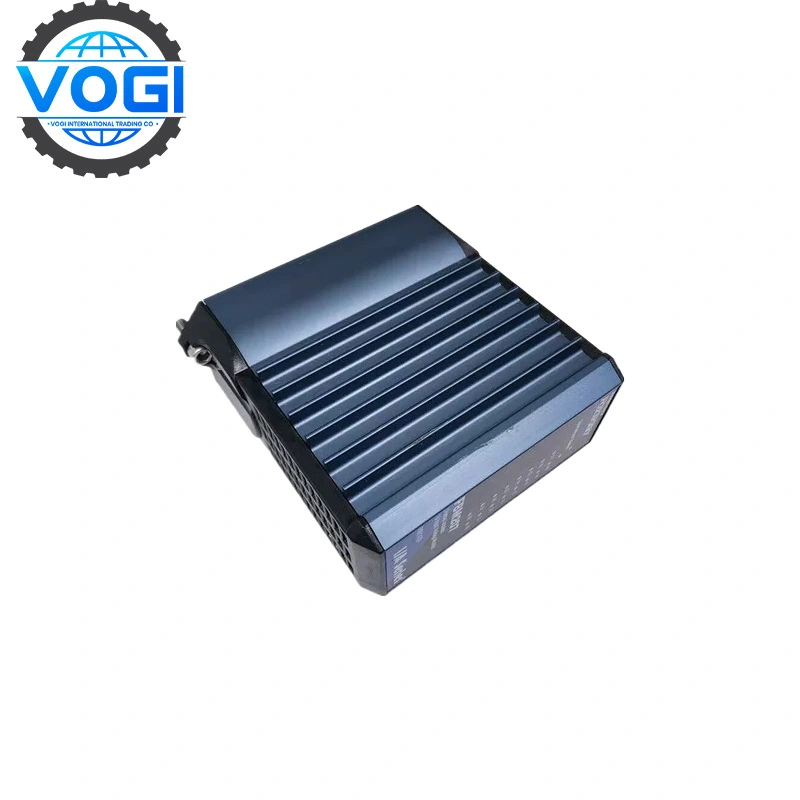

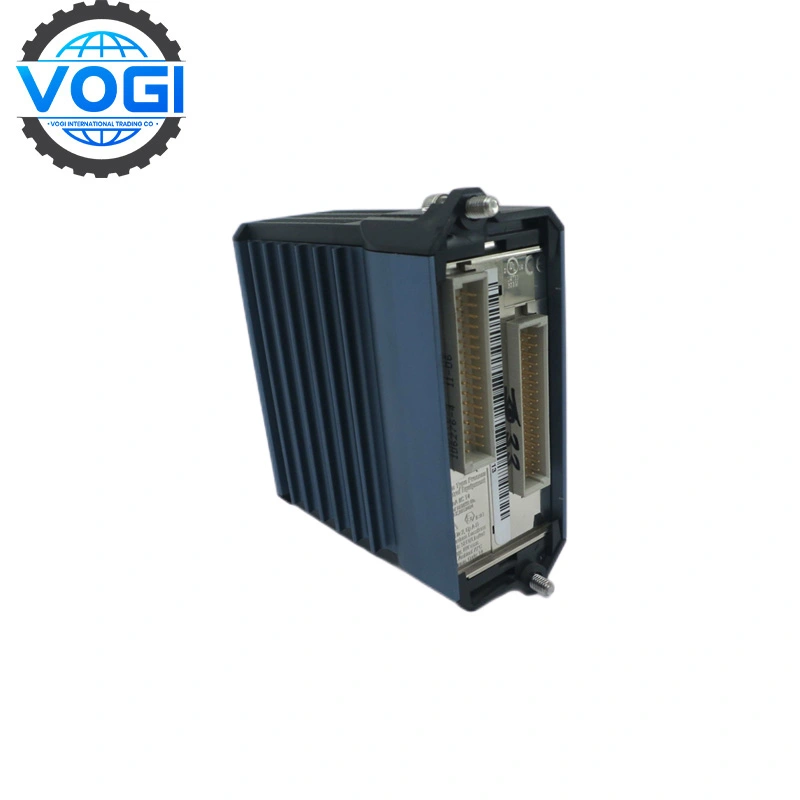

Foxboro FBM207b P0914TD Input Interface Modules

Brand	Foxboro
Module Number	FBM207b
Ordering Number	P0914TD
Unit Price	$500
Country Of Origin	USA
Weight	0.8KG
Certificate	C/O from the Chamber of Commerce C/Q from the Manufacturer
Warranty	12 Months
Inventory Qty	10

Foxboro FBM207b serves as a versatile voltage monitor and contact sense input module in the I/A Series DCS. It converts field signals into digital data for distributed control, with optional redundancy ensuring continuous acquisition and reliable alarm processing.

Add to Cart

Submit Inquiry

Description

Payment&Security

Datasheet

Description

Foxboro FBM207b Technical specifications

Main Power Input: 24 V DC ±5%

Discrete Inputs: 16 channels, supports 15–60 V DC, 120 V AC/DC, or 240 V AC levels

Isolation: Galvanic isolation per channel, group-isolated

Communication: 2 Mbps redundant Fieldbus interface

Input Filter Time: Configurable (0, 4, 8, 16, 32 ms)

Operating Temperature: –40 °C to +70 °C

Protection Rating: Class G3 harsh-environment capable

Module Type: Supports single or redundant installation

Status Indicators: Front LEDs for module and input status

Payment&Security

Beneficiary's Bank: CITIBANK N.A.
Beneficiary address:Champion Tower,Three Garden Road,Central,Hong Kong
Beneficiary: Vogi International Trading Co., Limited
Account No.: 395714900
Bank Code: 006 Branch Code: 391
Swift Code:CITIHKHX (CITIHKHXXXX * If 11 characters are required)
Payment Term：T/T

Datasheet

DataSheet Download

Performance comparison

Parameter	FBM207	FBM207b	FBM207c
Voltage Monitoring	60/120/240 V AC/DC	Not supported	Not supported
Contact Sense	No	15–60 V DC contacts	24/48 V DC contacts
Channel Isolation	Yes	Yes	Yes
Redundancy Support	Optional	Optional	Optional

Summary:

FBM207b offers mixed voltage/contact sensing. While FBM207 (standard) monitors voltage only, and FBM207c senses 48 V DC contacts, FBM207b balances broad input support with optional redundancy.

Typical cooperation cases

Germany – Chemical Plant Safety Upgrade

FBM207b modules were installed in hazardous zones to monitor valve states and voltage levels, ensuring real-time control logic. Redundant installation prevented any signal loss during maintenance.

United States – Oil & Gas Terminal

Deployed for pipeline shutdown signal monitoring, converting analog/digital inputs to Fieldbus data. Its rugged design ensured reliable performance under extreme environmental conditions.

China – High-Rise Building Automation

Used in building management systems to detect fire zones and door contacts. The module's compact size and Class G3 compliance ensured safe and tidy installation.

Australia – Mining Safety Systems

Installed in remote mining equipment enclosures to monitor system health signals. Redundancy provided uninterrupted alarm notifications in isolated sites.
