Compared with alternative models/ Features
Comparison Items | 6ES7315 - 6TH13 - 0AB0 (CPU 315T - 2 DP) | 6ES7315 - 7TJ10 - 0AB0 (CPU 315 - 2 PN/DP) |
Function Focus | Motion & process control, with integrated process I/O | Conventional automation control |
Storage & Memory | 256 KByte working memory, ≥8MB micro SD card | 128 KB working memory, up to 8 MB memory card |
Interface | 1 MPI/DP (12MBit/s), 2 DP, 1x40 - pole connector | 1 PROFIBUS DP, 1 PROFINET, 1x40 - pin connector |
Process Capability | Strong in complex processes | Mainly for logic & data processing |
Operating Environment | 0 - 60°C (operation), - 25 - 70°C (storage), 5% - 95% RH (non - condensing) | 0 - 60°C (operation), - 25 - 70°C (storage), 5% - 95% RH (non - condensing) |
Dimensions &Weight | 12.7×12.7×17.8 cm, 0.7 kg | 125×125×150 cm, 0.65 kg |
Performance comparison
Parameter | IS220PDOAH1A (Discrete Output Module) | IS220PDOAH1B (Discrete Output Module) |
Communication | Dual 10/100 Mbps Ethernet | Dual 10/100 Mbps Ethernet |
Redundancy | N/A | N/A |
Operating Environment | -40°C to +85°C | -40°C to +85°C |
Function | Relay control and monitoring | Relay control and monitoring |
Relay Channels | 12 (Form C contacts) | 16 (Form C contacts) |
Power Input | 28V DC | 28V DC |
Summary:

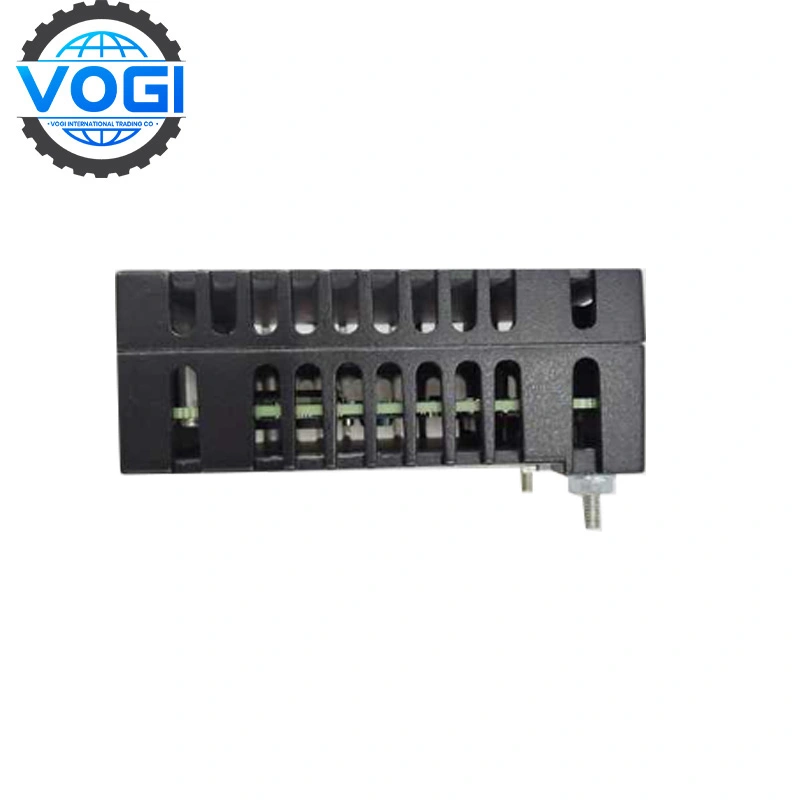

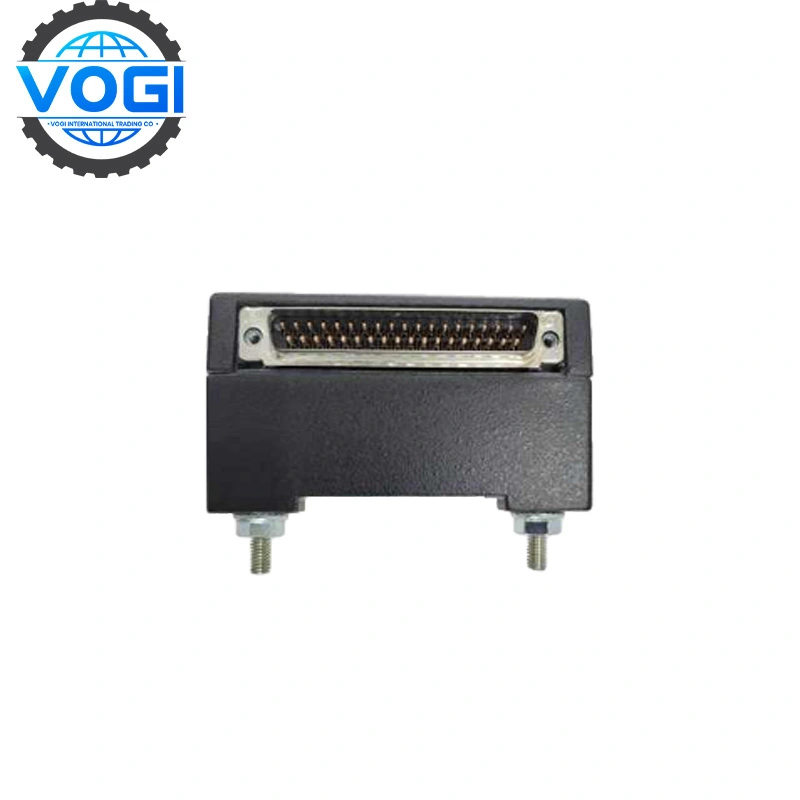

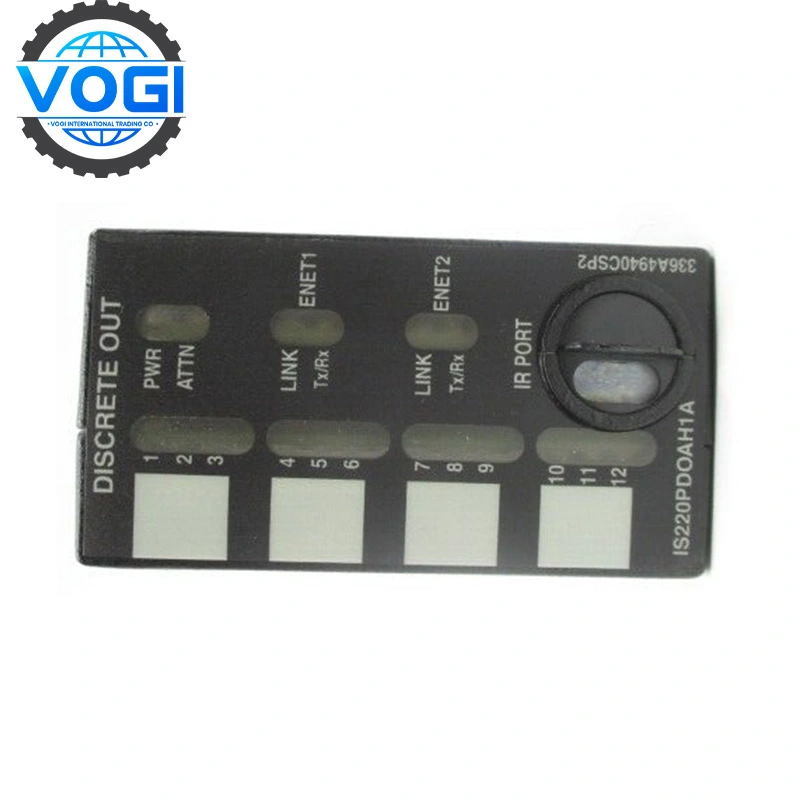

GE IS220PDOAH1A has 12 channels of relay control and the IS220PDOAH1B is the higher capacity card with 16 channels for higher output applications.
Typical cooperation cases
Russia - Power Plant Upgrade
In a Russian power plant, GE IS220PDOAH1A manages 12 discrete outputs, enhancing control system reliability and reducing maintenance needs by 20%.
India - Industrial Plant Modernization
In an Indian industrial plant, GE IS220PDOAH1A integrates with existing systems, providing robust digital I/O and increasing operational efficiency by 15%.
Brazil - Manufacturing Facility Expansion
Deployed in a Brazilian manufacturing facility, GE IS220PDOAH1A supports real-time monitoring and control of production lines, optimizing efficiency and reducing downtime by 25%.
South Africa - Mining Operation
In a South African mining operation, GE IS220PDOAH1A ensures safe and efficient operations by managing critical equipment signals and reducing equipment failure rates by 30%.
