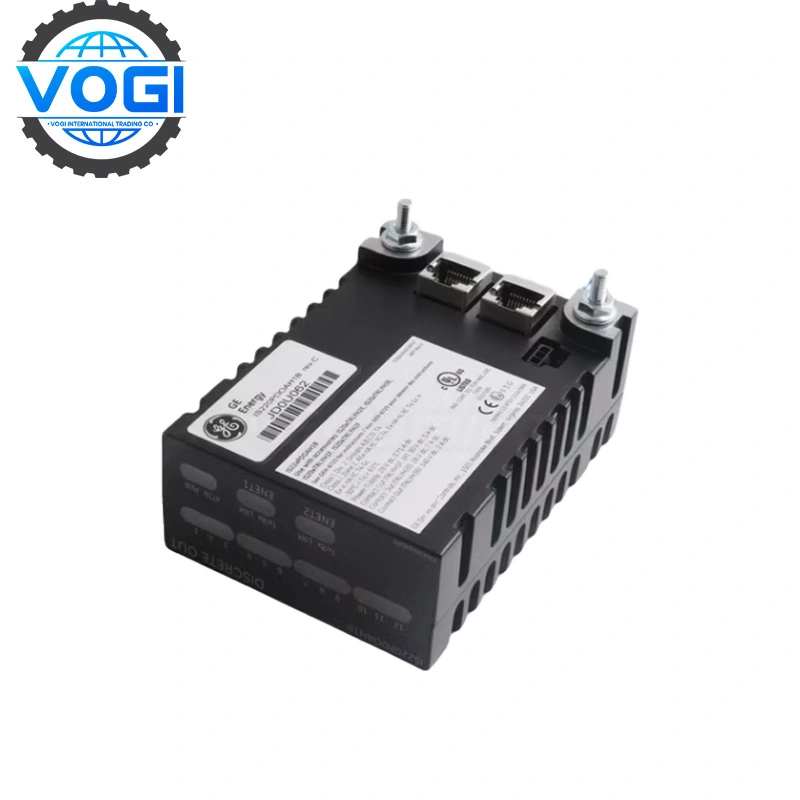

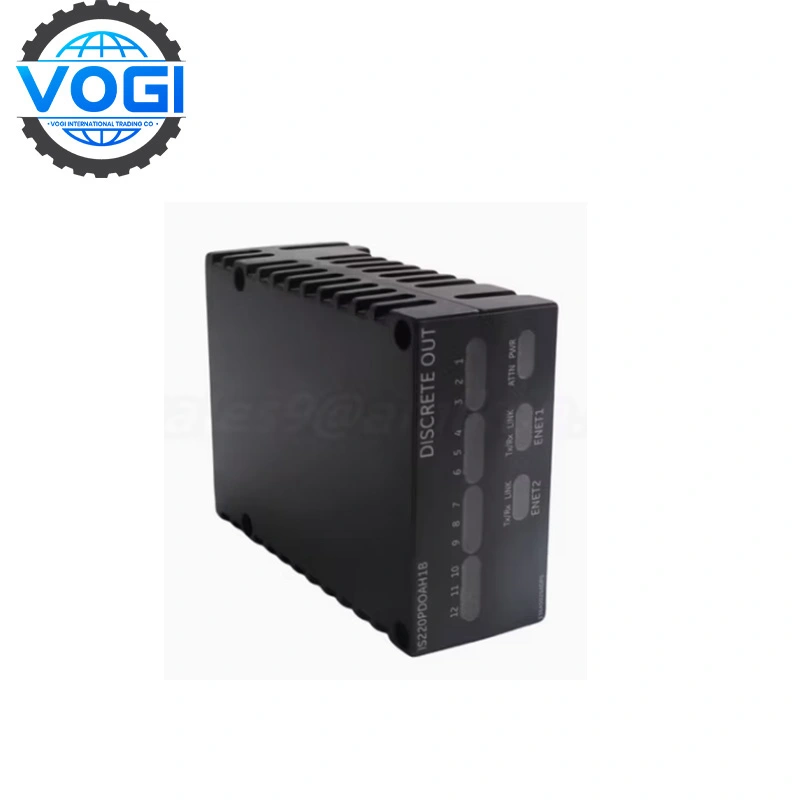

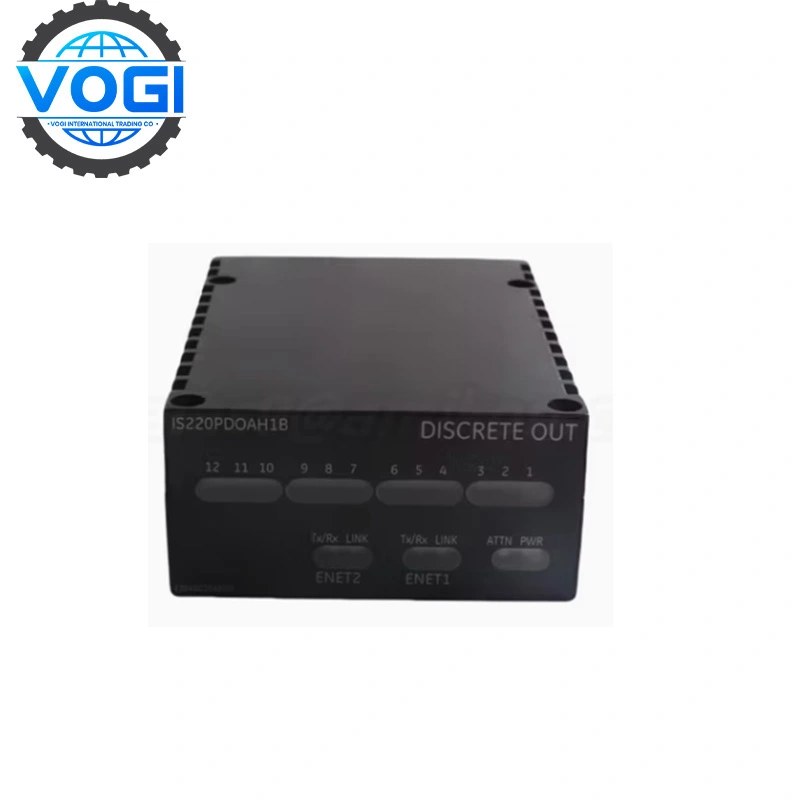

GE IS220PDOAH1B Key features
16 isolated digital outputs for precise control.
Dual Ethernet connectivity for reliable communication.
Wide operating temperature range (-40°C to +85°C).
Real-time monitoring and diagnostics via LED indicators.
Seamless integration with GE Mark VIe systems
INSTALLATION:
De-energize the Mark VIe rack to prevent electrical hazards.
Securely mount the module in the designated slot using the provided hardware.
Verify that all connections and power input match the system specifications.
Restore power and check the status LEDs to confirm normal operation
Performance comparison
Parameter | IS220PDOAH1A (Discrete Output Module) | IS220PDOAH1B (Discrete Output Module) |
Communication | Dual 10/100 Mbps Ethernet | Dual 10/100 Mbps Ethernet |
Redundancy | N/A | N/A |
Operating Environment | -40°C to +85°C | -40°C to +85°C |
Function | Relay control and monitoring | Relay control and monitoring |
Relay Channels | 12 (Form C contacts) | 16 (Form C contacts) |
Power Input | 28V DC | 28V DC |
Typical cooperation cases
Spain - Industrial Automation Upgrade
In a Spanish manufacturing facility, the GE IS220PDOAH1B manages 12 discrete outputs, enhancing control system reliability and reducing maintenance needs by 20%.
France - Power Plant Modernization
In a French power plant, the IS220PDOAH1B integrates with existing systems, providing robust digital I/O and increasing operational efficiency by 15%.
Germany - Manufacturing Facility Expansion
Deployed in a German manufacturing facility, the GE IS220PDOAH1B supports real-time monitoring and control of production lines, optimizing efficiency and reducing downtime by 25%.
Compared with alternative models/ Features
Comparison Items | 6ES7315 - 6TH13 - 0AB0 (CPU 315T - 2 DP) | 6ES7315 - 7TJ10 - 0AB0 (CPU 315 - 2 PN/DP) |
Function Focus | Motion & process control, with integrated process I/O | Conventional automation control |
Storage & Memory | 256 KByte working memory, ≥8MB micro SD card | 128 KB working memory, up to 8 MB memory card |
Interface | 1 MPI/DP (12MBit/s), 2 DP, 1x40 - pole connector | 1 PROFIBUS DP, 1 PROFINET, 1x40 - pin connector |
Process Capability | Strong in complex processes | Mainly for logic & data processing |
Operating Environment | 0 - 60°C (operation), - 25 - 70°C (storage), 5% - 95% RH (non - condensing) | 0 - 60°C (operation), - 25 - 70°C (storage), 5% - 95% RH (non - condensing) |
Dimensions &Weight | 12.7×12.7×17.8 cm, 0.7 kg | 125×125×150 cm, 0.65 kg |
