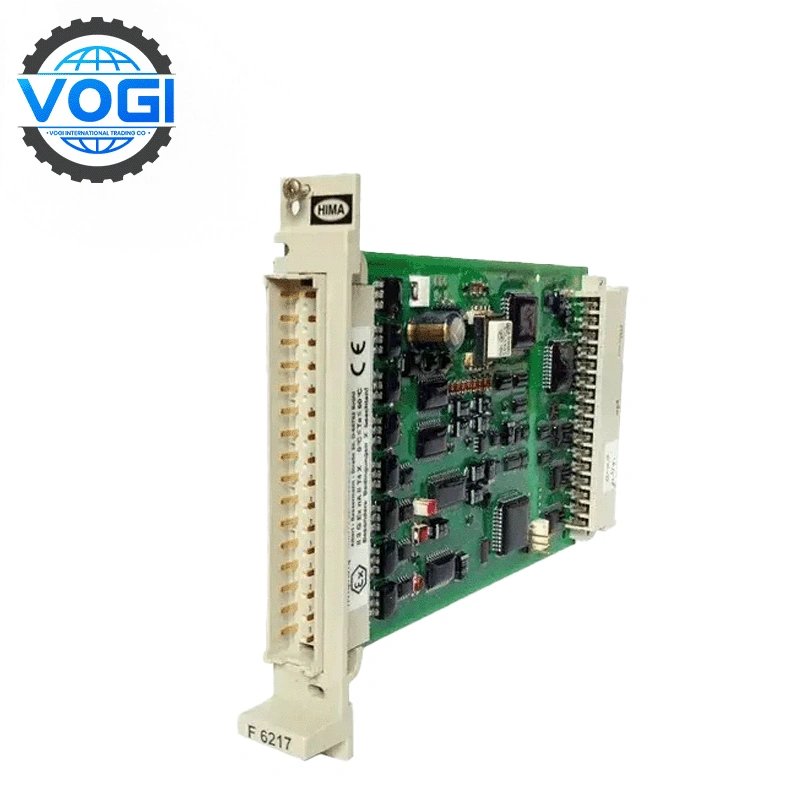

HIMA F6217 8 fold analog input module

HIMA F6217 Key parameters

Signal Handling & Range

Input Channels: 8 configurable analog inputs supporting 4–20 mA current or 0–5/10 V voltage signals, with built-in safety isolation to prevent cross-channel interference .

Measurement Precision: 12-bit resolution (0–4095 counts) for accurate sensor data conversion, achieving ≤0.1% basic error at 25°C and ≤0.3% operational error across 0–60°C .

Voltage Tolerance: Accepts inputs up to 5.5 V (nominal) and withstands transient surges ≤7.5 V without damage .

Safety & Compliance

Certifications: SIL 3 (IEC 61508/61511) and AK6-tested, validated for use in nuclear, chemical, and rail safety systems requiring fail-safe operation .

Diagnostic Protocols: Embedded self-test routines (e.g., signal integrity checks) with a <450 ms safety time to trigger safe-state responses during faults .

Power & Environmental Resilience

Power Requirements: Dual voltage inputs (5 V DC: 80 mA, 24 V DC: 50 mA) for stable operation under ≤15% ripple conditions .

Temperature Range: Operates at -40°C to +70°C with humidity resistance up to 95% (non-condensing), suitable for outdoor or harsh industrial settings .
