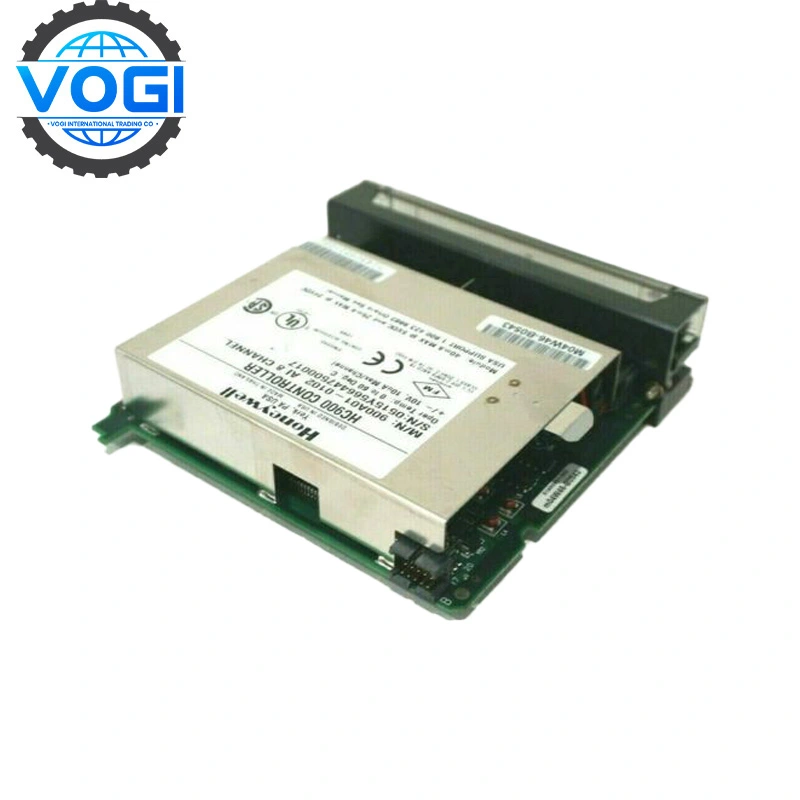

HONEYWELL 900A01-0102 HC900 Series Digital Input Module

HONEYWELL 900A01-0102 Technical specifications

Model: 900A01-0102

Type: Rack Power Supply Module

Input voltage: 90~264 VAC, 50/60 Hz

Output voltage: 5 VDC, 24 VDC

Output current:

Maximum 10 A (5VDC)

Maximum 2.5 A (24VDC)

Power: Maximum about 70W

Status indicator: Power OK, Fault LED

Power redundancy: Can be used with redundant modules to achieve redundant power supply

Installation method: Insert into the power supply slot on the left end of the HC900 rack

Operating temperature: 0 ~ 60°C

Storage temperature: -40 ~ 85°C

Humidity range: 5% ~ 95%

Certification: UL, CSA, CE

Compatible controllers: 900C50, 900C52, all 900 series modules

Inputs per module: 8 (isolated)

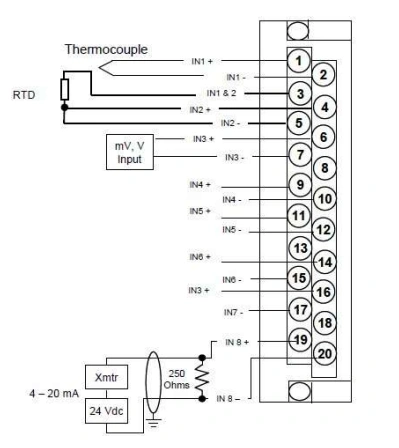

Input types: mV, V, T/C, RTD, ohms, mA, slidewire assigned to any channel.

Thermocouples:

100 Ohms/Legs

100 (except Low), 500 & 1000 RTD: 100 Ohms/Leg

100 YIS: 100 Ohms/Leg

100-Low RTD & 10 ohm Cu: 10 Ohms/Leg

Slidewire 100 to 6,500 Ohms: 10% of total res./leg

Input Impedance:

10 megohms for T/C and mV inputs;

>1 megohm for volts and 250 ohms
