Honeywell MU-TDPR02 51304425-125
| Brand | Honeywell |
| Model Number | MU-TDPR02 |
| Order Number | 51304425-125/51304425-100 |
| Unit price | $999 |
| Country Of Origin | USA |
| Weight | 1KG |
| Certificate |
C/O from the Chamber of Commerce C/Q from the Manufacturer |
| Warranty | 12 Months |
| Inventory Qty | 2 |

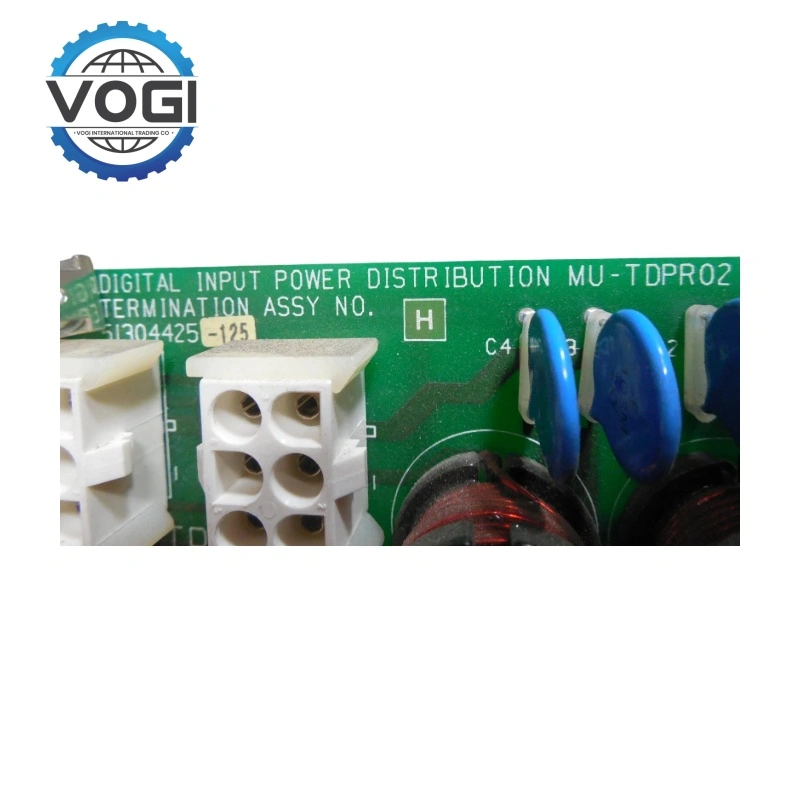

Honeywell MU-TDPR02 is DI Power Distribution FTA, It belong to standard FTAs for TDC3000 system.

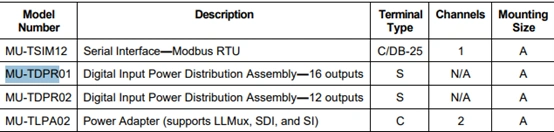

There is some items has same parameters
Account Number 88800006406771
Account name Vogi International Trading Co., Limited
(* If the account name exceeds the available space, please continue in the address field.)
SWITF/BIC Code WIHBHKHHXXX
Bank name OCBC Hong Kong Branch
Bank address 161 Queen's Road Central, Central, Hong Kong
Country/Region Hong Kong (China)
Account type Business Account
Bank code 035
Payment method For the payment of goods, please make a FPS/CHATS/SWIFT Payment
Notes Please include the following memo/message to receiver when making a payment: [Buyer Name] [Invoice/Contract Number] [Product]
Running systems should have wiring rules
The process wiring to the High-Performance Process Manager should be segregated by signal level in different trays or conduits to minimize cross talk. The segregation rules are as follows:
Millivolt signals from electrical components, such as thermocouples, low voltage dc signals, 1-5 V/4-20 mA, and digital/contact circuits with voltages less than 30 Vac peak/DC, should be in individual cables that provide a protective shield. They can all be routed in the same cable tray. The tray can also include UCN coaxial cables, Master Reference Ground cables (Safety Ground cables in a CE Compliant installation) cables, and 50-conductor FTA to IOP cables.
Circuits running at higher voltages, or nonshielded circuits at any voltage, belong in their own metal tray compartment or conduit. Thermocouple signals with a common mode of over 30 Vdc are also in this latter category.
Wiring to Galvanically Isolated FTA must be separated from all other wiring. More information can be found in the High-Performance Process Manager Installation, Process Manager I/O Installation, or the TPS System Site Planning manuals.
