IPC707 244-707-000-012 Signal Conditioner

Module Number	IPC707
Order Number	244-707-000-012
Unit Price	$1500
Country Of Origin	Switzerland
Weight	1KG
Certificate	C/O from the Chamber of Commerce C/Q from the Manufacturer
Warranty	12 Months
Inventory Qty	3

IPC707 is a high-performance charge amplifier designed for piezoelectric sensors . Its core function is to convert charge signals into standard current/voltage outputs and integrate real-time diagnosis.

Add to Cart

Submit Inquiry

Description

Payment&Security

Datasheet Download

Description

IPC707 Key parameters

ameter	Specification

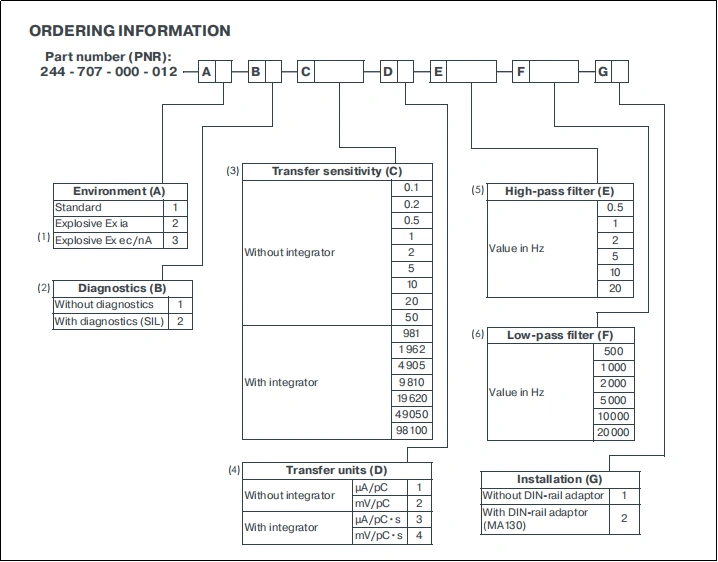

Model	IPC707 244-707-000-012
Input Type	Charge signal from Piezoelectric (PE) sensors (CA/CP Series)
Charge Sensitivity Range	1–1000 pC/unit (configurable)
Frequency Range	0.5 Hz – 20 kHz (±0.5 dB)
Output Options	4–20 mA (2-wire) / 0–10 V (3-wire)
Transfer Function	pC→μA (Current) / pC→mV (Voltage)
Filter Configuration	Independent High/Low-pass (HP: 0.5–500 Hz, LP: 1k–20 kHz)
Optional Integrator	Velocity output conversion
Linearity Error	< ±0.2% FS
Operating Temp.	-40°C to +85°C
Protection Rating	IP40 (Aluminum housing)
Hazardous Area Cert.	ATEX/IECEx Ex ia IIC T6 Gb (Option code A2)
Functional Safety	SIL 2 (IEC 61508), PL c Cat 1 (ISO 13849)
Diagnostics (BITE)	Real-time sensor/cable/unit fault monitoring (DC offset analysis)
Mounting	Screw fixation / DIN rail (adapter required)

Payment&Security

Beneficiary's Bank: CITIBANK N.A.
Beneficiary address:Champion Tower,Three Garden Road,Central,Hong Kong
Beneficiary: Vogi International Trading Co., Limited
Account No.: 395714900
Bank Code: 006 Branch Code: 391
Swift Code:CITIHKHX (CITIHKHXXXX * If 11 characters are required)
Payment Term：T/T

Datasheet Download

DataSheet Download

IPC707 Application Case

Gas turbine power plant in the Middle East
Saudi Arabia's Rabigh III combined cycle power plant deployed IPC707 on 52 Siemens H-class gas turbines, connected to CP210 pressure sensors to monitor combustion instability, and the diagnostic function reduced the probability of false tripping by 90%.
North Sea floating LNG platform
Equinor's Johan Sverdrup oil field uses IPC707 to monitor centrifugal compressor bearing vibration (CA111 sensor), with zero failures in salt spray environment for 10 years and MTBF exceeding 280,000 hours.
North American shale gas compression station
12 sites in the Permian Basin selected the IPC707 +GSI127 solution, the current output mode penetrates the 1 km electromagnetic interference zone, and the data transmission integrity reaches 99.99%.
