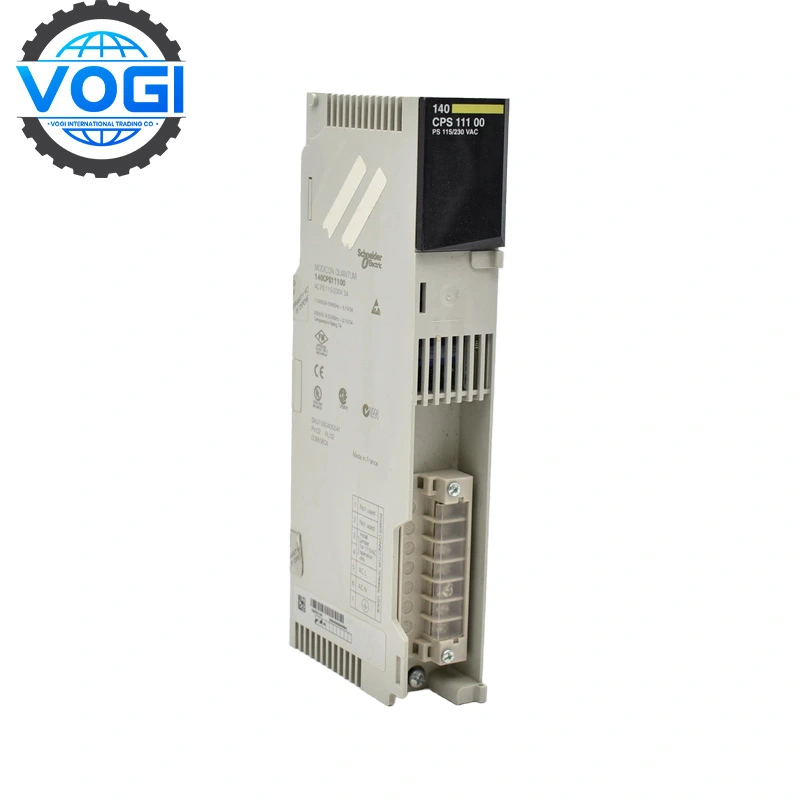

Schneider 140CPS11100 power supply module Modicon Quantum

Main​

Range of Product

Modicon Quantum automation platform

Product or Component Type

Power supply module

Complementary​

Input voltage

120...230 V 100...276 V) AC 47…63 Hz

Input current

200 mA 230 V
400 mA 115 V

Inrush current

10 A 230 V
20 A 115 V

Rated power in VA

50 VA

Associated fuse rating

1.5 A, slow-blow

Harmonic distortion

<= 10 % of fundamental rms value

Output voltage

5.1 V DC

Power supply output current

3 A standalone

Output overvoltage protection

Internal

Output overload protection

Internal

Power dissipation

2 + (3 x Iout) where Iout is in A

Local signalling

for power (PWR OK) 1 LED (green)

Marking

CE

Module format

Standard

Environment​

Standards

UL 508
CSA C22.2 No 142

Product Certifications

cUL
FM Class 1 Division 2

Resistance to electrostatic discharge

4 kV contact IEC 801-2
8 kV on air IEC 801-2

Resistance to electromagnetic fields

9.1 V/m (10 V/m) 80…2000 MHz IEC 801-3

Ambient air temperature for operation

32…140 °F (0…60 °C)
