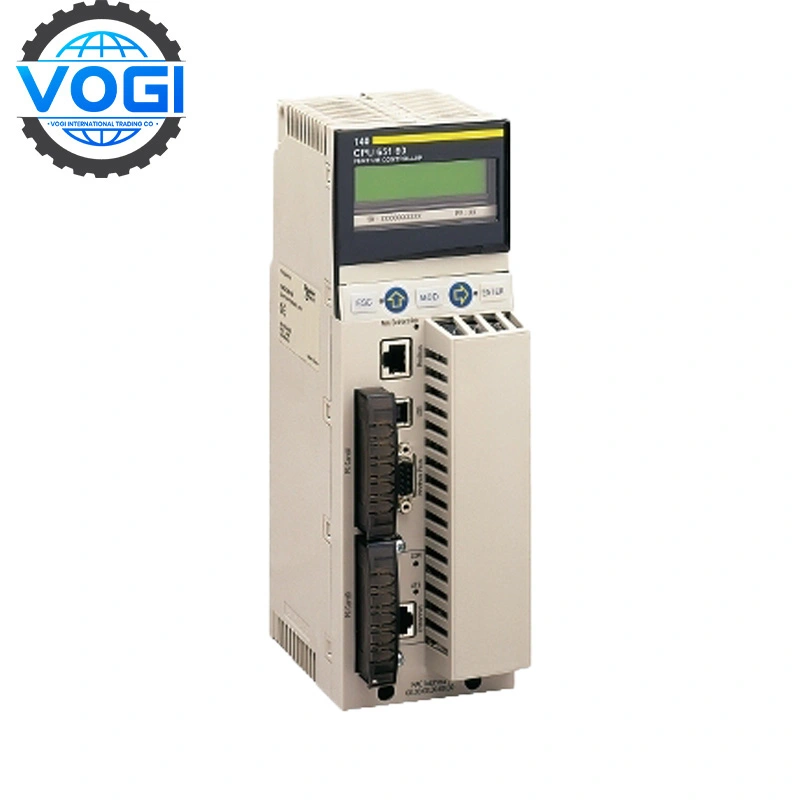

Schneider 140CPU65150 Unity processor Modicon Quantum automation platform

Clock frequency

166 MHz

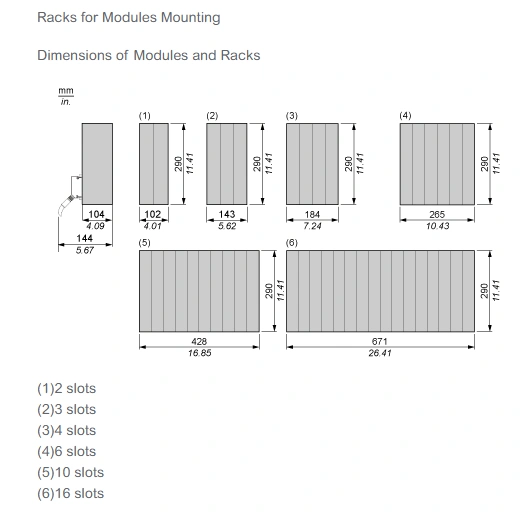

Number of slots

10
16
6
4
2

Number of racks

2 - local rack(s)

Number of distributed I/O station

63 station(s) - 1 rack(s) - 3 Modbus Plus network(s)

Number of remote I/O station

31 - 2 rack(s) per S908 remote I/O
31 - 2 rack(s) per ethernet Quantum remote I/O
16 - 2 rack(s) per ethernet X80 remote I/O

Discrete I/O number

31744 inputs, 31744 outputs - remote
8000 inputs, 8000 outputs - distributed - per network Modbus Plus
Unlimited (26 slots max) - local
Unlimited (31 drops of 28 slots max) - ethernet remote I/O

Analogue I/O number

500 inputs, 500 outputs - distributed - per network Modbus Plus
1984 inputs,1984 outputs - S908 remote I/O
Unlimited (26 slots max) - local
Unlimited (31 drops of 28 slots max) - ethernet remote I/O

Application specific I/O

Accurate time stamping
Serial link
High-speed interrupt inputs
Counter

Communication service

Ethernet router

Number of optional modules

6 (Ethernet, Modbus, Modbus Plus, Profibus DP, Sy/Max)

Maximum number of connections

1 USB
2 AS-Interface - distributed
4 AS-Interface - remote
6 Ethernet TCP/IP - local
6 Modbus Plus - local
6 Profibus DP - local
1 Modbus (RS232/485 Modbus/ASCII)

Integrated connection type

1 Modbus Plus with
1 Ethernet TCP/IP with
1 Modbus with
1 USB with

Checks

Process control

Memory description

Expandable 7168 kB - program with PCMCIA card
Expandable 8 MB - file storage with PCMCIA card
Internal RAM 768 kB

Switch function

Key switch memory port on/off

Application structure

1 cyclic/periodic master task -
1 periodic fast task -
128 I/O interrupt tasks -
128 interrupt tasks -
32 timer interrupt tasks -
4 auxiliary tasks -

Number of instructions per ms

10.28 Kinst/ms 100 % Boolean
10.07 Kinst/ms 65 % Boolean and 35 % numerical

System overhead

0.2 ms for fast task
1 ms for master task

Bus current requirement

2160 mA

Local signalling

1 LED (green) for Ethernet activity (COM)
1 LED (red) for Ethernet collision

Electrical connection

1 female connector, connector type: SUB-D 9 for connecting to the Modbus Plus network
1 connector, connector type: RJ45 for connecting Ethernet network
1 connector, connector type: RJ45 for connecting Modbus bus
