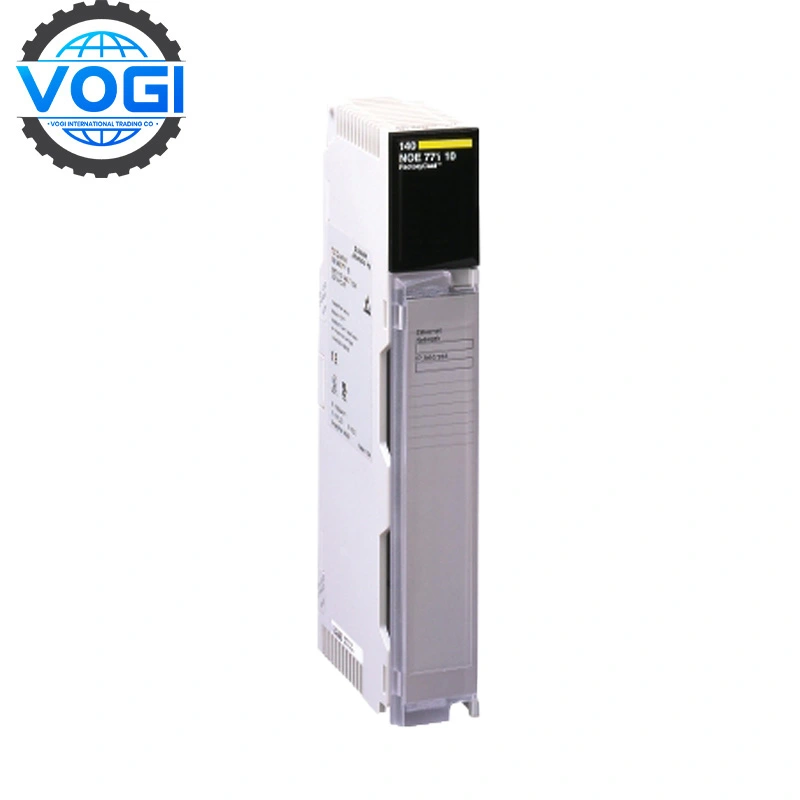

Schneider 140NOE77101 Ethernet network TCP/IP module

Schneider 140NOE77101 Ethernet network TCP/IP module

Brand	Schneider
Module Number	140NOE77101
Price	$ 1200
Weight	0.56KG
Country Of Origin	France
Certificate	C/O from the Chamber of Commerce C/Q from the manufacturer
Warranty	12 Months
Inventory Qty	10

Description

Details

Payment & Security

DataSheet Download

Description

Schneider 140NOE77101Technical specifications

General Specifications
Category	Description
Product Range	Modicon Quantum automation platform
Product Type	Ethernet network TCP/IP module
Concept	Transparent Ready
Web Server	Class B30
Web Services	Diagnostics via predefined web pages Rack viewer Data Editor (via PC terminal)
Communication Services	SNMP network management Bandwidth management Global Data I/O scanning Modbus TCP messaging FDR server
Communication Protocol	Ethernet Modbus TCP/IP
Physical Interface	MT/RJ - 100BASE-FX fiber optic RJ45 - 10BASE-T/100BASE-TX twisted pair
Transmission Rate	10/100 Mbit/s
Complementary
Function	Details
Redundancy Support	Yes, hot standby redundant architecture
Power Supply	Via rack power supply
Certification Mark	CE
LED Indicators	- Data rate (10MB/100MB) - Collision detection (Coll) - Download mode (Kernel) - Ethernet module fault (Fault) - Ethernet network status (RUN) - Full-duplex mode (Fduplex) - Module ready (Ready) - Network active (Link) - Rack operational (Active) - Transmission/reception activity (TxAct/RxAct)
Current Consumption	750 mA @ 5 V DC
Module Format	Standard module
Net Weight	0.761 lb (0.345 kg)
Environmental Parameters
Item	Value
IP Degree of Protection	IP20
Certifications	cUL, UL 508, CSA C22.2 No 142, FM Class 1 Div 2
Electrostatic Discharge Resistance	4 kV contact (IEC 801-2) 8 kV air (IEC 801-2)
Electromagnetic Field Resistance	9.1 V/m (10 V/m) 80–1000 MHz (IEC 801-3)
Operating Temperature	0–60°C (32–140°F)
Storage Temperature	-40–85°C (-40–185°F)
Relative Humidity	95% non-condensing
Maximum Operating Altitude	≤4500 m (14763.78 ft)

Details

Purpose:

Schneider 140NOE77101 is an Ethernet communication module for Schneider Quantum series PLC, used to implement TCP/IP network communication with upper systems in PLC control systems.

Application:

Widely used in oil and gas, chemical, electric power, water treatment, metallurgy, pharmaceuticals, transportation and other industries, especially suitable for industrial environments that require real-time high-speed communication, remote monitoring and system integration.

Payment & Security

Beneficiary's Bank: CITIBANK N.A.
Beneficiary address:Champion Tower,Three Garden Road,Central,Hong Kong
Beneficiary: Vogi International Trading Co., Limited
Account No.: 395714900
Bank Code: 006 Branch Code: 391
Swift Code:CITIHKHX (CITIHKHXXXX * If 11 characters are required)
Payment Term：T/T

DataSheet Download

Schneider 140NOE77101Key features

Multi-protocol support: Supports EtherNet/IP, Modbus TCP, Profinet, MQTT and other protocols. Compatible with Schneider EcoStruxure architecture and third-party devices.

High-speed communication: Gigabit Ethernet interface, supports real-time data transmission. Supports CIP Sync synchronization technology, suitable for motion control scenarios.

Modular design: Compact DIN rail installation, supports hot plugging, easy maintenance and upgrade.

Safety and reliability: Supports port security, ACL access control and DDoS protection.

Expandability: Single module supports 8 independent Ethernet connections. Can run multiple protocols simultaneously.

Typical cooperation cases

Automotive manufacturing: A German automaker uses Schneider 140NOE77101 to connect 500+ robot controllers and achieve real-time synchronization via EtherNet/IP.

Smart building: A commercial complex in Dubai integrates HVAC and security systems through this module, supporting MQTT protocol to upload data to the cloud.

Water treatment: A water plant in Australia uses Schneider 140NOE77101 as a Modbus TCP master to centrally manage 2000+ sensor nodes.
