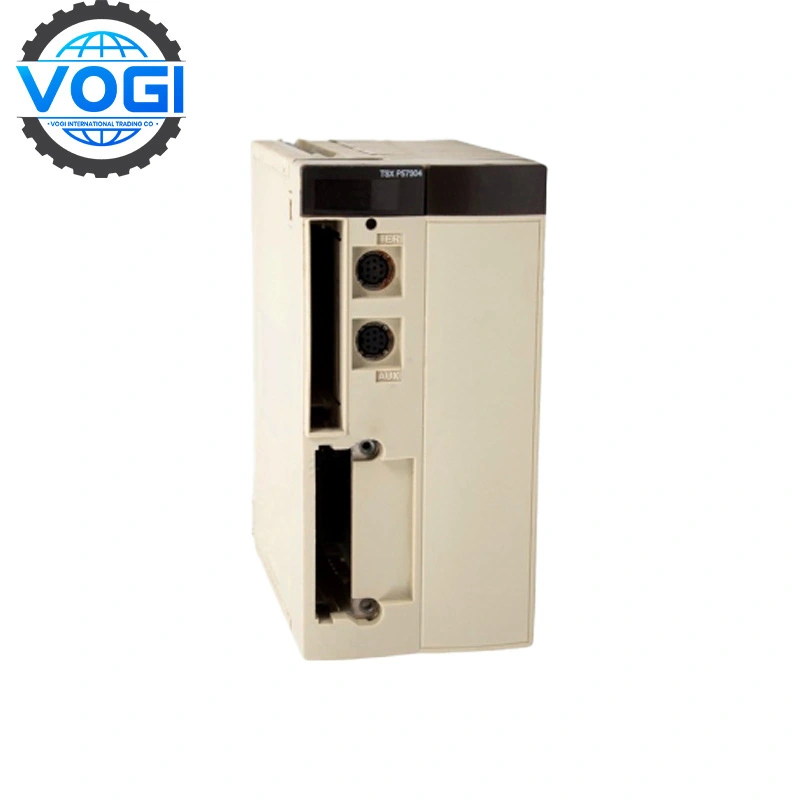

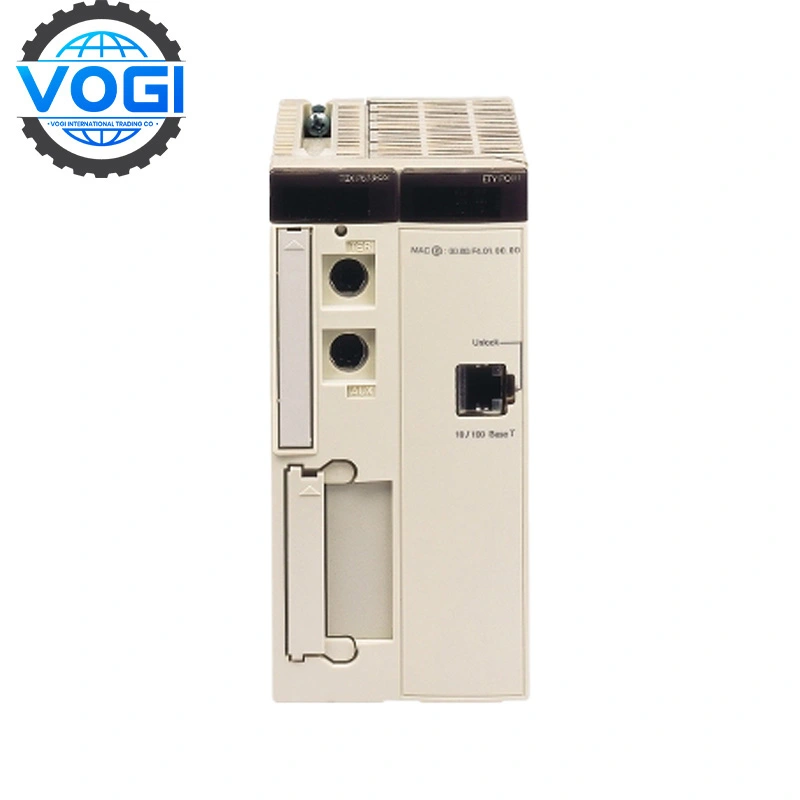

Schneider TSXP57303AM Double format PL7 processor

Main

Range of Product Modicon

Premium Automation platform

Product or Component Type

Double-format PL7 processor

Software Designation

PL7 Junior/Pro

Complementary

Number of racks

16 4/6/8 slots
8 12 slots

Number of slots

128

96

64

Discrete I/O processor capacity

1024 I/O

Addressing Requirement

9 input words

Analogue I/O processor capacity

128 I/O

Number of application specific channel

32

Number of process control channel

15 up to 45 simple loops

Integrated connection type

Non isolated serial link 2 female mini DIN19.2/115 kbit/s)

Communication module processor capacity

2 fieldbus modules (1 if CANopen used)
8 AS-Interface bus modules
1 CANopen
3 network module

Memory description

Internal RAM (with PCMCIA card) 80 Kwords data

Internal RAM (without PCMCIA card) 64 Kwords program and data

PCMCIA card 2688 Kwords additional data storage

PCMCIA card 384 Kwords program

Maximum size of object areas

16384 %Mi located internal bits

30.5 %MWi internal words located internal data

32 %KWi constant words located internal data

Application structure

1 master task

64 event tasks

1 fast task

Execution time per instruction

2.6 µs floating points with PCMCIA card

0.12 µs Boolean without PCMCIA card

0.17 µs Boolean with PCMCIA card

0.17 µs word or fixed-point arithmetic without PCMCIA card

0.33 µs word or fixed-point arithmetic with PCMCIA card

2.5 µs floating points without PCMCIA card

Number of instructions per ms

3.08 Kinst/ms 65 % Boolean + 35 % fixed arithmetic with PCMCIA card

4.49 Kinst/ms 100 % Boolean with PCMCIA card

4.7 Kinst/ms 65 % Boolean + 35 % fixed arithmetic without PCMCIA card

6.57 Kinst/ms 100 % Boolean without PCMCIA card

System overhead

CE

Local signalling

for processor running (RUN) 1 LED (green)

for I/O module or configuration fault (I/O) 1 LED (red)

for processor or system fault (ERR) 1 LED (red)

for activity on the terminal port (TER) 1 LED (yellow)

Current consumption

1000 mA 5 V DC

Environment

Standards

CSA C22.2 No 213 Class I Division 2 Group A

CSA C22.2 No 213 Class I Division 2 Group C

CSA C22.2 No 213 Class I Division 2 Group B
92/31/EEC

IEC 61131-2

93/68/EEC

73/23/EEC

UL 508

89/336/EEC

CSA C22.2 No 213 Class I Division 2 Group D

CSA C22.2 No 142

Ambient air temperature for operation

32…140 °F (0…60 °C)

Ambient Air Temperature for Storage

-13…158 °F (-25…70 °C)

Relative Humidity

10…95 % without condensation for operation

5…95 % without condensation for storage

IP Degree of Protection

IP20
