Siemens 6ES7972-0BA41-0XA0 Simatic DP Bus Connector
| Brand | Siemens |
| Module Number | 6ES7972-0BA41-0XA0 |
| Unit Price | $400 |
| Country Of Origin | Germany |
| Weight | 0.46KG |
| Certificate |
C/O from the Chamber of Commerce C/Q from the Manufacturer |
| Warranty | 12 Months |
| Inventory Qty | 18 |

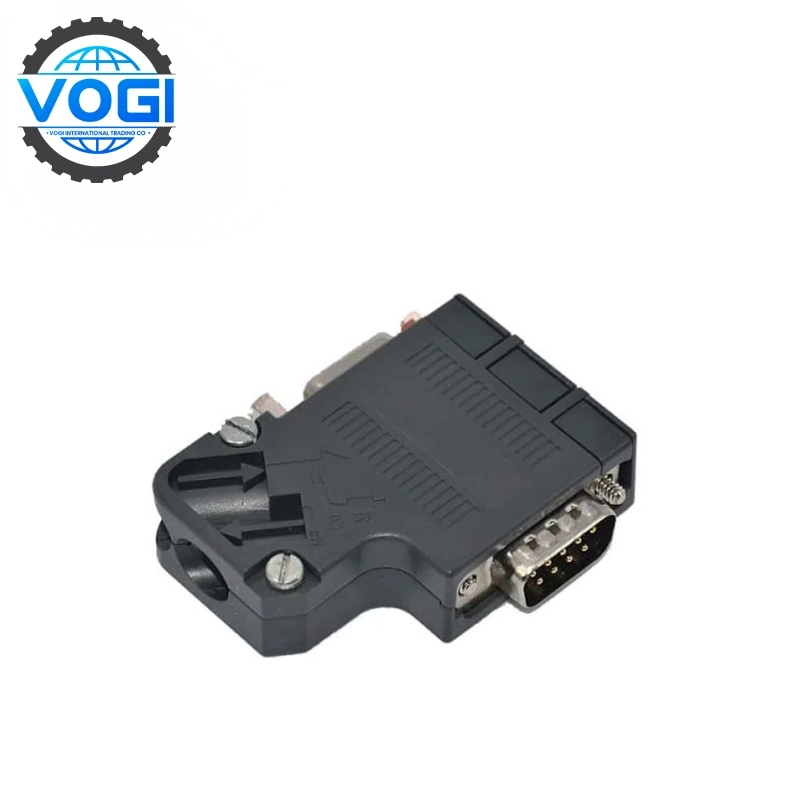

Siemens 6ES7972-0BA41-0XA0 is an RS-485 bus connector for PROFIBUS DP fieldbus system, with tilted interface and integrated terminal resistor, suitable for connection between PLC, remote I/O station and sensor.
Siemens 6ES7972-0BA41-0XA0 Specifications:
|
Item |
Specifications |
|
Part Number |
6ES7972-0BA41-0XA0 |
|
Product Type |
PROFIBUS connector, RS-485, screw, 35° tilted cable outlet, without PG socket |
|
Data Rate |
9.6 kbit/s … 12 Mbit/s |
|
Cable Connections |
2 × PROFIBUS cables (screw terminals)` |
|
Device Connection |
1 × 9‑pin Sub‑D connector |
|
Terminating Resistor |
Integrated with isolating slide switch |
|
Locking Mechanism |
Screw joint |
|
Cable outlet angle |
35° |
|
Enclosure |
Plastic |
Beneficiary's Bank: CITIBANK N.A.
Beneficiary address:Champion Tower,Three Garden Road,Central,Hong Kong
Beneficiary: Vogi International Trading Co., Limited
Account No.: 395714900
Bank Code: 006 Branch Code: 391
Swift Code:CITIHKHX (CITIHKHXXXX * If 11 characters are required)
Payment Term：T/T
Comparison with similar models
|
Feature |
6ES7972-0BA41-0XA0 |
6ES7972-0BA42-0XA0 |
|
Cable Angle |
35° |
90° |
|
PG-socket |
No |
No |
|
Other Features |
Screw RS-485, slide resistor switch |
Update successor, similar technical specs |
Siemens 6ES7972-0BA41-0XA0 Key Features
Reliable Profibus Network Connectivity: Siemens 6ES7972-0BA41-0XA0 serves as a sturdy connector in Profibus networks, ensuring stable data flow between controllers and field devices. A packaging plant in Poland uses it to link 15 conveyor motor drives to a central PLC, even with cable lengths reaching 40 meters. Unlike older connectors that suffered from intermittent signal drops during peak production, this module maintains consistent communication, reducing unplanned stops by 40%.
Compact and Durable Design: With a width of just 22mm, Siemens 6ES7972-0BA41-0XA0 fits easily into tight control cabinets. A food processing facility in Brazil installed it alongside 12 other modules in a 25cm-wide enclosure, avoiding the need for a larger cabinet. Its robust plastic housing resists moisture and dust common in food production areas, outlasting the previous metal connectors that corroded after 6-8 months of use.
