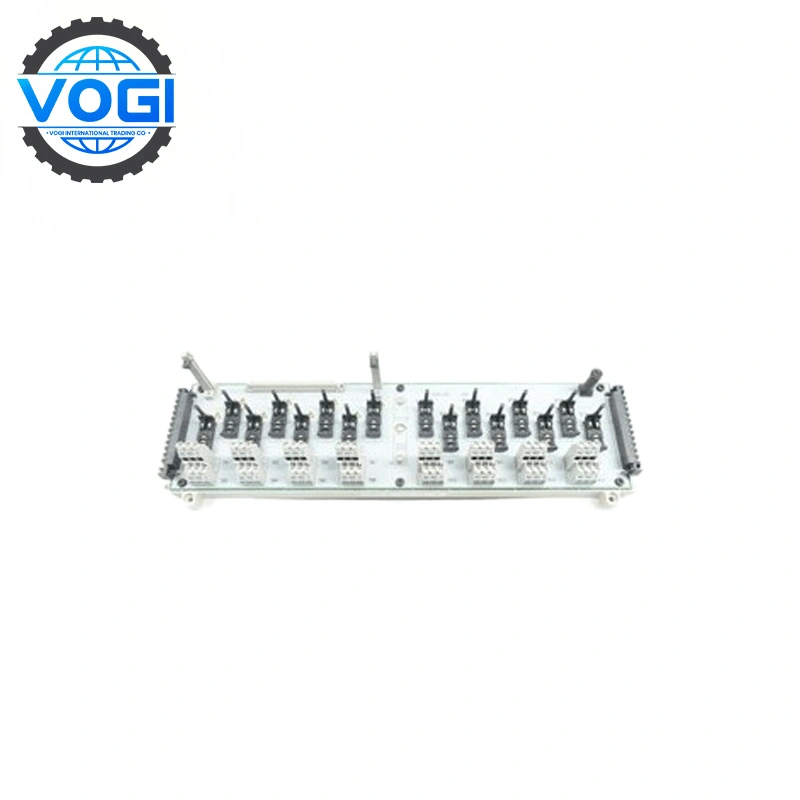

Westinghouse 1C31223G01 Relay Output Panel Base Assembly

Westinghouse 1C31223G01 Relay Output Panel Base Assembly

Brand	Westinghouse
Module Number	1C31223G01
Price	$600
Country Of Origin	United States
Weight	1.5kg
Certificate	C/O from the Chamber of Commerce C/Q from the Manufacturer
Warranty	12 Months
Inventory Qty	5

Description

Payment & Security

Description

Westinghouse 1C31223G01 Key parameters

1C31223G01 is configured with 16 Form C (G2R style) relays which switch high AC and DC voltages at high currents. Each relay contains one Form C contact arrangement which is brought to terminal blocks for user connections

Signal Processing and Accuracy

Input Channels: 8 RTD inputs with configurable wiring for 2-, 3-, or 4-wire RTD sensor connections.

Sampling Rate:

50 Hz mode: 16.67 samples/sec (drops to 3 samples/sec during lead resistance checks).

60 Hz mode: 20 samples/sec (drops to 2 samples/sec during lead resistance checks).

Resolution: 12-bit analog-to-digital conversion for precise temperature measurement.

Accuracy:

Guaranteed ±0.1% to ±0.5% at 25°C, factoring in resistance ratios and voltage offsets.

Temperature drift: ≤10 ppm/°C to maintain stability across operating conditions.

Electrical and Isolation

Dielectric Isolation:

Channel-to-channel: 200V AC/DC.

Channel-to-logic: 1000V AC/DC, ensuring signal integrity in high-noise environments.

Payment & Security

Beneficiary's Bank: CITIBANK N.A.
Beneficiary address:Champion Tower,Three Garden Road,Central,Hong Kong
Beneficiary: Vogi International Trading Co., Limited
Account No.: 395714900
Bank Code: 006 Branch Code: 391
Swift Code:CITIHKHX (CITIHKHXXXX * If 11 characters are required)
Payment Term：T/T

Details

Westinghouse 1C31223G01 Relay Output Panel Base Assembly

Description	Value
Number of relays	16
Relay Type	G2R electromechanical style with 1 Form C contact style
Relay contact ratings	10 amps@250 VAC,PF=1 10 amps @30 VDC
Maximum propagationtime	Operate time:15mSec,bounce approximately=3mSec Release time:10mSec,bounce approximately=8mSec
Dielectric isolation: Relay contacts to logic	2300V AC/DC
Relay base power	Auxiliary power:9.1W typical,11.68 Wmaximum
Auxiliary power supply	25V typical(before output auctioneering diode drop within Ovation auxiliary power supply)25.5Vmaximum@60℃
Operating temperature range	0 to 60℃(32°F to 140°F)
Storage temperature range	-40 to 70℃(-40°F to 158°F)
Humidity(non-condensing)	35-85%
