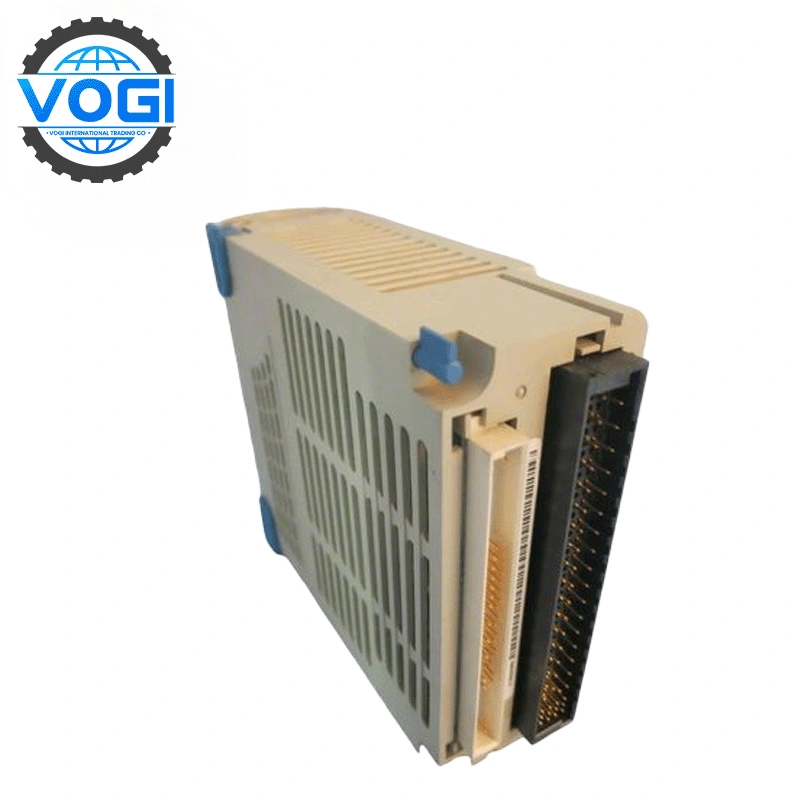

Westinghouse 5X00119G01 Control Module With Multiple Communication Ports

Westinghouse 5X00119G01 Control Module With Multiple Communication Ports

Brand	Westinghouse
Module Number	5X00119G01
Price	$400
Country Of Origin	United States
Weight	0.5kg
Certificate	C/O from the Chamber of Commerce C/Q from the Manufacturer
Warranty	12 Months
Inventory Qty	5

Description

Payment & Security

Description

Westinghouse 5X00119G01 Key parameters

Signal Processing and Accuracy

Input Channels: 8 RTD inputs with configurable wiring for 2-, 3-, or 4-wire RTD sensor connections.

Sampling Rate:

50 Hz mode: 16.67 samples/sec (drops to 3 samples/sec during lead resistance checks).

60 Hz mode: 20 samples/sec (drops to 2 samples/sec during lead resistance checks).

Resolution: 12-bit analog-to-digital conversion for precise temperature measurement.

Accuracy:

Guaranteed ±0.1% to ±0.5% at 25°C, factoring in resistance ratios and voltage offsets.

Temperature drift: ≤10 ppm/°C to maintain stability across operating conditions.

Electrical and Isolation

Dielectric Isolation:

Channel-to-channel: 200V AC/DC.

Channel-to-logic: 1000V AC/DC, ensuring signal integrity in high-noise environments.

Payment & Security

Beneficiary's Bank: CITIBANK N.A.
Beneficiary address:Champion Tower,Three Garden Road,Central,Hong Kong
Beneficiary: Vogi International Trading Co., Limited
Account No.: 395714900
Bank Code: 006 Branch Code: 391
Swift Code:CITIHKHX (CITIHKHXXXX * If 11 characters are required)
Payment Term：T/T

Comparison of Westinghouse 5X00119G01

There is one Electronics module group for the 8 channel RTD Module:

5X00119G01 converts inputs for all ranges and is compatible only with Personality module 5X00121G01 (not applicable for CE Mark certified systems).

Comparison Items	5X00121G01	5X00119G01
Module Type	Personality Module	Electronic Module
Number of channels	8
Sampling rate	50 HZ mode:16.67/sec.normally.In 3 wire mode,lead resistance measurement occurs once every 6.45 sec. during which the rate drops to 3/sec. 60 HZ mode:20/sec.normally.In 3 wire mode,lead resistance measurement occurs once every 6.45 sec. during which the rate drops to 2/sec. Self Calibration Mode:Occurs on demand only.The rate drops to 1/sec.once during each self calibration cycle.
RTD ranges	Refer to Table 19A-3.
Resolution	12 bits
Guaranteedaccuracy(@25℃)	0.10%±[0.045(Rcold/Rspan)%±[((Rcold+Rspan) 4096 OHM)]%±[0.5 OHM/Rspan]%±10μV±1/2LSB where: Rcold and Rspan are in Ohms.
Temperature coefficient	10ppm/°℃
Dielectric isolation: Channel to channel Channel to logic	200V AC/DC 1000VAC/DC
Input impedance	100 M OHM 50 KOHM in power down
Module power	3.6W typical;4.2 W maximum
Operating temperature range	0 to 60℃(32°F to 140°F)
Storage temperature range	-40C to 85℃(-40°F to 185°F)
Humidity (non-condensing)	0 to 95%
Self Calibration	On Demand by Ovation Controller
Common Mode Rejection	120 dB @DC and nominal power line frequency +/-1/2%
Normal Mode Rejection	100 dB@DC and nominal power line frequency +/-1/2%
