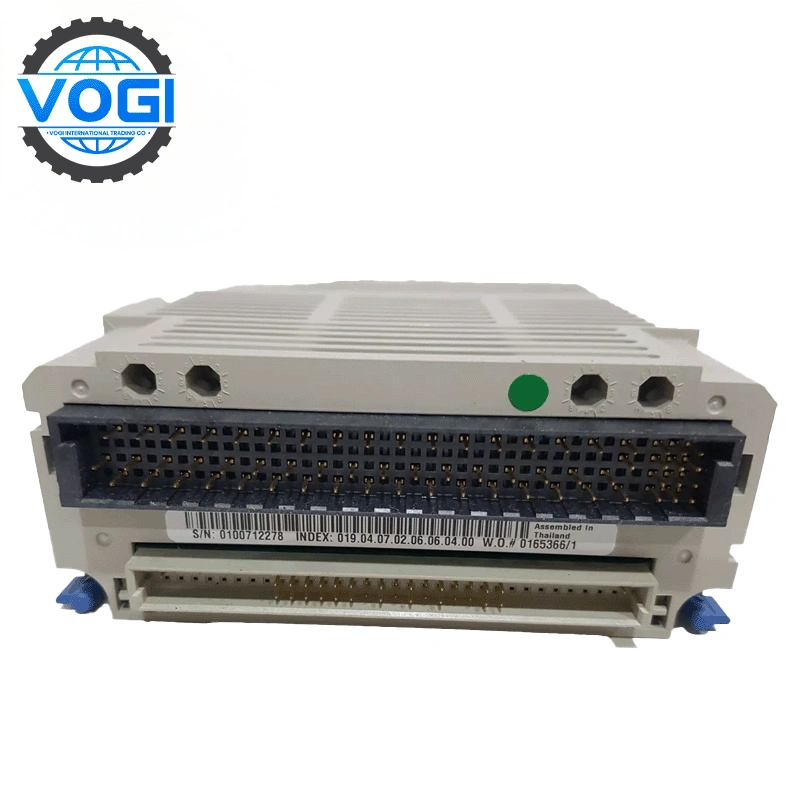

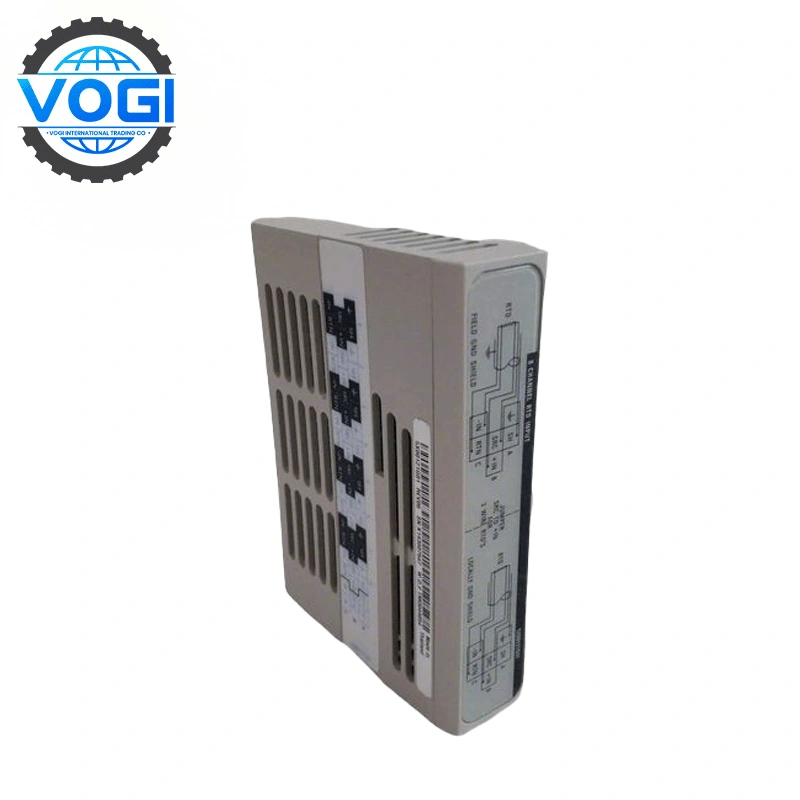

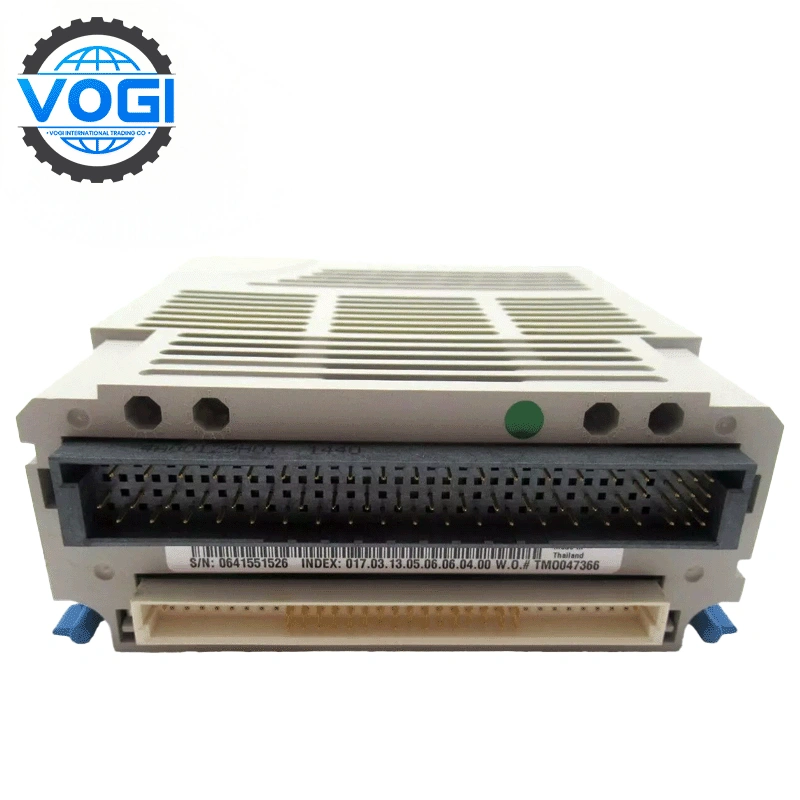

Westinghouse 5X00121G01 Control Module With 8-channel RTD Input

Brand	Westinghouse
Module Number	5X00121G01
Price	$1500
Country Of Origin	United States
Weight	0.4kg
Certificate	C/O from the Chamber of Commerce C/Q from the Manufacturer
Warranty	12 Months
Inventory Qty	5

Description

Payment & Security

Description

Westinghouse 5X00121G01 Key parameters

Input type: 8-channel RTD input module, receiving the resistance signal of the thermal resistance temperature detector (RTD).

Number of channels: 8 channels: can simultaneously collect RTD signals of different positions or types to meet the needs of multi-point temperature monitoring.

Signal range: can accept full range of input signals, can adapt to RTD sensors of different specifications, and has good versatility.

Working temperature range: 0-60 degrees Celsius, or 32-140 degrees Fahrenheit, can work normally under general industrial ambient temperature.

Payment & Security

Beneficiary's Bank: CITIBANK N.A.
Beneficiary address:Champion Tower,Three Garden Road,Central,Hong Kong
Beneficiary: Vogi International Trading Co., Limited
Account No.: 395714900
Bank Code: 006 Branch Code: 391
Swift Code:CITIHKHX (CITIHKHXXXX * If 11 characters are required)
Payment Term：T/T

Comparison of Westinghouse 5X00121G01

There is one Personality module groups for the 8 channel RTD Module:

5X00121G01 converts inputs for all ranges and is compatible only with Electronics module 5X00119G01 (not applicable for CE Mark certified systems).

Comparison Items	5X00121G01	5X00119G01
Module Type	Personality Module	Electronic Module
Number of channels	8
Sampling rate	50 HZ mode:16.67/sec.normally.In 3 wire mode,lead resistance measurement occurs once every 6.45 sec. during which the rate drops to 3/sec. 60 HZ mode:20/sec.normally.In 3 wire mode,lead resistance measurement occurs once every 6.45 sec. during which the rate drops to 2/sec. Self Calibration Mode:Occurs on demand only.The rate drops to 1/sec.once during each self calibration cycle.
RTD ranges	Refer to Table 19A-3.
Resolution	12 bits
Guaranteedaccuracy(@25℃)	0.10%±[0.045(Rcold/Rspan)%±[((Rcold+Rspan) 4096 OHM)]%±[0.5 OHM/Rspan]%±10μV±1/2LSB where: Rcold and Rspan are in Ohms.
Temperature coefficient	10ppm/°℃
Dielectric isolation: Channel to channel Channel to logic	200V AC/DC 1000VAC/DC
Input impedance	100 M OHM 50 KOHM in power down
Module power	3.6W typical;4.2 W maximum
Operating temperature range	0 to 60℃(32°F to 140°F)
Storage temperature range	-40C to 85℃(-40°F to 185°F)
Humidity (non-condensing)	0 to 95%
Self Calibration	On Demand by Ovation Controller
Common Mode Rejection	120 dB @DC and nominal power line frequency +/-1/2%
Normal Mode Rejection	100 dB@DC and nominal power line frequency +/-1/2%
