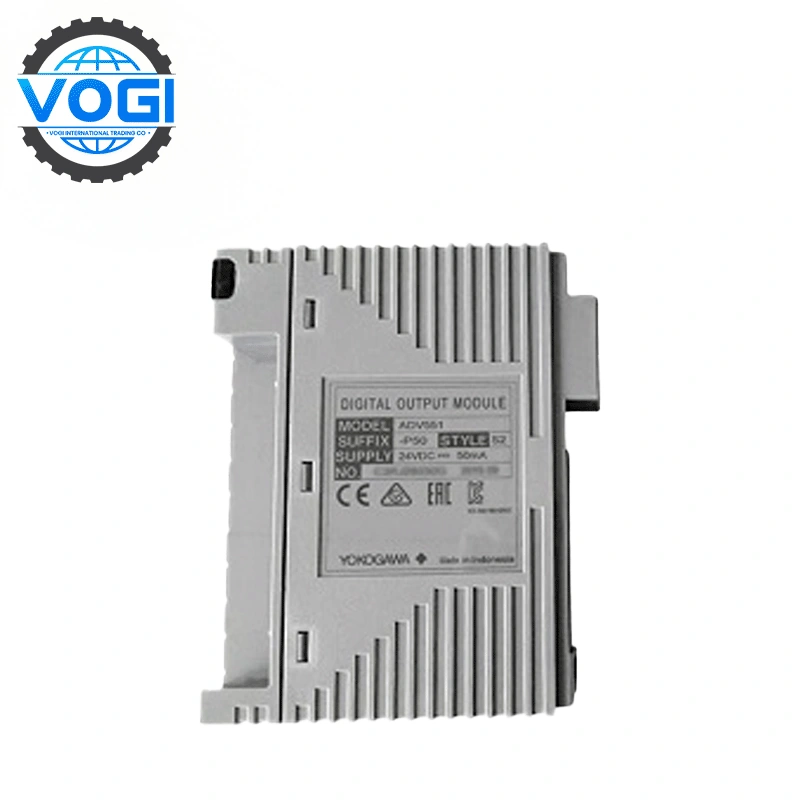

Yokogawa ADV551-P00 Digital Output Module

Brand	Yokogawa
Module Number	ADV551-P00
Price	$200
Weight	4kg
Country Of Origin	Japan
Certificate	C/O from the Chamber of Commerce C/Q from the manufacturer
Warranty	12 Months
Inventory Qty	3

Description

Payment & Security

DataSheet Download

Description

Yokogawa ADV551-P00 Key parameters

Channel Architecture & Signal Handling

Output Channels: 32 isolated digital channels optimized for high-density industrial control systems.

Redundancy Support: Dual-redundant configuration capability with automatic failover (switch time: <100 ms) for mission-critical processes.

Load Tolerance: Drives loads up to 750 Ω per channel, compatible with actuators requiring 24 V DC operation (e.g., solenoid valves, relays).

Circuit Protection: Integrates open-circuit detection (threshold: <0.65 mA) and transient overload tolerance up to 24 mA for spike mitigation.

Electrical Performance

Output Accuracy: ±0.12% FS (±48 μA deviation) at 25°C, with drift limited to ±16 μA per 10°C variation for thermal stability.

Response Time:3 ms for status output updates.10 ms for mixed-status and pulse-width outputs, ensuring synchronization in dynamic control loops.

Power Requirements:24 V DC external supply (range: 20.4–26.4 V DC) with low current draw (50 mA nominal).

Internal consumption: 700 mA at 5 V DC for module logic operations.

Payment & Security

Beneficiary's Bank: CITIBANK N.A.
Beneficiary address:Champion Tower,Three Garden Road,Central,Hong Kong
Beneficiary: Vogi International Trading Co., Limited
Account No.: 395714900
Bank Code: 006 Branch Code: 391
Swift Code:CITIHKHX (CITIHKHXXXX * If 11 characters are required)
Payment Term：T/T

DataSheet Download

一．Compared with Yokogawa ADV551and ADV561

The Digital Output Modules output 32-channel or 64-channel transistor contact signals. The ADV551 and ADV561 can be used in dual redundant configuration.

Item	Specifications
Model	ADV551	ADV561
Number of output channels	32	64
Rated applied voltage	24 V DC	24 V DC
External power supply rating	24 V DC, 50 mA	24 V DC, 100 mA
External power supply voltage range	20.4 to 26.4 V DC	20.4 to 26.4 V DC
Output ON voltage maximum value	2 V DC	2 V DC
Leak current maximum value when output OFF	0.1 mA	0.1 mA
Output format	Current sink	Current sink
Maximum load current	100 mA/channel, 26.4 V	100 mA/channel, 26.4 V
Withstanding voltage	Between output signal and system: 2 kV AC, For 1 minute Between commons: 500 V AC, For 1 minute, common minus side every 16-channel.

Item	Specifications
Model	ADV551	ADV561
Functions Status output Pulse width output Time-proportioning output	ON/OFF status output function One-shot pulse width output function Time-proportioning ON/OFF	ON/OFF status output function One-shot pulse width output function Time-proportioning ON/OFF
Output response time	3 ms or less (for status output) 10 ms or less (for mixed status and pulse outputs)
Pulse width	8 ms to 7200 s
Pulse width resolution	8 ms, but ON/OFF delay of maximum 1 ms is added
Maximum current consumption	700 mA (5 V DC) 60 mA (external power supply)	700 mA (5 V DC) 120 mA (external power supply)
External connection	Pressure clamp terminal, Dedicated cable (AKB331), MIL connector cable	Dedicated cable (AKB337), MIL connector cable
