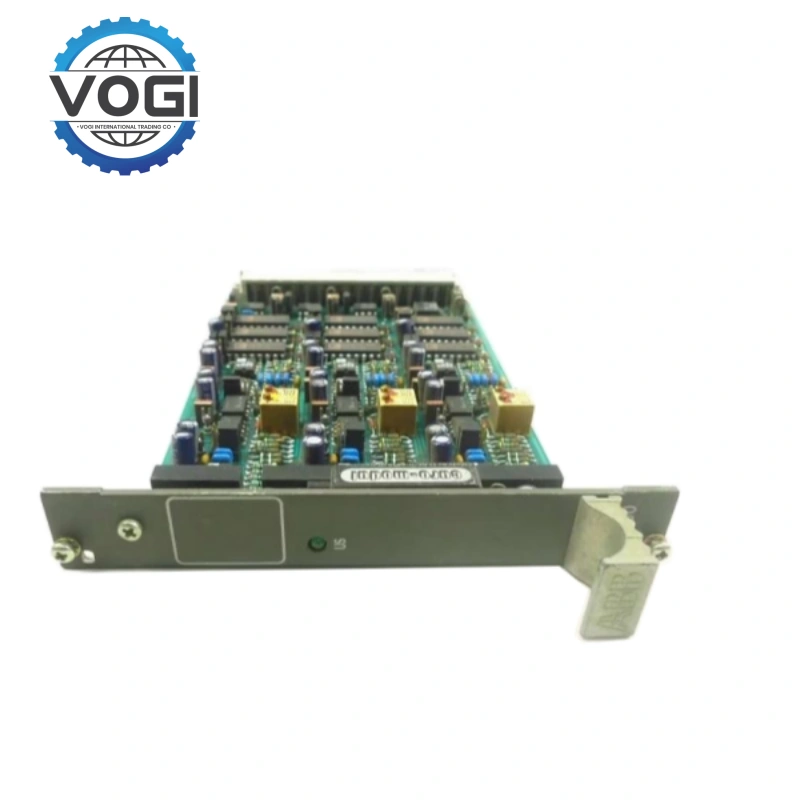

The electrical specifications for the 89AS30 are listed below; adherence to these environmental conditions is essential to ensure normal, stable operation and to maximize the product's service life.

Input signals (jumper-selectable): 4–20 mA, 0–20 mA, 0–10 V DC

Output signals (independent jumpers per channel): 4–20 mA, 0–20 mA, 0–10 V DC

Power supply: 24 V DC (via rack backplane)

Operating current: Approx. 110 mA (excluding output load)

Electrical isolation: Galvanic isolation between field input and internal circuitry

Transmitter power supply: Isolated 15 V/24 V output for powering field transmitters

Operating temperature: 0°C to +55°C (inside the cabinet)

Storage temperature: -40°C to +70°C

Key functions include performing analog multiplication operations (e.g., for flow, power, and energy calculations) and signal distribution (replicating a single input into three isolated outputs for delivery to various controllers or display instruments). It also facilitates conversion between voltage and current signals. Most importantly, it eliminates ground loop interference, thereby protecting DCS backplane circuits.
