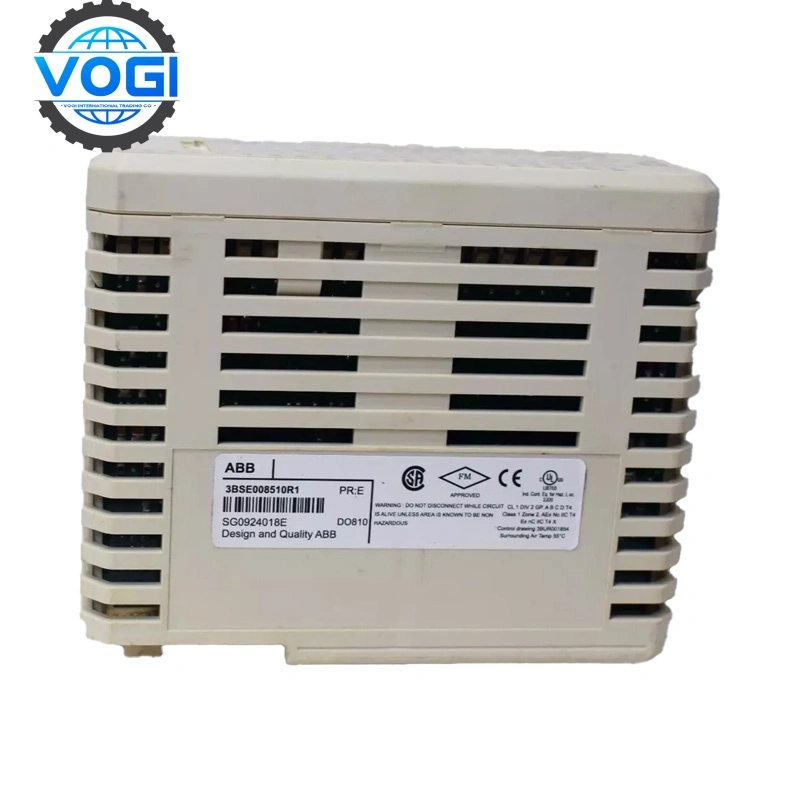

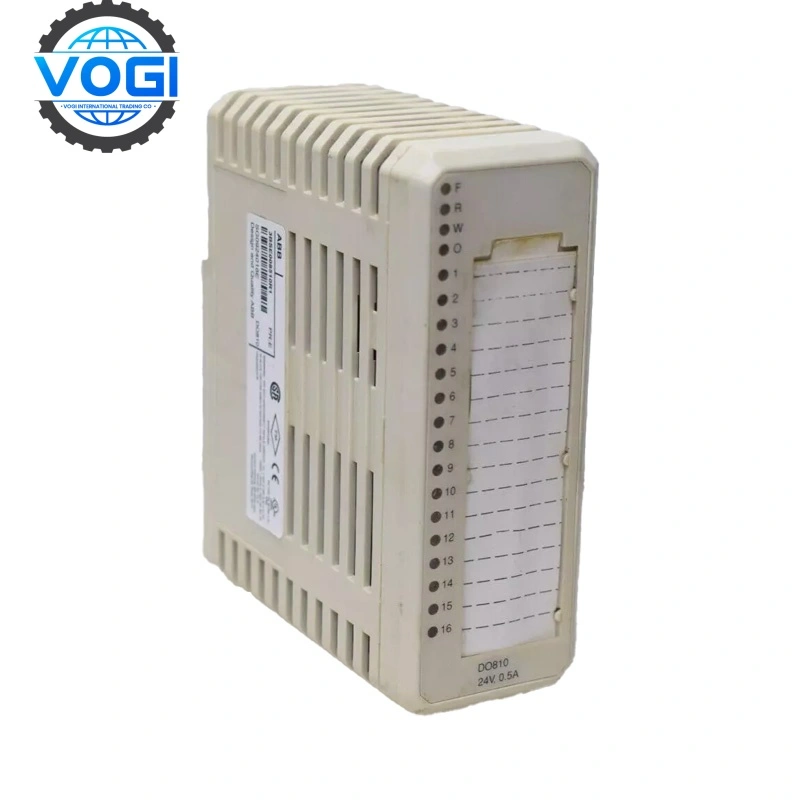

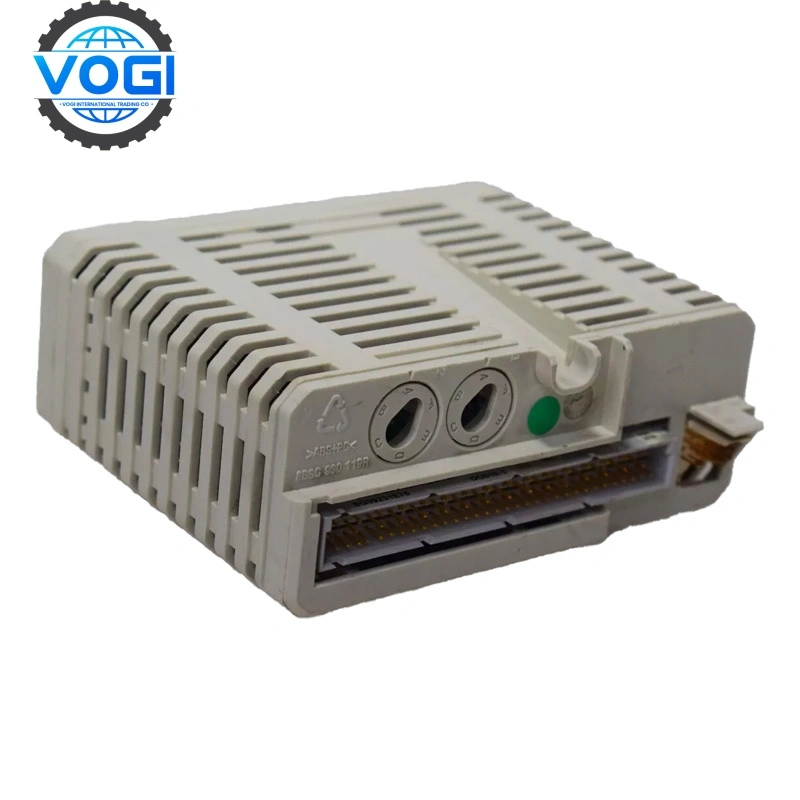

ABB DO810Key features
High-density output: ABB DO810 supports 8 or 16 channels, each channel is independently isolated.
Flexible output type: ABB DO810 supports relay contact or transistor output, suitable for different load types.
Anti-interference design: channel isolation voltage ≥1500V AC, system side isolation complies with IEC 61000 EMC standard.
Fast response: transistor version switching time as low as 0.1ms, suitable for high-frequency control requirements.
Modular expansion: compatible with ABB AC800M controller, supports hot plug and online replacement, reducing downtime.
Diagnosis and protection: with short circuit protection, overload alarm, channel status real-time monitoring function, improve system safety.
System compatibility
ABB Ecosystem Integration:
1) Seamless compatibility with AC800M and AC500 series controllers, and configuration of logic and diagnostic parameters through Automation Builder software.
2) Supports redundant configuration and can be used with CI873 communication interface to realize PROFIBUS DP redundant network.
Third-party system compatibility:
1) Interconnect with Siemens and ABB third-party PLCs through PROFIBUS DP;
2) Support Modbus RTU communication with Schneider, Rockwell and other devices.
Typical cooperation cases
German automobile manufacturing plant: In the BMW production line, ABB DO810 controls the solenoid valve of the robot fixture and achieves millisecond-level synchronous action through PROFIBUS DP.
Canadian water treatment plant: Used for pump station valve control, resistant to high humidity environment, Modbus RTU and SCADA system integration.
