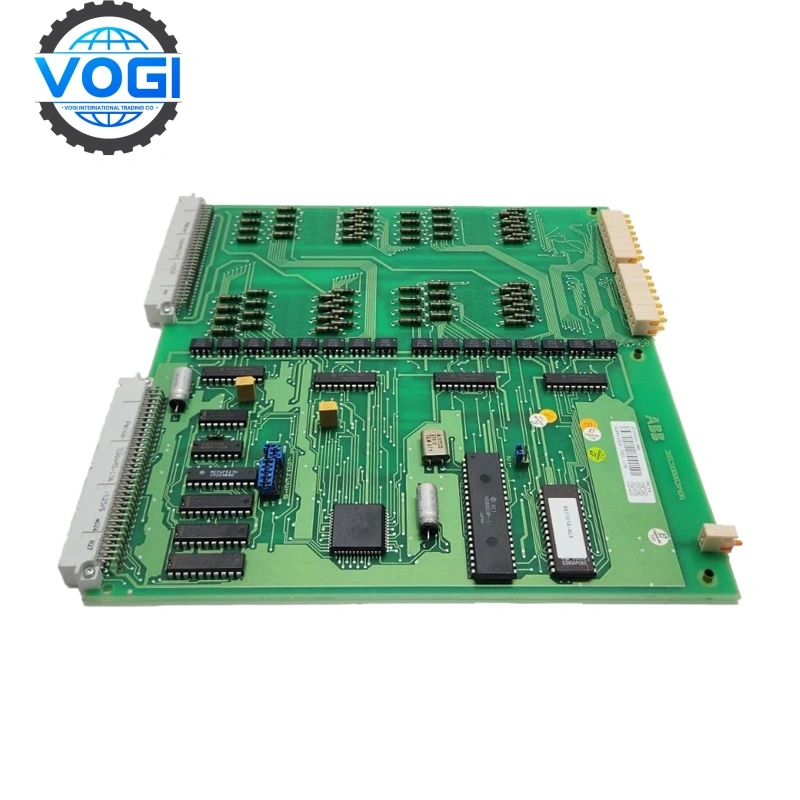

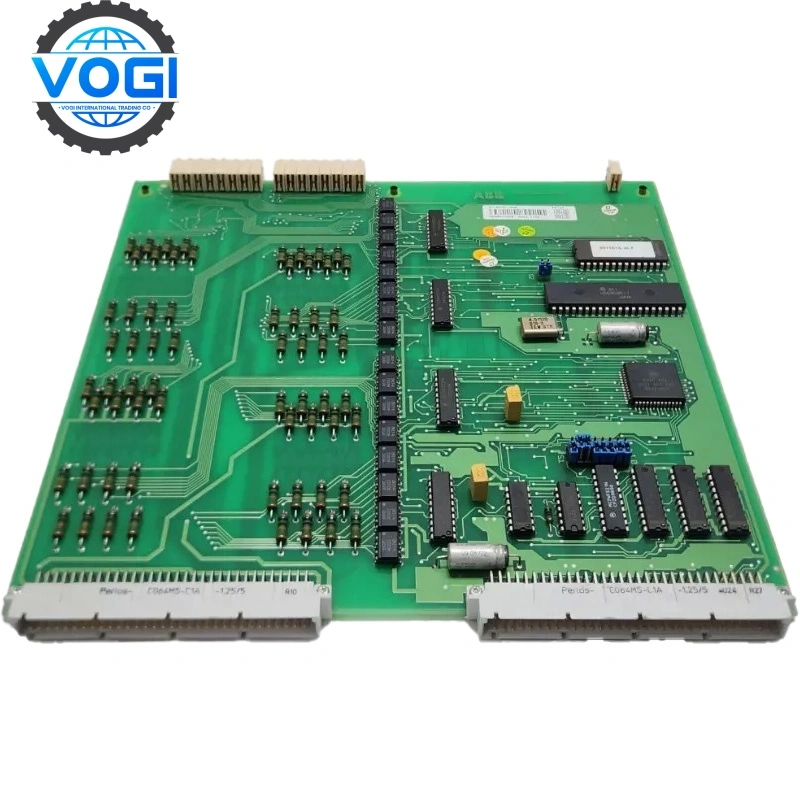

ABB DSDI110A 57160001-AAA Digital Input Board

Brand	ABB
Module Number	DSDI110A
Ordering Number	57160001-AAA
Price	$ 200
Country Of Origin	Sweden
Weight	0.2KG
Certificate	C/O from the Chamber of Commerce C/Q from the Manufacturer
Warranty	12 Months
Inventory Qty	10

Description

Payment & Security

DataSheet Download

Description

ABB DSDI110ATechnical specifications

Input type: Opto-isolated digital input; dry contact/wet contact compatible, input voltage supports 24 V DC, 48 V DC, 110 V AC, 230 V AC/DC

Number of input channels 32 (4 groups, 8 channels per group)

Response time: ≤ 5 ms (at 24 V DC input)

Isolation voltage: between channels: 500 V AC; between systems: 1500 V AC

Communication protocol: Profibus DP-V1, Foundation Fieldbus H1 (optional interface card required)

Power requirement: 24 V DC (±15%), typical power consumption 4 W

Environmental adaptability: operating temperature: -40°C to +70°C; humidity: 5-95%

Certification standards: CE, UL, ATEX (Zone 2), IEC 61131-2, IEC 61508 (SIL2)

Event detection mode: Scan or interrupt control

Input filtering: Built-in filtering function to suppress electrical interference and contact jitter

RoHS directive: Exempt (according to Article 2(4)(c), (e), (f) and (j) of Directive 2011/65/EU)

Applicable system: S100 I/O series of ABB Advant OCS system

Purpose:ABB DSDI110A is a distributed digital input module designed for ABB's S800 I/O system. It is used to collect switch signals such as sensor status, button input, and equipment alarm in a high electromagnetic interference environment.

Applications:Power systems such as substation equipment monitoring, oil and gas such as valve status feedback, metallurgical industry such as high-temperature furnace safety interlocking, and traffic control such as rail signal acquisition support long-distance distributed signal acquisition and high-reliability control.

Payment & Security

Beneficiary's Bank: CITIBANK N.A.
Beneficiary address:Champion Tower,Three Garden Road,Central,Hong Kong
Beneficiary: Vogi International Trading Co., Limited
Account No.: 395714900
Bank Code: 006 Branch Code: 391
Swift Code:CITIHKHX (CITIHKHXXXX * If 11 characters are required)
Payment Term：T/T

DataSheet Download

ABB DSDI110AKey features

Opto-isolation: Each input channel adopts the opto-isolation design to improve the anti-interference ability and safety of the system.

Event detection mode: ABB DSDI110A Supports two event detection modes, scanning and interruption, to meet the response speed requirements of different applications.

Input signal filtering: Built-in input filtering function suppresses electrical interference and contact jitter to improve signal quality.

RoHS Directive Exemption: According to Article 2(4)(c), (e), (f) and (j) of Directive 2011/65/EU, the DSDI 110A module is exempted from the scope of the RoHS Directive.

Typical cooperation cases

The Norwegian North Sea oil field uses ABB DSDI110A to collect the status of valves in explosion-proof areas and transmits it to the central control room via the FF bus.

The German ThyssenKrupp Steel Plant deploys ABB DSDI110A to monitor sensors in high-temperature areas, which can withstand a 70°C environment at the furnace side.

In the Swiss Alps Tunnel Project, ABB DSDI110A connects smoke detectors via Profibus DP to achieve fire early warning.

The Indian National Grid uses ABB DSDI110A to collect the status of high-voltage circuit breakers, meeting the SIL2 safety standard.
