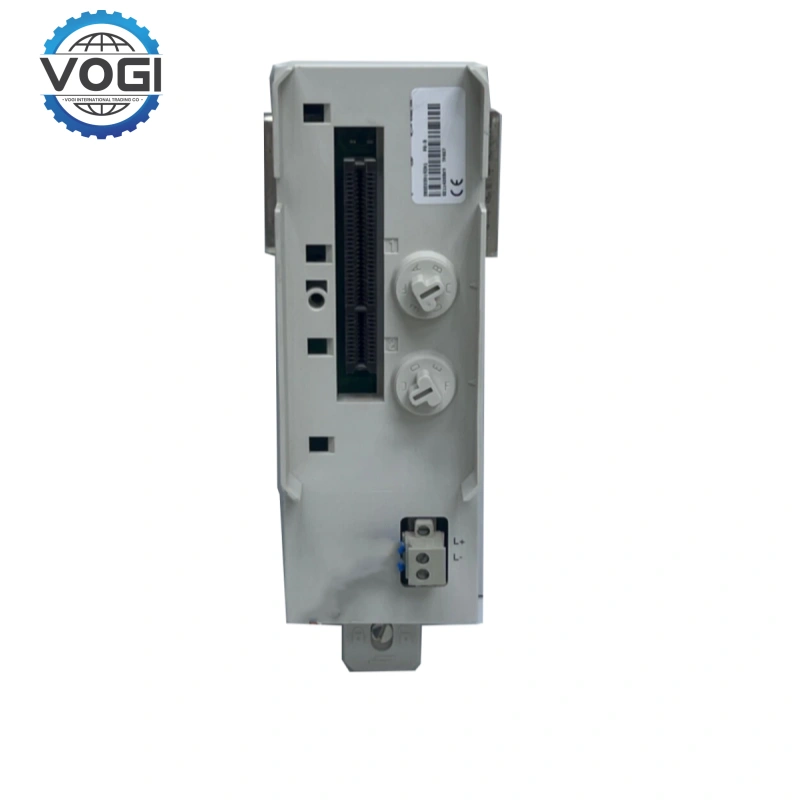

ABB DSTD150A 57160001-UH Connection Unit
| Brand | ABB |
| Module Number | DSTD150A |
| Order Number | 57160001-UH |
| Unit Price | $1500 |
| Country Of Origin | UK |
| Weight | 1KG |
| Certificate |
C/O from the Chamber of Commerce C/Q from the Manufacturer |
| Warranty | 12 Months |
| Inventory Qty | 10 |
The ABB DSTD150A is a high-performance surge protection device (SPD) designed to safeguard electrical systems from transient overvoltages. It is widely used in industrial, commercial, and utility applications, ensuring reliable protection for sensitive equipment and infrastructure.
DSTD150AKey parameters
|
Parameter |
Specification |
|
Model |
DSTD150A |
|
Rated Voltage (Un) |
150V DC |
|
Max Continuous Voltage (Uc) |
150V DC |
|
Nominal Discharge Current (In) |
10kA (8/20μs) |
|
Max Discharge Current (Imax) |
20kA (8/20μs) |
|
Voltage Protection Level (Up) |
≤400V |
|
Response Time |
≤25ns |
|
Operating Temperature |
-40°C to +80°C |
|
Housing Material |
Flame-retardant thermoplastic |
|
Standards Compliance |
IEC 61643-11, UL 1449 |
Beneficiary's Bank: CITIBANK N.A.
Beneficiary address:Champion Tower,Three Garden Road,Central,Hong Kong
Beneficiary: Vogi International Trading Co., Limited
Account No.: 395714900
Bank Code: 006 Branch Code: 391
Swift Code:CITIHKHX (CITIHKHXXXX * If 11 characters are required)
Payment Term：T/T
Key Features
The ABB DSTD150A offers robust surge protection with a fast response time, ensuring minimal downtime for critical systems. Its compact design and high discharge capacity make it ideal for demanding environments. The DSTD150A is engineered for durability, featuring flame-retardant materials and wide-temperature operation.
DSTD150AComparison
Compared to the DSTD100A, the DSTD150A provides higher voltage protection (150V DC vs. 100V DC) and superior surge handling (20kA vs. 15kA). While both models comply with IEC standards, the DSTD150A is better suited for high-voltage DC applications. However, the DSTD100A remains a cost-effective option for lower-voltage systems.
DSTD150Aapplication cases
The ABB DSTD150A is extensively deployed in renewable energy systems, particularly solar farms and wind turbines, where DC surge protection is critical. It is also used in industrial automation, telecommunications, and transportation infrastructure across Europe, North America, and Asia. The DSTD150A’s reliability has made it a preferred choice for engineers addressing transient voltage challenges in harsh environments.
