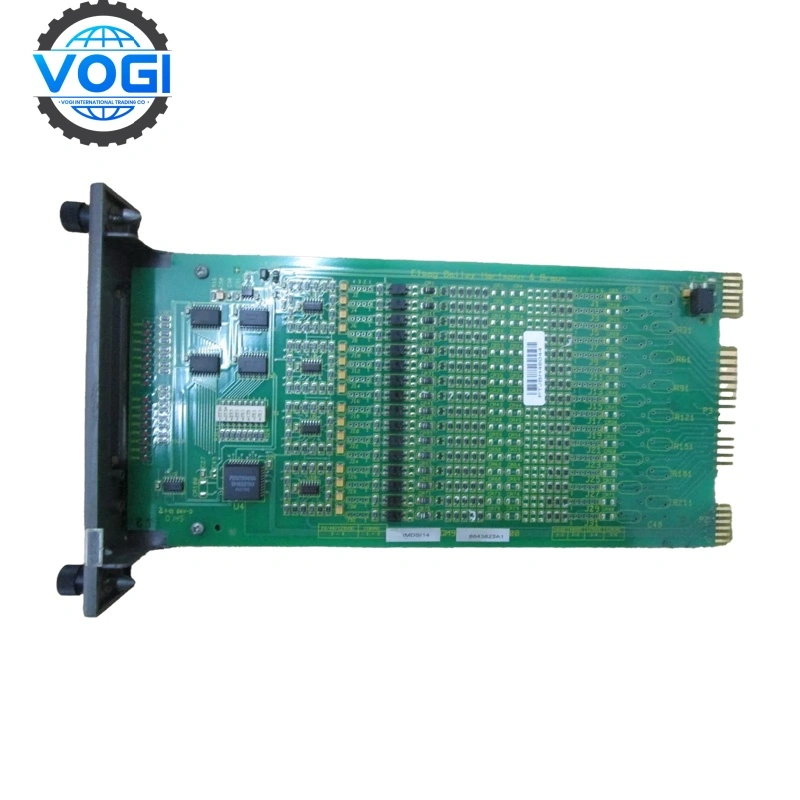

ABB IMDSI14 DIGITAL INPUT MODULE

Brand	ABB
Module Number	IMDSI14
Price	$650
Country Of Origin	Sweden
Weight	0.4kg
Certificate	C/O from the Chamber of Commerce C/Q from the manufacturer
Warranty	12 Months
Inventory Qty	10

Description

Payment & Security

DataSheet Download

Description

ABB IMDSI14Technical specifications

Input Channels: 16 optically isolated digital input channels.

Input Voltage Range: 15–30 VDC, 24 VDC typical.

Input Current: 7 mA per channel typical (@24 VDC).

Input Delay: 10 ms (on/off).

Power Requirements: 5 VDC supplied from backplane, 0.17 W per channel, 2.72 W total.

Power Consumption: 0.17 W per channel, 2.72 W total

Operating Temperature Range: 0 to 55°C

Storage Temperature Range: -40 to 85°C

Relative Humidity: 5% to 95% (noncondensing)

Isolation Voltage: 500 VAC between input and logic.

Mounting: Occupies one slot in standard module mounting unit.

Certifications: Meets IEC 61131-2.

IMDSI14

Purpose:ABB IMDSI14 is used to receive digital signals from field devices such as switches and sensors, and transmit them to the control system for processing. It is suitable for various industrial automation applications.
Applications:ABB IMDSI14is mainly used in discrete manufacturing industries such as automobile assembly lines, packaging machinery, energy and power such as distribution cabinet status monitoring, and infrastructure such as building security and traffic signal control. It is suitable for automation scenarios that require high-speed and high-reliability digital signal acquisition.

Payment & Security

Beneficiary's Bank: CITIBANK N.A.
Beneficiary address:Champion Tower,Three Garden Road,Central,Hong Kong
Beneficiary: Vogi International Trading Co., Limited
Account No.: 395714900
Bank Code: 006 Branch Code: 391
Swift Code:CITIHKHX (CITIHKHXXXX * If 11 characters are required)
Payment Term：T/T

DataSheet Download

ABB IMDSI14Key features

ABB IMDSI14

High-density input: supports 16 digital inputs, and a single module covers signal acquisition of multiple devices.
High-speed response: controllable input filter time, the fastest response time ≤ 1 ms.
Isolation protection: 500 V AC isolation between channels and between channels and systems, anti-electromagnetic interference.
Diagnostic function: channel-level status indication, disconnection detection and power supply monitoring.
Industrial-grade durability: wide operating temperature range, vibration and shock resistance.

Typical cooperation cases

An automobile factory in Detroit, USA, uses ABB IMDSI14 to collect sensor signals (such as door closure detection) from 16 workstations to improve assembly efficiency and quality control.

French power grid company deploys ABB IMDSI14 to monitor circuit breaker status and achieve remote fault warning through optical fiber communication.

Singapore Changi Airport uses ABB IMDSI14 to collect photoelectric sensor signals at high speed to control baggage sorting paths and reduce congestion.

An Italian packaging machine manufacturer uses the isolation characteristics of ABB IMDSI14 to stably detect the status of filling valves in a humid environment.
