ABB IMMFP12 Multifunction Processor Module

Brand	ABB
Module Number	IMMFP12
Price	$1400
Country Of Origin	Sweden
Weight	1.5kg
Certificate	C/O from the Chamber of Commerce C/Q from the manufacturer
Warranty	12 Months
Inventory Qty	10

Description

Payment & Security

DataSheet Download

Description

ABB IMMFP12Technical specifications

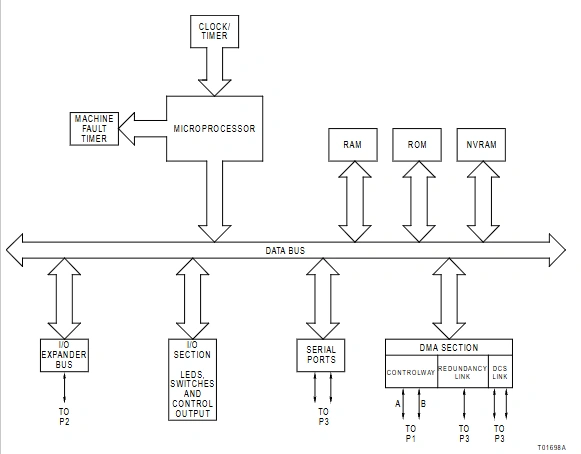

Microprocessor: 32-bit, 16 MHz, 16-bit external bus

Memory: 512 KB ROM, 512 KB RAM, 256 KB NVRAM

Power requirements: +5 VDC, 2 A, typical power consumption 10 W

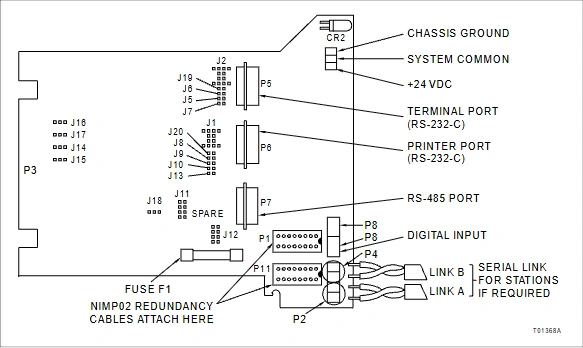

Serial ports: Two RS-232-C ports, or one RS-485 and one RS-232-C port

Communication protocol: PROFIBUS DP-V0/V1 (master mode)

Interface type: 2 x 9-pin Sub-D connector (RS-485)

Data transfer rate: 9.6 kbps to 12 Mbps (auto-sensing)

Communication rate: Up to 19.2 kbaud

Number of stations supported: 64 40-kbaud serial stations (IISAC01), or 8 5-kbaud serial stations (NDCS03 or NDIS01)

Maximum number of slaves: 125

Data capacity: 1000 for each input/output 244 bytes

Redundancy switchover time: ≤ 100 ms

Power requirements: Powered from backplane (5 V DC), typical power consumption 4 W

Redundant communication link rate: 1 Mbaud serial link

Programming languages: C, BASIC, BATCH, ladder diagram, function code, user-defined functions

Mounting: Occupies one slot in INFI 90 OPEN module mounting unit

Operating temperature range: 0°C to 70°C

Relative humidity: 5% to 95% , 5% to 45%

Atmospheric pressure: Sea level to 3 km (1.86 mi)

Air quality: Non-corrosive

Approvals: CSA approved (ordinary locations), Factory Mutual approved (Class I Division 2 hazardous locations)

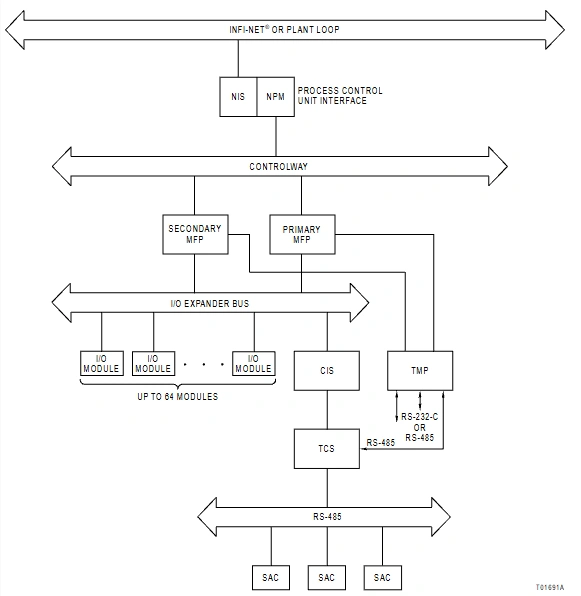

IMMFP12

Purpose:.ABB IMMFP12 is mainly used as a stand-alone controller to execute complex control algorithms, handle data acquisition and communication tasks, and is suitable for applications such as multi-loop simulation, sequence, batch processing and advanced control.
Applications:ABB IMMFP12 Widely used in petroleum, chemical, natural gas, electric power, metallurgy, food and beverage, pharmaceutical, papermaking, textile, automobile, railway and shipbuilding industries.

Payment & Security

Beneficiary's Bank: CITIBANK N.A.
Beneficiary address:Champion Tower,Three Garden Road,Central,Hong Kong
Beneficiary: Vogi International Trading Co., Limited
Account No.: 395714900
Bank Code: 006 Branch Code: 391
Swift Code:CITIHKHX (CITIHKHXXXX * If 11 characters are required)
Payment Term：T/T

DataSheet Download

ABB IMMFP12 Key features

High-performance processor: 32-bit microprocessor, running at a maximum frequency of 16 MHz, with powerful computing power.

Redundant communication link: ABB IMMFP12 Supports 1 Mbaud serial redundant communication link to ensure system reliability and continuity.

Rich programming language support: ABB IMMFP12 Supports C, BASIC, BATCH, ladder diagram, function code and user-defined functions, providing flexible programming options.

Modular design: ABB IMMFP12 Occupies one slot in the INFI 90 OPEN module installation unit, which is convenient for system integration and expansion.

Strong environmental adaptability: Wide operating temperature range, suitable for various industrial environments.

Alternative models

ABB IMMFP12 is a core multifunction processor module within the INFI 90 OPEN control system. Compared to other modules such as the IMFEC12 (analog input module) and IMMPI01 (multifunction processor interface), the IMMFP12 offers significantly enhanced processing performance and more versatile communication capabilities, making it ideal for demanding and mission-critical control applications.

Substitutable Models:

IMMFP11: The immediate predecessor to the IMMFP12. While still in use in some legacy systems, it offers lower processing power and smaller memory capacity. ABB recommends upgrading to IMMFP12 for better performance and maintainability.

IMMFP03: A much older version with limited processing capabilities and communication interfaces. It is generally considered obsolete and is no longer recommended for use in modern control systems.

Comparison of Key Features:

Model	Processing Power	Memory Capacity	Communication Interfaces	Redundancy Support
IMMFP12	High	Large	Rich	Supported
IMMFP11	Medium	Medium	Basic	Not Supported
IMMFP03	Low	Small	Limited	Not Supported

Summary：the IMMFP12 offers a significant upgrade in terms of performance, memory, and integration capability. It is the preferred choice for system modernization and provides improved responsiveness, reliability, and system interoperability.
