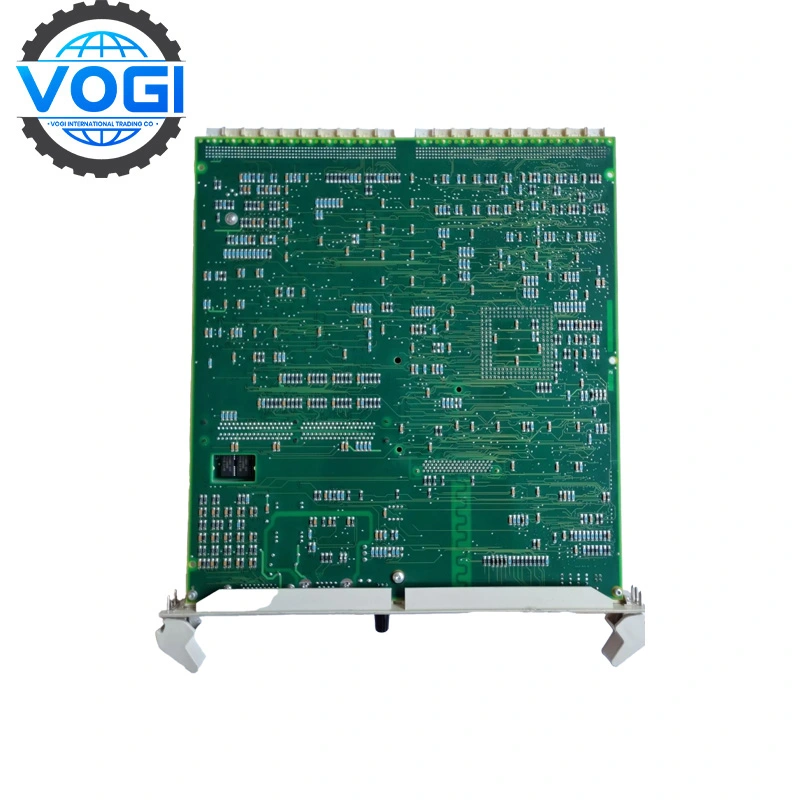

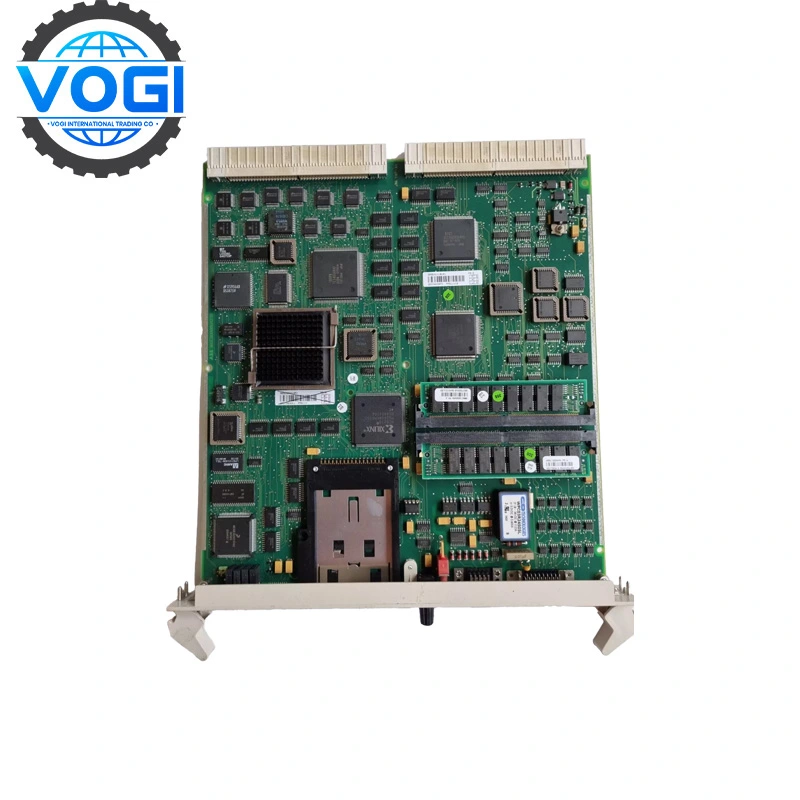

ABB PM511V16 3BSE011181R1 Processor Module

Brand	ABB
Module Number	PM511V16
Ordering Number	3BSE011181R1
Price	$10000
Country Of Origin	Sweden
Weight	0.8kg
Certificate	C/O from the Chamber of Commerce C/Q from the manufacturer
Warranty	12 Months
Inventory Qty	10

Description

Payment & Security

DataSheet Download

Description

ABB PM511V16Technical specifications

Type: Three-phase power monitoring module

Rated voltage: 380V AC (three-phase four-wire)

Current measurement range: 1A/5A (CT secondary input)

Energy accuracy: Class 1 (active energy error ≤1%)

Communication interface: Modbus RTU/TCP, RS485

Additional functions: harmonic analysis (THD), voltage imbalance monitoring

Protection level: IP20

Operating temperature: -10°C ~ +55°C

Processor type: 32-bit microprocessor

Memory capacity: RAM: 512 KB; Flash ROM: 1 MB

Input voltage: 24 VDC

Power consumption: about 10 W

Communication interface: RS-232, RS-485, Ethernet

Programming language: Programming language in accordance with IEC 61131-3 standard

Operating temperature range: -20°C to +60°C

Dimensions: about 20cm × 10cm × 3cm

Certification standard: IEC 61557-12, CE, UL 60950

Mounting method: Modular mounting, suitable for Advant Controller 450 rack

Purpose:.ABB PM511V16 (Order No: 3BSE011181R1) is a high-performance CPU module designed for ABB Advant Controller 450 series control systems. As the core component of the Advant OCS platform, PM511V16 is responsible for executing control programs, managing system resources, and handling communications with I/O modules and upper-level monitoring systems.

Application:Process control: production process control in chemical, petroleum, natural gas, pharmaceutical and other industries.

Power industry: auxiliary system control and water treatment system control of power plants.

Manufacturing industry: control and monitoring of automated production lines.

Water treatment: automated control of sewage treatment and water supply systems.

Payment & Security

Beneficiary's Bank: CITIBANK N.A.
Beneficiary address:Champion Tower,Three Garden Road,Central,Hong Kong
Beneficiary: Vogi International Trading Co., Limited
Account No.: 395714900
Bank Code: 006 Branch Code: 391
Swift Code:CITIHKHX (CITIHKHXXXX * If 11 characters are required)
Payment Term：T/T

DataSheet Download

ABB PM511V16Key features

High-performance processing capability: Equipped with a 32-bit microprocessor, it can quickly execute complex control algorithms and data processing tasks.

Rich communication interfaces: Support RS-232, RS-485 and Ethernet interfaces, which are easy to integrate with various automation equipment and host systems.

Modular design: Adopt modular structure to improve the flexibility of the system.

Industrial-grade reliability: It has good anti-interference ability to ensure stable operation in harsh environments.

Flexible programming support: Support multiple programming languages compliant with IEC 61131-3 standards to simplify the development and debugging process.
