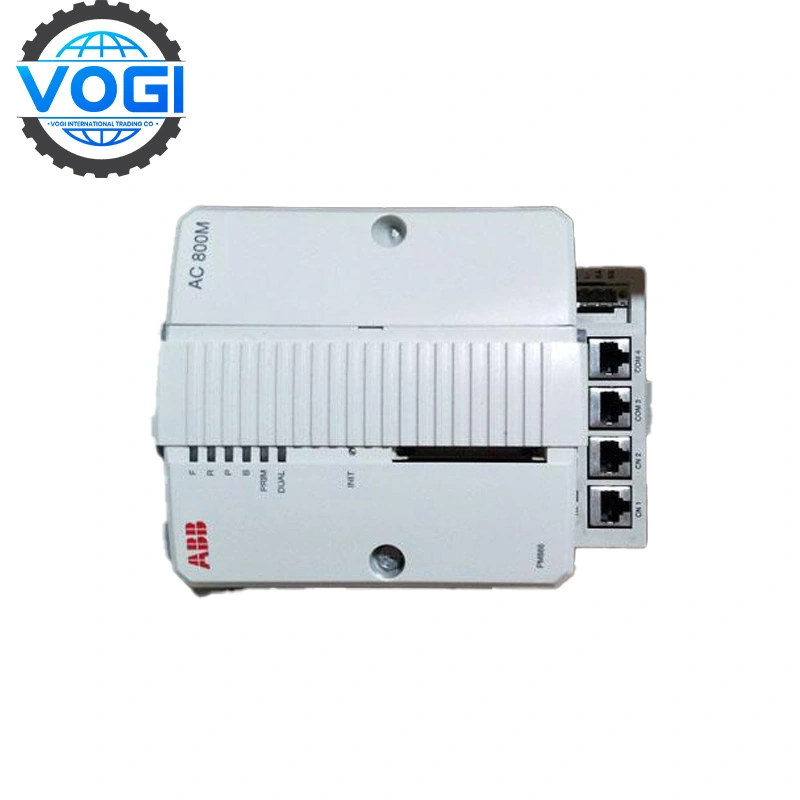

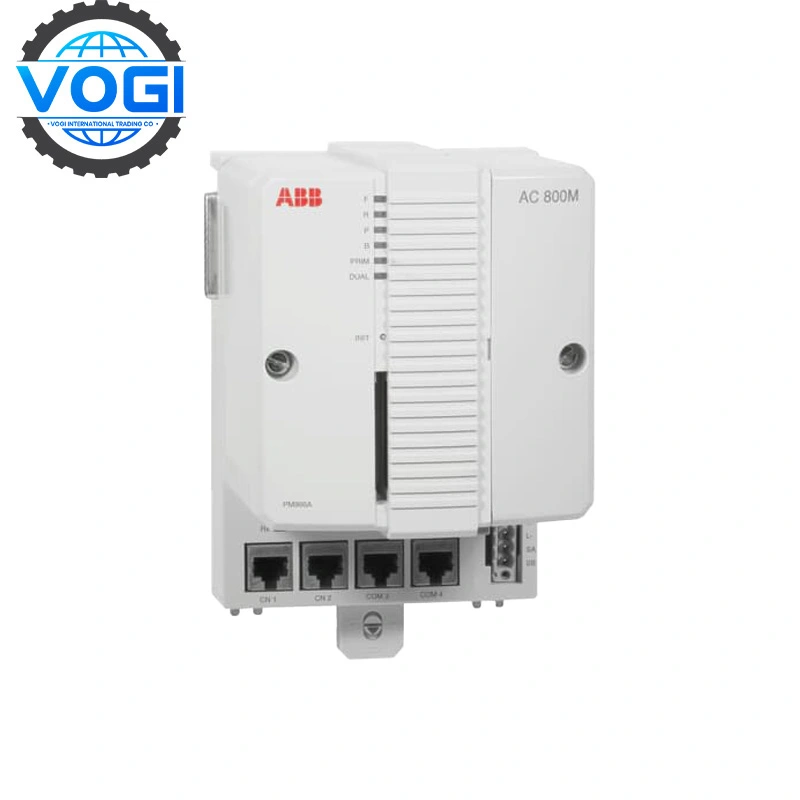

ABB PM866K01 3BSE050198R1 Processor Unit

Brand	ABB
Module Number	PM866K01
Ordering Number	3BSE050198R1
Price	$8500
Country Of Origin	Sweden
Weight	1.5kg
Certificate	C/O from the Chamber of Commerce C/Q from the manufacturer
Warranty	12 Months
Inventory Qty	10

Description

Payment & Security

DataSheet Download

Description

ABB PM866K01Technical specifications

Processor: MPC866 microprocessor, main frequency 133 MHz

Memory: 64 MB RAM, supports internal or external battery backup

Communication interface:

2 Ethernet ports (CN1 and CN2, 10BaseT, IEEE 802.3 standard)

2 serial ports (COM3 and COM4, RS-232C)

Storage expansion: CompactFlash interface, supports storage of application and cold retention data

Power input: 24 V DC (±20%)

Power consumption: typical value 5 W; maximum value 10 W

Protection level: IP20

Certification: Meets the requirements of EMC Directive 89/336/EEC

Rated voltage: AC 690V, 50/60Hz

Rated current: 16A

Number of poles: 1P+N, 3P, 3P+N

Breaking capacity: 6kA (at 230V AC)

Tripping curve: Type B

Mechanical life: 10,000 operations

Electrical life: 10,000 operations

Ambient temperature: -25°C to +55°C

Certification standards: IEC 60947-2, UL 508, CE, RoHS

Purpose: ABB PM866K01 (order number: 3BSE050198R1) is a high-performance processor unit in ABB AC 800M control system, which is widely used in industrial automation, process control, power system and other fields.

Payment & Security

Beneficiary's Bank: CITIBANK N.A.
Beneficiary address:Champion Tower,Three Garden Road,Central,Hong Kong
Beneficiary: Vogi International Trading Co., Limited
Account No.: 395714900
Bank Code: 006 Branch Code: 391
Swift Code:CITIHKHX (CITIHKHXXXX * If 11 characters are required)
Payment Term：T/T

DataSheet Download

ABB PM866K01Key features

High-performance processing capability: suitable for fast execution of complex control logic.

Modular design: easy to install, maintain and expand the system.

Multi-communication protocol support: compatible with Ethernet and serial communication, easy system integration.

Programmable control: supports users to customize programming and algorithm development according to specific needs.

Redundant configuration: supports dual-machine hot backup to improve system reliability and stability.

Alternative models

ABB PM866K01 is basically the same as PM851K01, PM856K01 and PM860K01 in hardware structure and function, the main difference is memory capacity and performance:

PM851K01: 12 MB RAM, suitable for small and medium-sized control systems.

PM856K01: 16 MB RAM, suitable for large and complex control systems.

PM860K01: 16 MB RAM, with higher processing power, suitable for systems with higher performance requirements.

PM866K01: 64 MB RAM, suitable for systems with higher performance and memory requirements.
