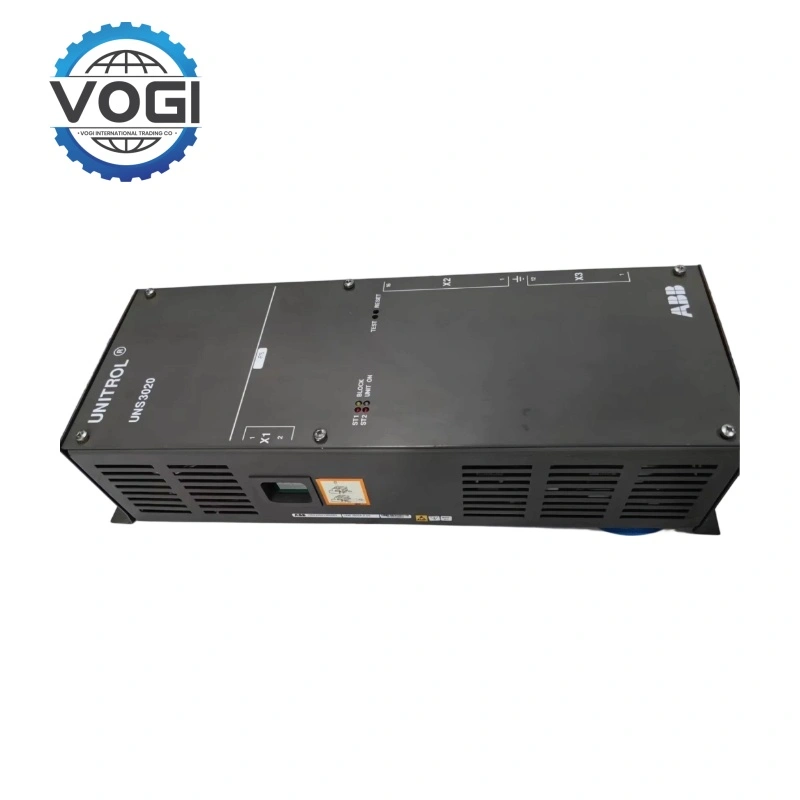

ABB UNS3020A-Z,V3 HIEE205010R003
| Brand | ABB |
| Module Number | UNS3020A-Z,V3 |
| Order Number | HIEE205010R003 |
| Unit price | $1999 |
| Country Of Origin | Sweden and Switzerland |
| Weight | 2.5KG |
| Certificate |
C/O from the Chamber of Commerce C/Q from the manufacturer |
| Warranty | 12 Months |
| Inventory Qty | 3 |
ABB UNS3020A-Z, V3 is Ground Fault Relay, provide insulation protection for the equipment and to safeguard the safety of personnel.
ABB UNS3020A-Z,V3 is used to detect "leakage current, ground short circuit, grounding fault" in the electrical system and to trigger an alarm / trip protection.
What is the working principle of UNS3020A-Z?
The vector sum of three-phase currents is zero.
In the event of a single-phase ground fault, insulation breakdown, line-to-enclosure contact, or leakage—where a portion of the current flows into the earth—the three-phase currents become unbalanced, resulting in the appearance of zero-sequence current. When a UNS3020A-Z Ground Fault Relay detects that this leakage current to ground exceeds a preset threshold, it triggers a fault alarm, actuates the circuit breaker to trip, and cuts off the power supply.
This ensures the fastest possible prevention of electric shock, fire, equipment burnout, and similar hazards.
Account Number 88800006406771
Account name Vogi International Trading Co., Limited
(* If the account name exceeds the available space, please continue in the address field.)
SWITF/BIC Code WIHBHKHHXXX
Bank name OCBC Hong Kong Branch
Bank address 161 Queen's Road Central, Central, Hong Kong
Country/Region Hong Kong (China)
Account type Business Account
Bank code 035
Payment method For the payment of goods, please make a FPS/CHATS/SWIFT Payment
Notes Please include the following memo/message to receiver when making a payment: [Buyer Name] [Invoice/Contract Number] [Product]
What is the difference of Residential RCD and UNS3020A-Z GFR
Comparison Item | Residential RCD | Ground Fault Relay
Voltage | Single-phase 220V | Three-phase 380V and above
Protection Objective | Personal Safety | Equipment / Line Ground Faults
Trip Current | 30mA (High Sensitivity) | 0.5A – Tens of Amperes (Low Sensitivity)
Structure | Integrated Switch Unit (Direct Tripping) | Relay (Signals Circuit Breaker)
Installation | Terminal Sockets / Distribution Boxes | Inside Power Distribution Cabinets
