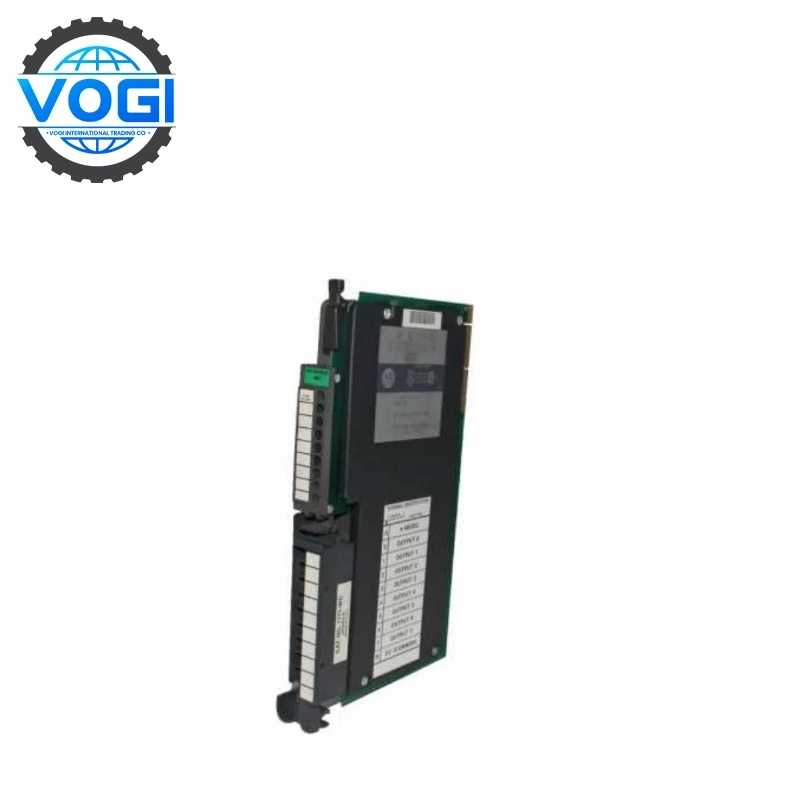

Allen Bradley 1746-NIO4V SLC 500 Analog Combination Module
| Brand | Allen Bradley |
| Module Number | 1746-NIO4V |
| Unit Price | $400 |
| Country Of Origin | USA |
| Weight | 0.3KG |
| Certificate |
C/O from the Chamber of Commerce C/Q from the Manufacturer |
| Warranty | 12 Months |
| Inventory Qty | 10 |
Allen-Bradley 1746-NIO4V SLC 500 Analog Combination I/O Module is an I/O module installed on the 1746 Chassis that has 2 user-selectable (per channel) current or voltage inputs and 2 voltage outputs.
Allen Bradley 1746-NIO4V Specifications:
|
Item |
Specifications |
|
Series |
SLC 500 |
|
No. of inputs |
Two (2) Differential Voltage / Current inputs |
|
Current Input range |
-20 to 20 mA |
|
Current input resolution |
1.22070 µA per LSB |
|
Voltage Input range |
-10 to +10V dc - 1 LSB |
|
Voltage input resolution |
305.176 µV per LSB |
|
Bandwidth |
10 Hertz |
|
Update Time |
512 microseconds |
|
Resolution |
16 bits in, 14 bits out |
|
Step Response |
60 milliseconds in, 2.5 milliseconds out |
Beneficiary's Bank: CITIBANK N.A.
Beneficiary address:Champion Tower,Three Garden Road,Central,Hong Kong
Beneficiary: Vogi International Trading Co., Limited
Account No.: 395714900
Bank Code: 006 Branch Code: 391
Swift Code:CITIHKHX (CITIHKHXXXX * If 11 characters are required)
Payment Term：T/T
Allen Bradley 1746-NIO4V Key Features
Convenient Input and Output: Allen Bradley 1746-NIO4V has 2 analog input channels and 2 analog voltage output channels, thus allowing flexible connection of any types of sensors and actuators.
Signal Noise Reduction: Allen Bradley 1746-NIO4V is a no-noise instrument, which possesses an optical coupling plus a filter circuit that effectively abolishes signal noise from the input signals.
Configurable Inputs: The input channels are compatible with differential voltage and current inputs that are individually configurable, providing flexibility for different application requirements.
Isolation and Protection: Allen Bradley 1746-NIO4V provides 500V backplane field wiring isolation, thus protecting the module from electrical interference and equipment damage.
Typical cooperation cases
Food and Drug industry: Allen Bradley 1746-NIO4V is used to control and monitor processes like mixing, filling, and packaging in beverage production processes. Allen Bradley 1746-NIO4V can ensure precise control of ingredients, the correct filling of machines, and the hygienic conditions in which the product is processed.
Chemical Industry: Allen Bradley 1746-NIO4V has its use in monitoring and controlling chemical reactions, tank levels, and fluid flow rates within chemical manufacturing units.
Power Generation Industry: Allen Bradley 1746-NIO4V is used in tracking the operational parameters of generators and turbines--such as the temperature and operational resonance of whirl--besides other parameters in power generation equipment.
