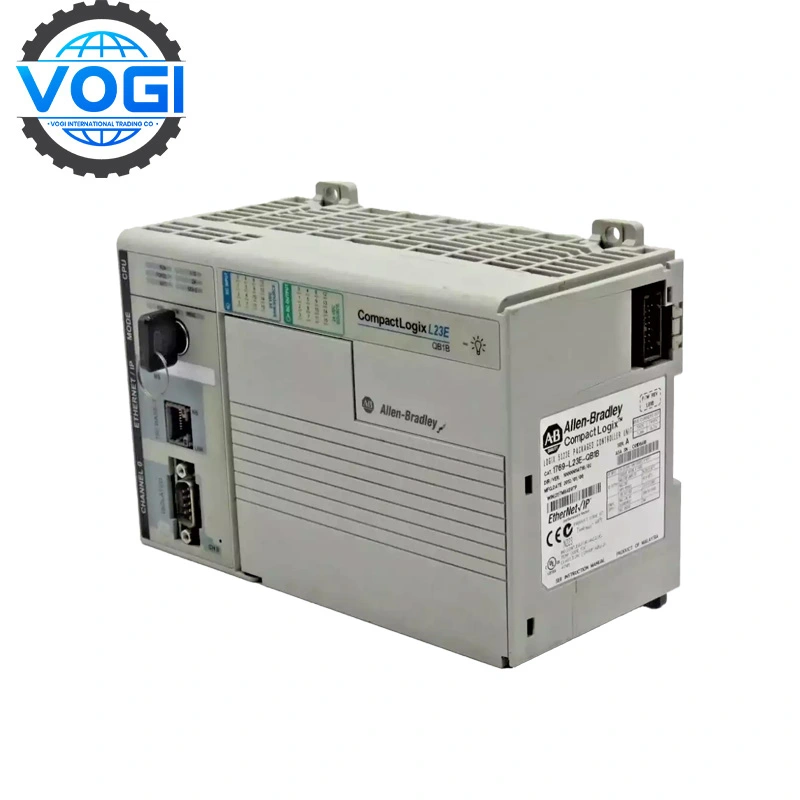

Allen-Bradley 1769-L23E-QBIB CompactLogix Packaged Controller

Allen-Bradley 1769-L23E-QBIB CompactLogix Packaged Controller

Brand	Allen-Bradley
Module Number	1769-L23E-QBIB
Unit Price	$1500
Country Of Origin	USA
Weight	2KG
Certificate	C/O from the Chamber of Commerce C/Q from the Manufacturer
Warranty	12 Months
Inventory Qty	10

Allen Bradley 1769-L23E-QBIB is an entry-level CompactLogix™ PAC designed for small to medium-scale industrial automation.Ideal for small automated systems such as packaging machinery, conveyor controls, material handling line.

Add to Cart

Submit Inquiry

Description

Payment&Security

DataSheet Download

Description

Allen-Bradley 1769-L23E-QBIB Technical specifications

Parameter Category	Specific Indicators
Processor	1.0 GHz Intel® Celeron® (32-bit)
User Memory	2 GB DDR3 RAM (user-accessible); 8 MB non-volatile (Flash)
I/O Capacity	- Base I/O: 16 DI (24V DC), 16 DO (24V DC) - QBIB Expansion: 8 DI (24V DC), 8 DO (24V DC) - Analog I/O: Up to 32 points (via 1769-IF8/IF4 modules)
Communication Interfaces	- 1 × EtherNet/IP™ port (10/100 Mbps, auto-negotiate) - 1 × DF1 serial port (RS-232/RS-485) - 1 × USB 2.0 port - Optional: DeviceNet™, Modbus® RTU adapters
Motion Control	Supports up to 8 axes (EtherNet/IP™ CIP Motion); 1 µs position resolution
Scan Time	Typical: 5–8 ms (varies with program complexity and I/O load)
Power Supply	24V DC (18–32V DC input; 20W max power consumption)
Operating Temperature	-20°C to +60°C (non-condensing)
Storage Temperature	-40°C to +85°C
Mechanical Dimensions	127 mm (height) × 114.3 mm (width) × 127 mm (depth)
Certifications	UL 508, CE, cULus, RoHS, FM Class I Division 2, ATEX Zone 2 (with optional modules)

Payment&Security

Beneficiary's Bank: CITIBANK N.A.
Beneficiary address:Champion Tower,Three Garden Road,Central,Hong Kong
Beneficiary: Vogi International Trading Co., Limited
Account No.: 395714900
Bank Code: 006 Branch Code: 391
Swift Code:CITIHKHX (CITIHKHXXXX * If 11 characters are required)
Payment Term：T/T

DataSheet Download

Allen-Bradley 1769-L23E-QBIB Key features

Compact & Cost-Effective: Space-saving design with integrated I/O and communication ports, reducing wiring complexity.

Quad Bypass I/O: Supports 8 DI and 8 DO points via a removable "quad bypass" block, allowing easy field expansion or reconfiguration without downtime.

Motion Control Ready: Compatible with Kinetix™ VPC servo drives and MPL stepper motors , supporting up to 8 axes of synchronized motion.

Typical cooperation cases

Packaging Machinery: A European food packaging plant uses 1769-L23E-QBIB to control a vertical form-fill-seal machine, with QBIB expansion for additional sensor inputs and EtherNet/IP for HMI integration, reducing setup time by 30%.

Light Manufacturing: A Mexican automotive parts manufacturer uses 1769-L23E-QBIB to coordinate CNC machine tools, with EtherNet/IP CIP Motion for spindle synchronization and Studio 5000 for recipe-based part programming.
