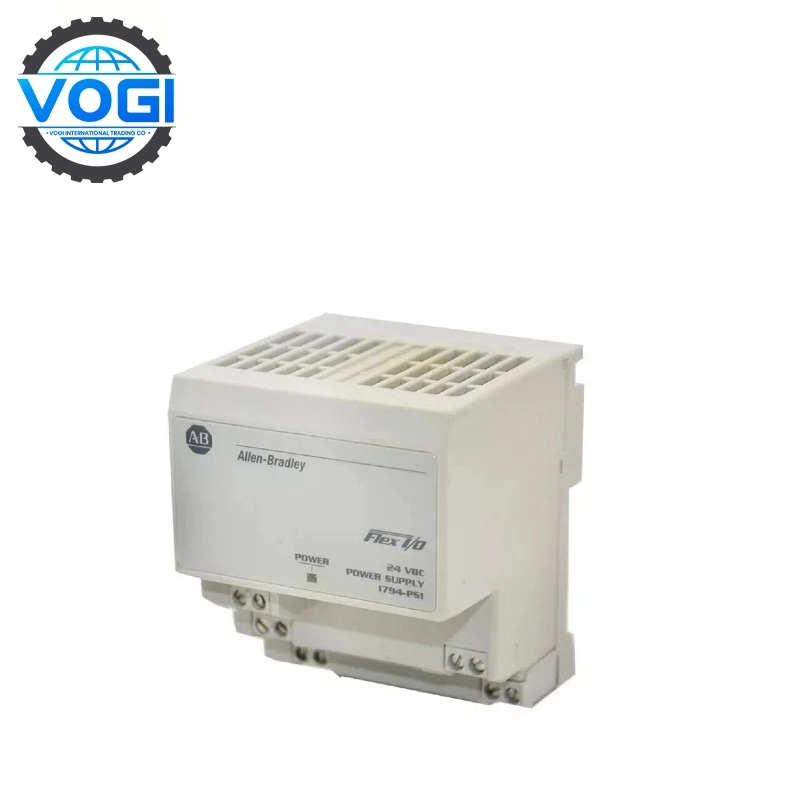

Allen Bradley 1794-PS1 Flex I/O Power Supply Module
| Brand | Allen Bradley |
| Module Number | 1794-PS1 |
| Order Number | 1794-PS1 |
| Unit Price | $100 |
| Country Of Origin | USA |
| Weight | 0.3KG |
| Certificate |
C/O from the Chamber of Commerce C/Q from the Manufacturer |
| Warranty | 12 Months |
| Inventory Qty | 10 |
Allen Bradley 1794-PS1 Flex I/O Power Supply Module is an AC power supply module which supplies 24V DC power to any 3 adapter modules connected to it. It has 120V AC and 230V AC nominal voltage supply at 47-63Hz and it has a range of 85-265V AC.
Allen Bradley 1794-PS1 Specifications:
|
Item |
Specifications |
|
Input Supply Voltage nom. |
230V AC, 47-63Hz, 0.4A max. |
|
Voltage Range |
85-265V AC |
|
Inrush Current |
30A for 1 AC Cycle |
|
Output Voltage nom. |
24V DC |
|
Output Voltage Range |
22.8-25.2V DC |
|
Output Current |
1A max. |
|
Minimum Load |
100mA |
|
Overvoltage Protection |
35V DC |
Beneficiary's Bank: CITIBANK N.A.
Beneficiary address:Champion Tower,Three Garden Road,Central,Hong Kong
Beneficiary: Vogi International Trading Co., Limited
Account No.: 395714900
Bank Code: 006 Branch Code: 391
Swift Code:CITIHKHX (CITIHKHXXXX * If 11 characters are required)
Payment Term：T/T
Allen Bradley 1794-PS1 Key Features
Handling I/O Module Power: The entire function of the Allen Bradley 1794-PS1 is to power the Allen Bradley 1794 I/O modules. This includes the conversion of AC to DC, depending on the appropriate DC level required by the I/O module.
Built-in surge and overvoltage protection: Allen Bradley 1794-PS1 features built-in surge and overvoltage protection. These features protect connected I/O modules and other downstream devices from voltage spikes and surges.
Diagnostic capabilities: Allen Bradley 1794-PS1 can identify problems such as overcurrent, undervoltage, and short circuits. Once a problem is detected, it can send a warning or notification to the control system, allowing for quick troubleshooting and repair.
Typical cooperation cases
Industrial automation system: For example, in automotive manufacturing, it drives the I/O modules that control sensors and actuators on the production line.
Process Control: Allen Bradley 1794-PS1 is commonly used in the chemical and pharmaceutical sectors to power I/O systems that control process variables. It powers temperature, pressure, and flow sensor processing modules.
Material Handling and Logistics: Powers I/O modules in automated material handling equipment in warehouses and distribution centers, including conveyor systems, robotic pickers, and sorters.
