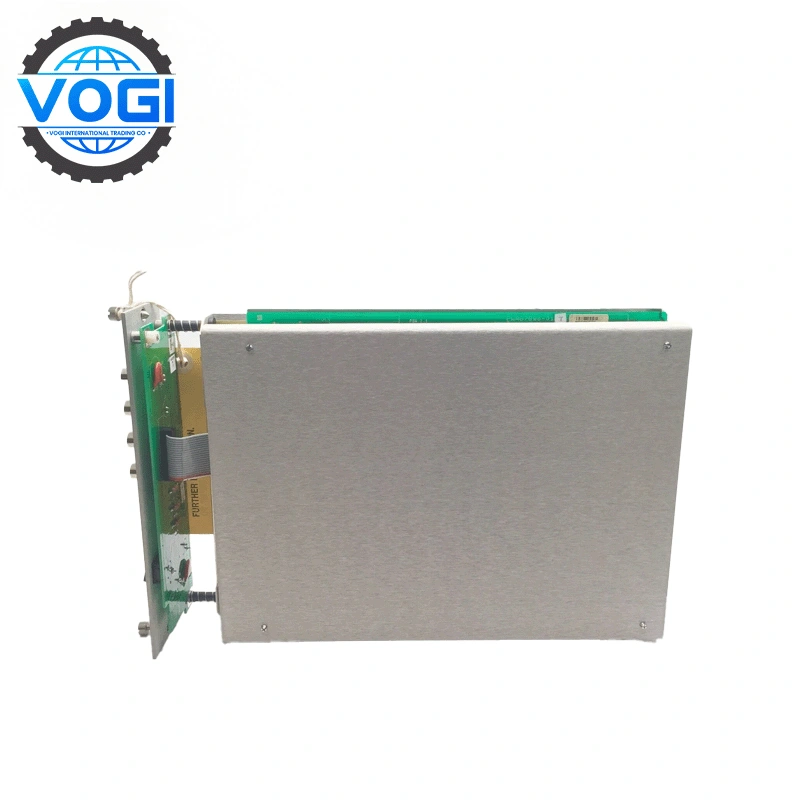

Bently Nevada 3300/03-01-01 System Monitor
| Brand | Bently Nevada |
| Module Number | 3300/03-01-01 |
| Order Number | 3300/03-01-01 |
| Unit Price | $500 |
| Country Of Origin | USA |
| Weight | 0.8kg |
| Certificate |
C/O from the Chamber of Commerce C/Q from the Manufacturer |
| Warranty | 12 Months |
| Inventory Qty | 1 |
Bently Nevada 3300/03-01-01 is an enhanced system monitor module, dedicated to real-time monitoring and protection of multiple parameters such as vibration, displacement, speed, etc. of industrial rotating machinery (such as turbines and compressors). As the core communication hub of the 3300 system.
Bently Nevada 3300/03-01-01 Key parameters
|
Parameter |
Specification |
Conditions |
|
Power Supply |
18–30 Vdc |
Nominal 24 Vdc |
|
Power Consumption |
4.5 W (Typ.), 6 W (Max.) |
At 24 Vdc input |
|
Communication |
SDI/DDI Protocols |
Supports Modbus®, Allen-Bradley DH+ |
|
Keyphasor® Inputs |
2 independent channels |
TTL-level, BNC connectors |
|
Operating Temp. |
-20°C to +70°C |
Humidity ≤95% non-condensing |
|
Vibration Resistance |
5 g peak (10–500 Hz) |
Operational conditions |
|
Certifications |
CE, UL, RoHS |
IEC/EN 61010-1 compliant |
Beneficiary's Bank: CITIBANK N.A.
Beneficiary address:Champion Tower,Three Garden Road,Central,Hong Kong
Beneficiary: Vogi International Trading Co., Limited
Account No.: 395714900
Bank Code: 006 Branch Code: 391
Swift Code:CITIHKHX (CITIHKHXXXX * If 11 characters are required)
Payment Term：T/T
Comparison with similar models and alternatives
|
Model |
Advantages |
Disadvantages |
|
Bently Nevada 3300/03-01-01 |
Dual-protocol support (SDI/DDI); Direct dynamic waveform output |
Limited to 3300 systems; Incompatible with 3500 racks |
|
3300/01-01 (Basic Version) |
Low cost; Meets basic monitoring needs |
No SDI/DDI interfaces; Cannot transmit dynamic data |
|
Alternative: 3500/92 |
Integrated System 1® diagnostics; Supports Ethernet communication |
Requires 3500 rack replacement; Upgrade cost increases by 120% |
|
Alternative: 3701 ADAPT |
Distributed architecture; Wireless vibration data transmission |
Only supports vib/tach; No DE/temp interfaces |
Upgrade suggestion:
The 3300 system has been discontinued, Bently Nevada 3300/03-01-01 can be migrated to 3500/92:
Advantages:Compatible with the original sensor, with new real-time spectrum analysis and predictive maintenance functions;
Disadvantages:The rack and backplane need to be replaced, and the transformation cycle is 4-6 weeks.
