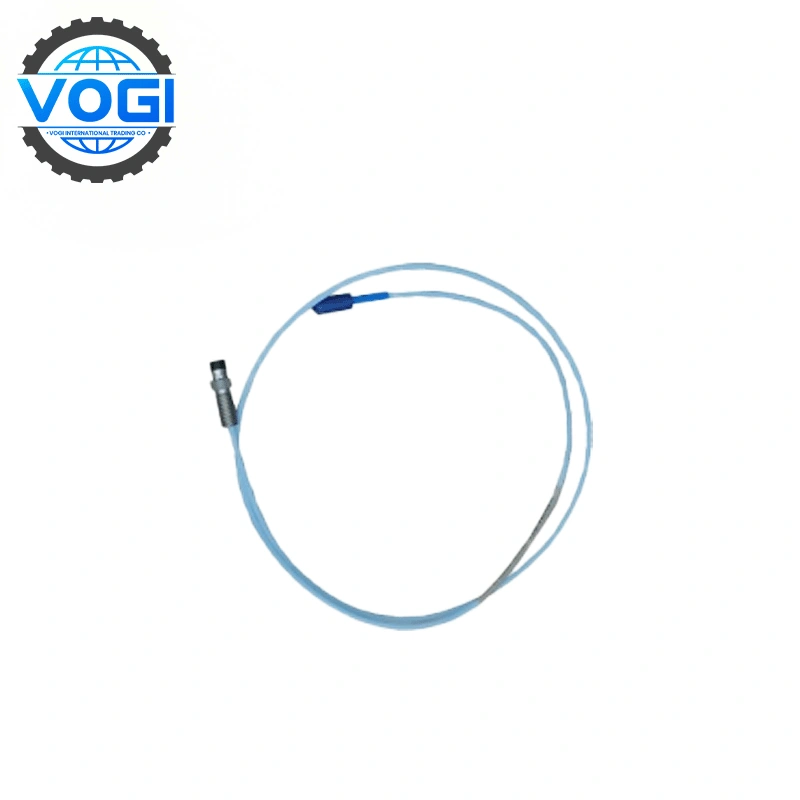

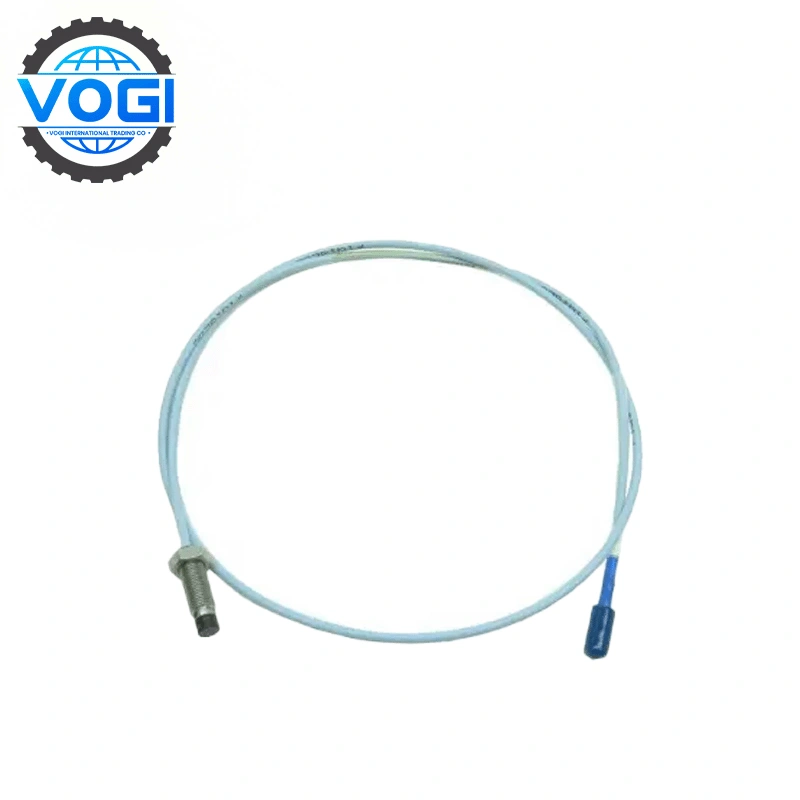

Bently Nevada 330101-00-18-10-02-05 8mm Proximity Probes

Bently Nevada 330101-00-18-10-02-05 8mm Proximity Probes

Brand	Bently Nevada
Module Number	330101-00-18-10-02-05 330101-00-12-05-02-00 330101-00-54-10-02-00 330101-00-58-10-02-00
Ordering Number	176449-01 140734-01
Price	$600
Country Of Origin	USA
Weight	0.35kg
Certificate	C/O from the Chamber of Commerce C/Q from the manufacturer
Warranty	12 Months
Inventory Qty	2

Add to Cart

Submit Inquiry

Description

Payment & Security

Datasheet Download

Description

Bently Nevada 330101-00-18-10-02-05 Key parameters

Physical Configuration

Probe Diameter: 8 mm .

Case Length: 100 mm .

Cable Length: 10 meters .

Threading: Unthreaded barrel, suitable for direct press-fit or clamp mounting .

Connector & Sealing

Connector Type: Gold-plated ClickLoc miniature coaxial connector. featuring tool-free finger-tightened installation and a positive-lock "click" mechanism .

Environmental Protection: Includes a factory-fitted Viton O-ring for moisture/dust resistance. Optional connector protectors recommended for humid or oily environments .

Electrical & Performance

Output Signal: Generates voltage proportional to gap distance, supporting static position and dynamic vibration measurements .

Linear Range: 2 mm (80 mils) for standard systems, with best-fit straight-line deviation within ±38 µm (±1.5 mil) .

Scale Factor: 7.87 mV/µm (200 mV/mil) ±6.5% across the linear range .

Resistance: Probe DC resistance ~7.59 Ω ±0.5 Ω .

Payment & Security

Beneficiary's Bank: CITIBANK N.A.
Beneficiary address:Champion Tower,Three Garden Road,Central,Hong Kong
Beneficiary: Vogi International Trading Co., Limited
Account No.: 395714900
Bank Code: 006 Branch Code: 391
Swift Code:CITIHKHX (CITIHKHXXXX * If 11 characters are required)
Payment Term：T/T

Datasheet Download

DataSheet Download

Model Selection

330103 3300 XL 8mm Probe, M10 x 1 thread, with armor

330103-AA-BB-CC-DD-EE
AA: Unthreaded Length Option
BB: Overall Case Length Option
CC: Total Length Option
05	0.5 meters (1.6 feet)	20	2.0 meters (6.6 feet)
10	1.0 meters (3.3 feet)	50	5.0 meters (16.4 feet)
15	1.5 meters (4.9 feet)	90	9.0 meters (29.5 feet)
DD: Connector and Cable-Type Option
01	Miniature coaxial ClickLoc connector with connector protector, standard cable	11	Miniature coaxial ClickLoc connector with connector protector, FluidLoc cable
02	Miniature coaxial ClickLoc connector, standard cable	12	Miniature coaxial ClickLoc connector, FluidLoc cable
EE: Agency Approval Option
00	Not required	05	CSA, ATEX, IECEx Approvals

Bently Nevada 330101-00-18-10-02-05 Required Associated Equipment

Signal Conditioner: Must pair with a 3300 XL Proximitor Sensor (e.g., 330180 series) for RFI/EMI filtering, signal linearization, and power supply regulation (-17.5 Vdc to -26 Vdc) .

Cabling Solutions: Compatible with standard or FluidLoc® extension cables for oil-sealed applications; connector protectors are advised for wet/humid installations to prevent moisture ingress .

System Integration: Functions within the 3300 XL 8 mm Transducer System. Optimal performance requires matching XL-series components (e.g., cables, sensors); mixing with non-XL parts defaults to legacy specs .
