Model Selection

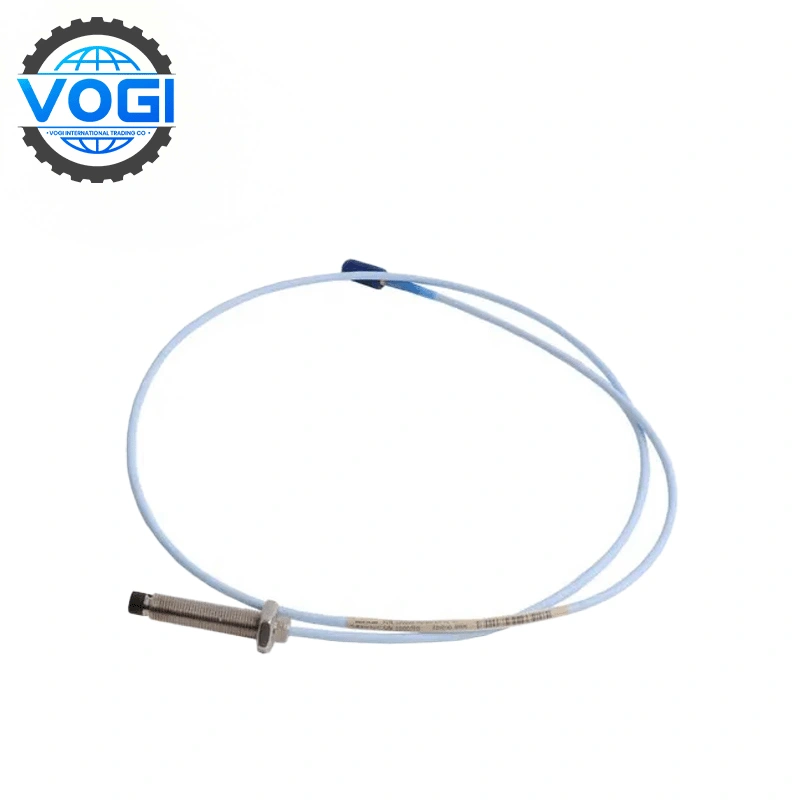

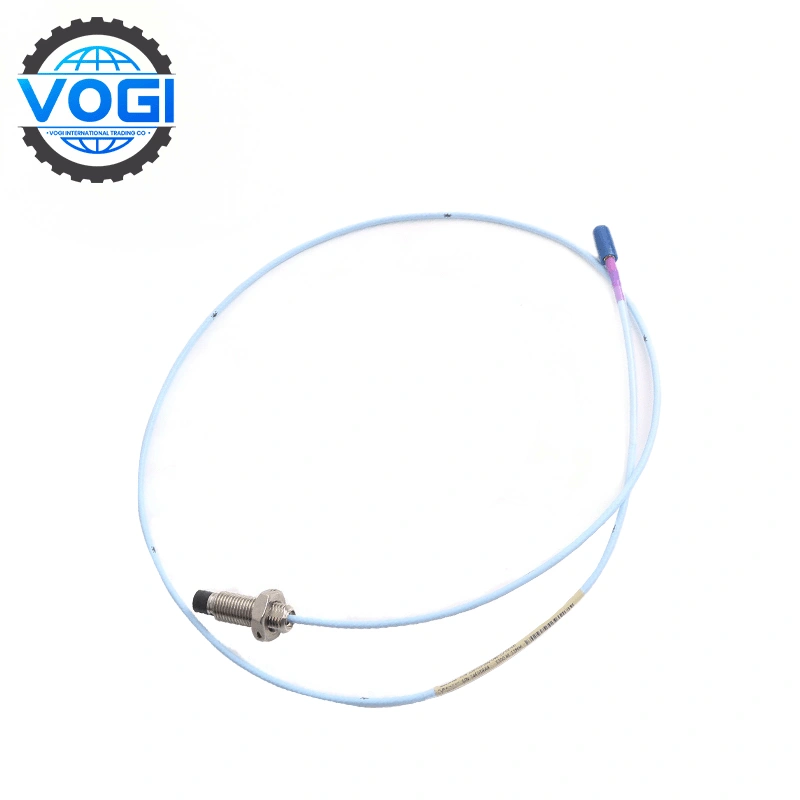

330703 3300 XL 11mm Probe, M14 x 1.5 thread, without armor
330703-AAA-BBB-CC-DD-EE | |||
AA: Unthreaded Length Option | |||
BB: Overall Case Length Option | |||
CC: Total Length Option | |||
05 | 0.5 meters (1.6 feet) | 20 | 2.0 meters (6.6 feet) |
10 | 1.0 meters (3.3 feet) | 50 | 5.0 meters (16.4 feet) |
15 | 1.5 meters (4.9 feet) | 90 | 9.0 meters (29.5 feet) |
DD: Connector and Cable-Type Option | |||
01 | Miniature coaxial ClickLoc connector with connector protector, standard cable | 11 | Miniature coaxial ClickLoc connector with connector protector, FluidLoc cable |
02 | Miniature coaxial ClickLoc connector, standard cable | 12 | Miniature coaxial ClickLoc connector, FluidLoc cable |
EE: Agency Approval Option | |||
00 | Not required | 05 | CSA, ATEX, IECEx Approvals |
Bently Nevada 330703-000-050-10-02-00 Core Functions
Enhanced Sensing Range
11mm tip diameter for extended linear measurement capability (0.5–4.6mm), ideal for applications needing wider coverage than standard 8mm probes.
Delivers 3.94 V/mm (100 mV/mil) sensitivity for precise non-contact vibration/displacement data.
Robust Design & Connector
Features M14×1.5 threading and ClickLoc connectors for secure, anti-vibration installation resisting loosening in harsh environments.
CableLoc technology ensures 330 N (75 lb) cable pull strength for mechanical resilience.
Simplified Integration
Plug-and-play with 1m standard cable (model code 10); compatible with 3300 XL Proximitor Sensors for quick system setup.
Pre-calibrated to AISI 4140 steel; optional custom material calibration available.
