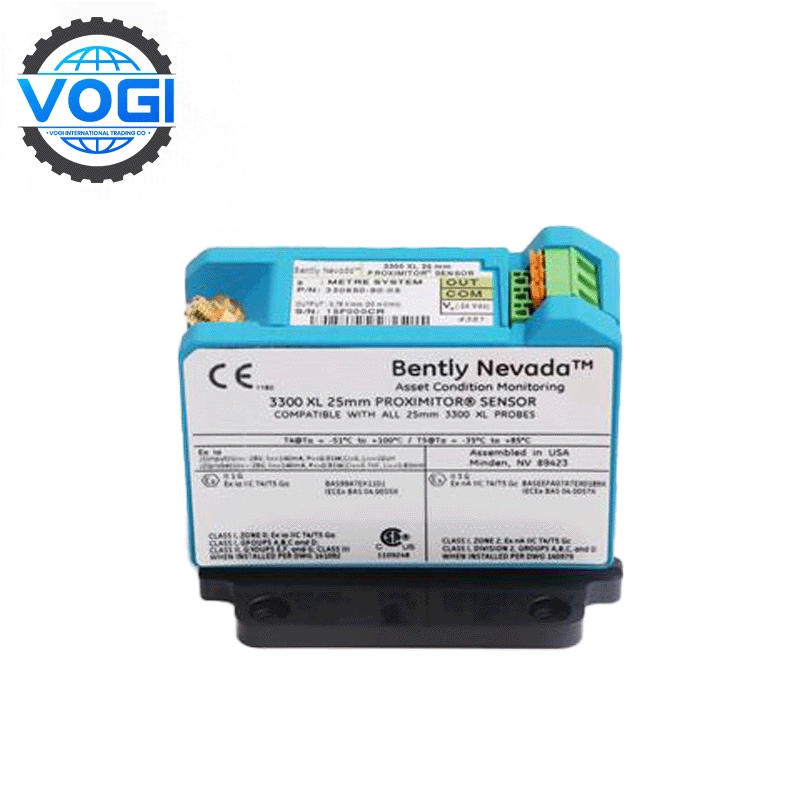

Bently Nevada 330850-90-05 25mm Proximitor Sensor

Brand	Bently Nevada
Module Number	330850-90-05
Price	$500
Weight	0.22kg
Country Of Origin	USA
Certificate	C/O from the Chamber of Commerce C/Q from the manufacturer
Warranty	12 Months
Inventory Qty	2

Description

Payment & Security

DataSheet Download

Description

Bently Nevada 330850-90-05 Key parameters

Core Specifications

Sensing Range: 25 mm (500 mils) linear measurement range .

Output Scaling: 0.787 V/mm (20 mV/mil) .

Compatibility: Requires separate 25 mm probes and extension cables (sold separately) .

Electrical & Power

Power Supply: -24 V DC operating voltage .

Terminals: SpringLoc terminals for robust, tool-free field wiring .

Environmental & Physical

Operating Temp: -40°C to +70°C .

Storage Temp: -40°C to +85°C .

Protection Rating: IP65 (dust/water resistant) .

Calibration & Compatibility

Factory-calibrated for AISI 4140 steel targets .

Compatible with legacy 7200-series DE systems but requires full system upgrade (probe, cable, sensor) .

Payment & Security

Beneficiary's Bank: CITIBANK N.A.
Beneficiary address:Champion Tower,Three Garden Road,Central,Hong Kong
Beneficiary: Vogi International Trading Co., Limited
Account No.: 395714900
Bank Code: 006 Branch Code: 391
Swift Code:CITIHKHX (CITIHKHXXXX * If 11 characters are required)
Payment Term：T/T

DataSheet Download

Bently Nevada 330850-90-05 Associated Equipment

25 mm Probes: Must pair with compatible 25 mm probes (e.g., 3300 XL 25 mm series), designed for high-temperature steam environments (up to 250°C intermittently). These feature FluidLoc cables and ClickLoc connectors to prevent moisture ingress.

Extension Cables: Require specific 3300 XL 25 mm extension cables with resistance specs (e.g., 1.76 Ω ±0.26 for 8.0 m length). Connector protectors or silicone tape are essential to shield connections from oil/contaminants.

Mounting Hardware: Sliding brackets (optional) enable precise probe positioning during differential expansion (DE) measurement verification. Safety-wired locknuts secure threaded probe cases.
