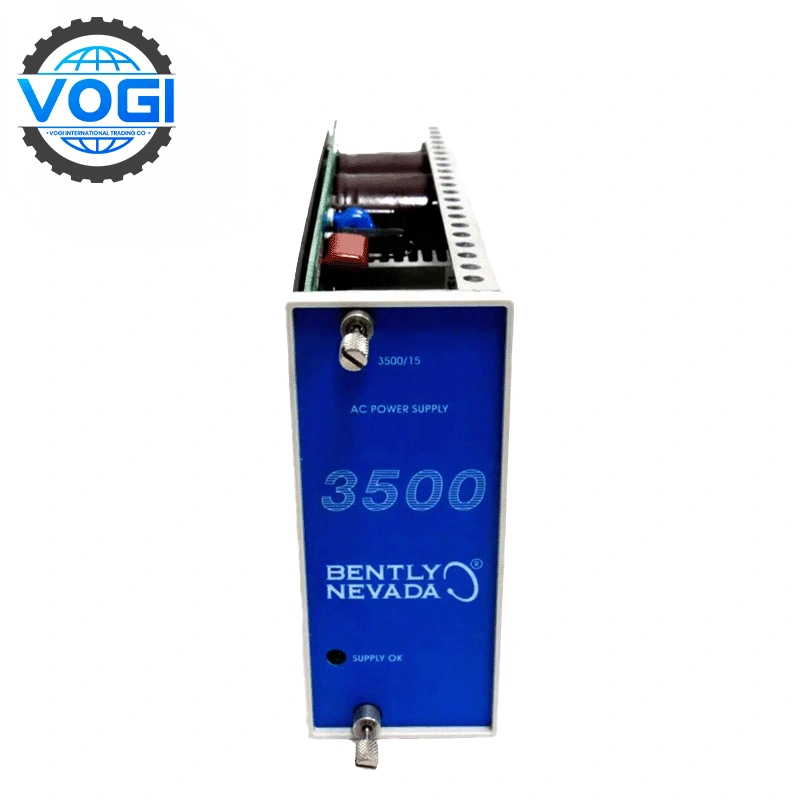

Bently Nevada 3500/15 Power Supply Module

Brand	Bently Nevada
Module Number	3500/15
Module Number	127610-01 129486-01 133292-01 106M1079-01 114M5330-01 125840-01
Price	$1000
Weight	1.39kg
Country Of Origin	USA
Certificate	C/O from the Chamber of Commerce C/Q from the manufacturer
Warranty	12 Months
Inventory Qty	7

Description

Payment & Security

DataSheet Download

Description

Bently Nevada 3500/15 Key parameters

Input Voltage & Power Options

Universal Voltage AC: 85–264 Vac RMS (non-hazardous areas), 85–250 Vac RMS (hazardous areas) with 47–63 Hz frequency.

High Voltage DC: 88–140 Vdc input.

Low Voltage DC: 20–30 Vdc input.

Redundancy: Dual power supplies supported in upper (backup) and lower (primary) slots; seamless failover during maintenance.

Compliance & Certifications

Hazardous Area Approvals: ATEX/IECEx (Zone 2), CSA/NRTL/C (Class I, Div. 2), and DNV GL for marine use.

EMC/Safety Standards: EN 61000-6-2/4 (industrial immunity/emissions), EN 61010-1 (electrical safety).

Environmental Resilience

Operating Range: -30°C to +65°C (-22°F to +150°F); storage up to -40°C to +85°C.

Humidity: 95% non-condensing.

Key Accessories & Compatibility

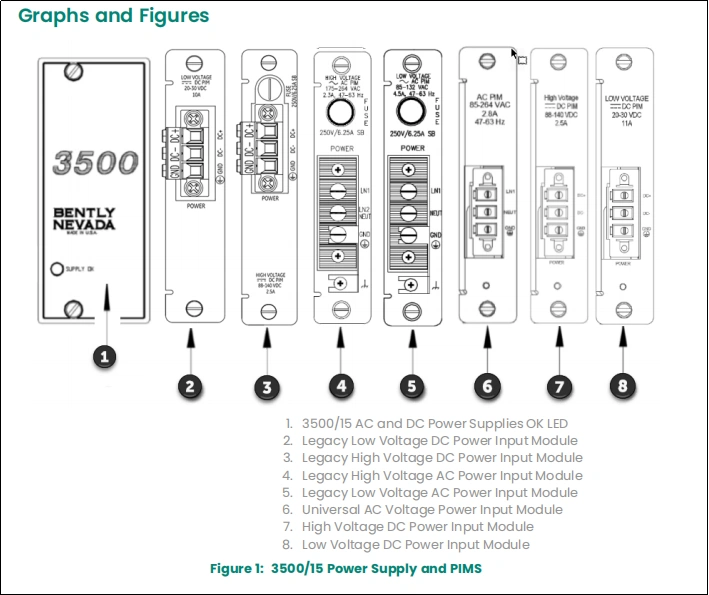

Power Input Modules (PIM):

Universal AC: 106M1081-01.

Legacy DC: 129478-01 (HV DC), 133300-01 (LV DC).

Redundant Configurations:

Dual Universal AC: 3500/15-05-05-00 (includes two 106M1079-01 modules and two 106M1081-01 PIMs).

Adapter Panels: 144863-01 for mini-rack integration into standard 19-inch EIA racks.

Payment & Security

Beneficiary's Bank: CITIBANK N.A.
Beneficiary address:Champion Tower,Three Garden Road,Central,Hong Kong
Beneficiary: Vogi International Trading Co., Limited
Account No.: 395714900
Bank Code: 006 Branch Code: 391
Swift Code:CITIHKHX (CITIHKHXXXX * If 11 characters are required)
Payment Term：T/T

DataSheet Download

Bently Nevada 3500/15 Details

Ordering Number	Description
127610-01	AC Power Supply Module
129486-01	Legacy High Voltage DC Power Supply Module
133292-01	Legacy Low Voltage DC Power Supply Module
106M1079-01	Universal AC Power Supply Module
114M5330-01	Low Voltage DC Power Supply
125840-01	High Voltage ac Power Input Module

Bently Nevada 3500/15 Core Function

The Bently Nevada 3500/15 supports dual-module installation within a rack. Either the lower (primary) or upper (backup) module can independently power the entire monitoring system, ensuring continuous operation if one supply fails or is replaced .

Universal Input Voltage Compatibility

Designed for global use, this power supply accepts a wide range of AC (85-264 VAC RMS) or DC inputs (High Voltage: 88-140 VDC; Low Voltage: 20-30 VDC), eliminating the need for multiple specialized units .

Hot-Swappable Operation

Modules can be safely inserted or removed during system operation without disrupting the rack's functionality, provided a second Bently Nevada 3500/15 unit is installed for redundancy .
