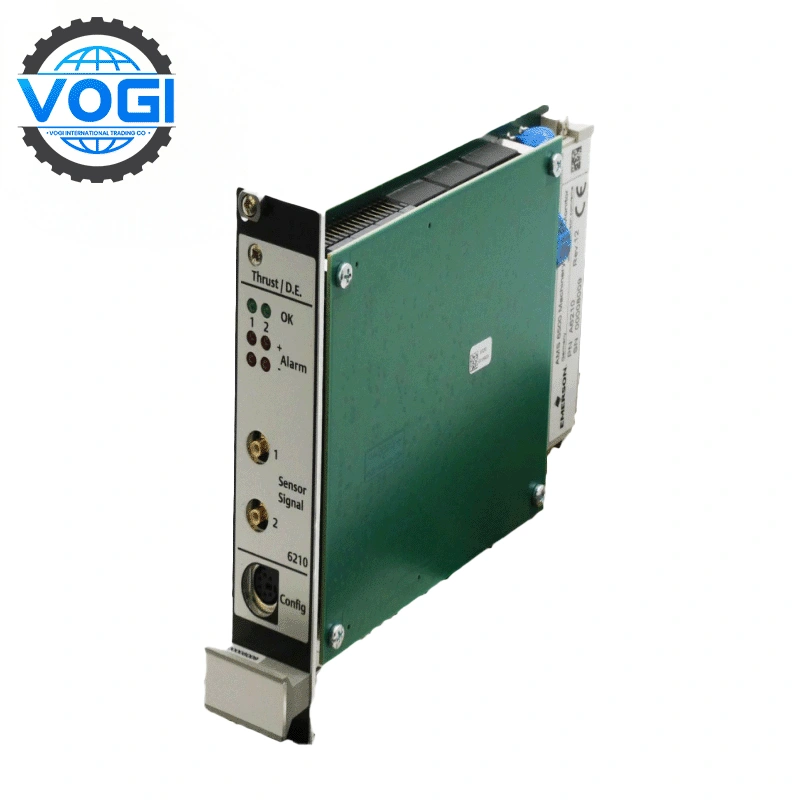

Emerson A6210 Thrust Position,Differential Expansion,and Rod Position Monitor

Emerson A6210 Thrust Position,Differential Expansion,and Rod Position Monitor

Brand	Emerson
Module Number	A6210
Ordering Number	A6210
Price	$1550
Weight	0.5kg
Country Of Origin	United States
Certificate	C/O from the Chamber of Commerce C/Q from the manufacturer
Warranty	12 Months
Inventory Qty	9

Description

Payment & Security

DataSheet Download

Description

Emerson A6210 Key parameters

Two-channel, 3U size, 1-slot plug-in module decreases cabinet space requirements in half from traditional four- channel 6U size cards.

AP l670 and AP l618 compliant hot swappable module.

Front and rear buffered and proportional outputs, 0/4-20 mA output,0-10 Vout put.

Self-checking facilities include monitoring hardware, power input,hardware temperature, simplifies and cable.

Use with displacement sensor6422.6423.6424 and 6425and driver CON xxx.

Payment & Security

Beneficiary's Bank: CITIBANK N.A.
Beneficiary address:Champion Tower,Three Garden Road,Central,Hong Kong
Beneficiary: Vogi International Trading Co., Limited
Account No.: 395714900
Bank Code: 006 Branch Code: 391
Swift Code:CITIHKHX (CITIHKHXXXX * If 11 characters are required)
Payment Term：T/T

DataSheet Download

Emerson A6210 Details

Emerson A6210 Details

The AMS 6500 Machinery Health Monitor is an integral part of Plant Web and AMS software.

Plant Web provides operations integrated machinery health combined with the Ovation and Delta V process control system, AMS software provides maintenance personnel advanced predictive and performance diagnostic tools to confidently and accurately determine machine malfunctions early.

A6210 Thrust Position,Differential Expansion,and Rod Position Monitor for AMS 6500 Machinery Health Monitor

Transducer Inputs
Number of lnputs	Two,independent
Type of Inputs	Eddy current,differential
Emerson Sensor Inputs	Part number:6422,6423,6424,6425
lsolation	Galvanically separated from power supply
Input Resistance	>100 kΩ
Input Voltage Range	0 to-22VDC
Measuring Frequency Range	0-8Hz(10Hz,-3dB)
Measuring Range
Range	■ Continuously adjustable with the configuration software. ■Also incdludes measuring range invert
Sensor Power Supply	Separate buffered sensor supply Galvanically separated from all system voltages and system supply voltage ■ Open and short circut proof
Nominal Supply Voltage	-26.7 VDC
Available Current	Nominal20 mA,maximum 35mA
Front Panel Outputs
Green LED's	Two LED's,indicates channel OKseparately for each channel
Red LED's	Four LED's,indicates alert and danger separately for each channel
Front Panel Buffered Outputs	Two,identical to transducer sensor inputs-1 to-24V,>100kΩload
Mini DIN Configuration Socket	Module interface connection for configuration and parameter and status monitoring ■ RS-232
Handle	Easily remove card and provide plate for module and sensor identification
Analysis
Measurement Modes	■ Hot configurable ■Axial shaft movement ■Axia shaft position ■Measures cone,ramp and collar differential expansion ■ Measures radial shaft position and bend ■Measures tandem configurations ■Measures conical disc with temperature compensation or radial displacement compensation ■Measures average rod position
Configurable Parameters	■Measuring range ■ Engineering units Sensitivity ■ Alert and Danger
Rear Outputs Available
Current Mode Outputs	0/4-20mAoutput for each channel proportiona to main value For example,both outputs are identical for combined mode Tandem/Cone and assigned to the relevant channel for the modes Dual Channel or Min/[Max ■ For example,Open/short circuit proof
Permissible Load	<500Ω
Accuracy	±1%of full scale
Settling Time	Configurable,0-10 seconds
Rear Buffered Outputs	0-10VDCoutput proportional to main value for each channel Open/short circuit proof
Frequency Range	>10kΩ
Permissible Load	Rawbuffered output signal,ACand DC Open/short circuit proof
DCVoltage Outputs	■0-10VDC output proportional to the shaft position(gap) ■Open/short circuit proof
Accuracy	±1%of range
Permissible Load	>10kΩ
