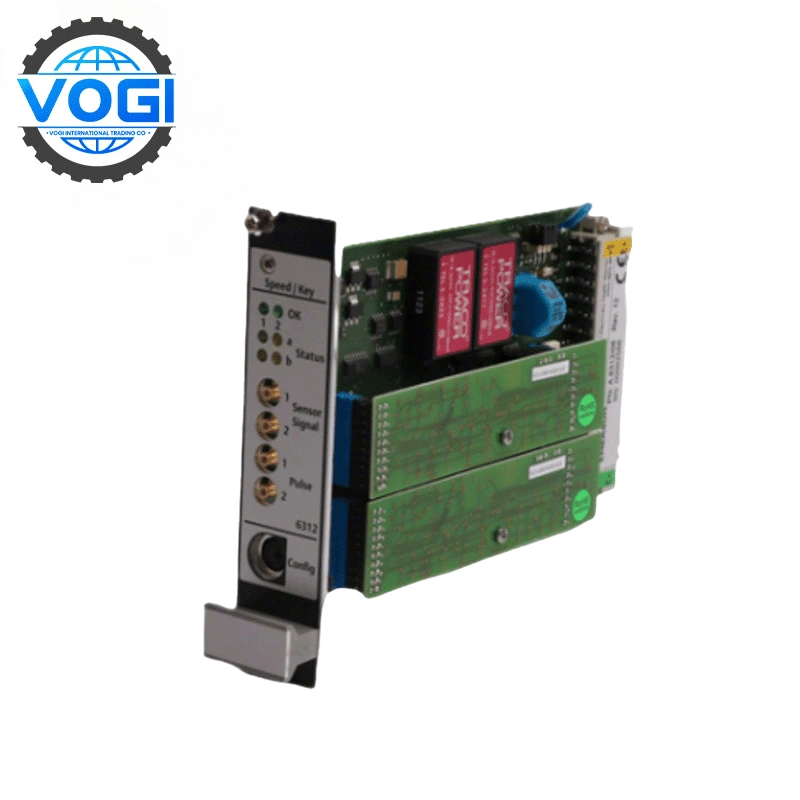

Emerson A6312/06 Speed And Key Monitor

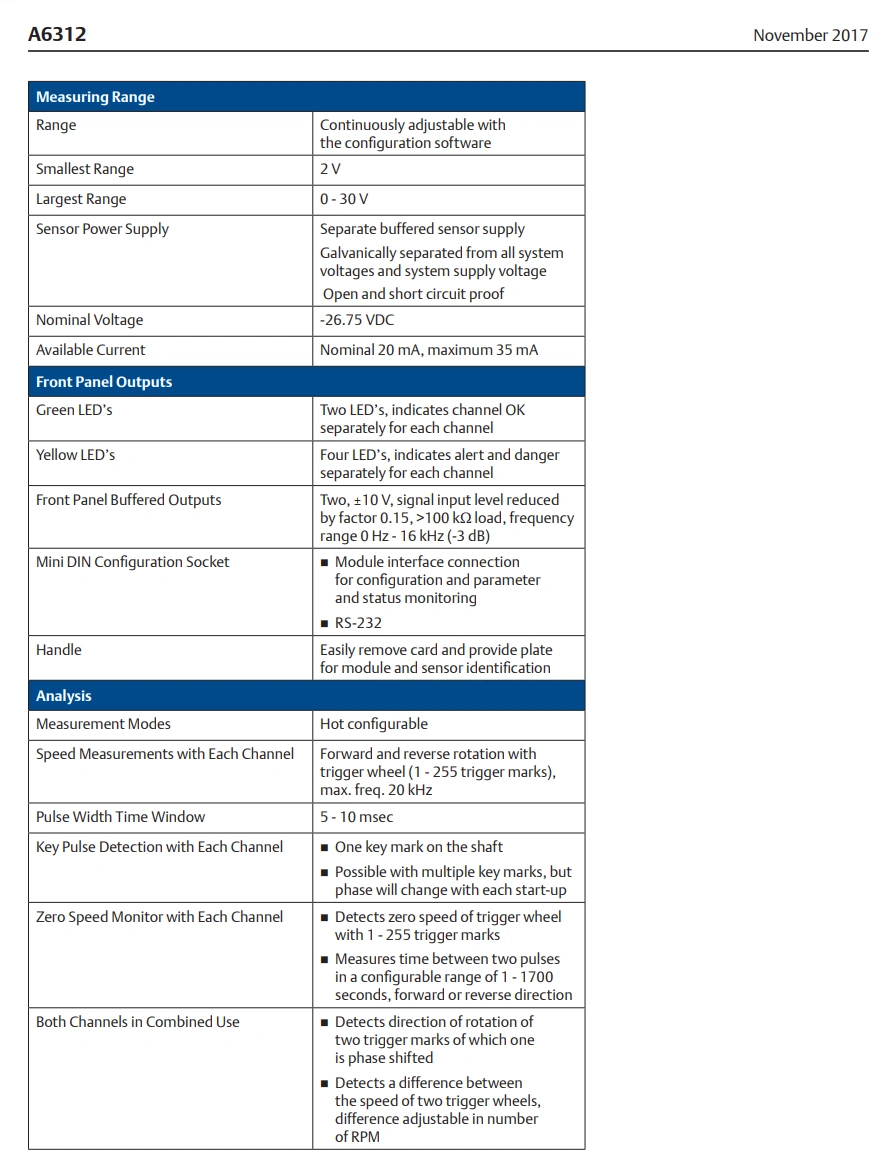

Emerson A6312/06 Key parameters

Sensor Input Configuration

Input Channels: Dual independent inputs for redundancy or simultaneous monitoring of two shafts or parameters .

Sensor Compatibility: Supports eddy current probes (e.g., Emerson PR 9376) and Hall-effect sensors, with ±27.3 VDC input range and frequency detection up to 20 kHz (65,535 RPM) .

Isolation: Galvanic isolation between sensor inputs, power supplies, and communication interfaces to prevent signal interference .

Output and Communication

Analog Outputs: Post-buffered proportional signals (0/4–20 mA) for direct integration with PLCs or control systems .

Digital Interfaces: RS-485 Modbus support for real-time data transmission to Emerson’s AMS 6500 health monitoring platform .

Front-Panel Indicators: Four configurable LEDs per channel (green for OK status, yellow for alarms) and buffered ±10 V outputs for signal verification .

Redundancy and Failover

Automatic Switchover: Monitors sensor gaps and pulse integrity, triggering seamless transition to backup sensors during primary sensor failure .

Phase Continuity: Requires primary and redundant sensors to be axially aligned for uninterrupted phase tracking during failover .

Diagnostics and Compliance

Self-Testing: Continuous monitoring of hardware temperature, sensor integrity, and cable faults to trigger pre-alerts .

API 670 Compliance: Validated for machinery protection in critical applications (e.g., turbines, compressors) with hot-swappable design for maintenance without downtime .

Environmental and Mechanical

Operating Range: Functions reliably in temperatures from 0°C to 65°C (32°F to 149°F) and withstands vibrations up to 20 m/s² (55–150 Hz) .

Modular Footprint: 3U-sized (8TE width) module compatible with AMS 6500 racks, reducing cabinet space by 50% compared to legacy systems .
