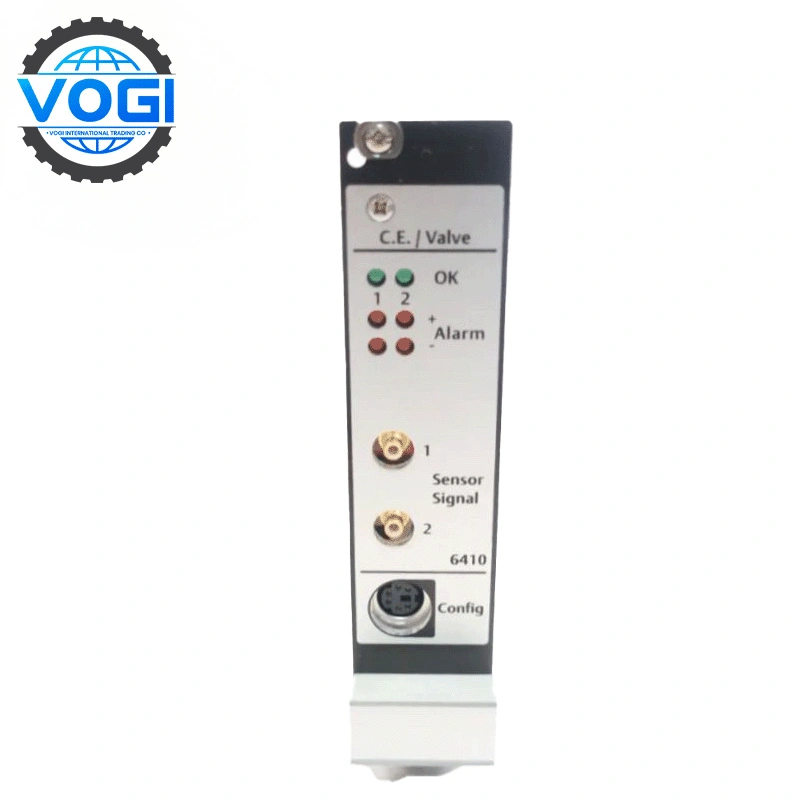

Emerson A6410 Valve and Case Expansion Monitor

Brand	Emerson
Module Number	A6410
Ordering Number	A6410
Price	$1200
Weight	0.32kg
Country Of Origin	United States
Certificate	C/O from the Chamber of Commerce C/Q from the manufacturer
Warranty	12 Months
Inventory Qty	2

Description

Payment & Security

DataSheet Download

Description

Emerson A6410 Key parameters

Two-channel, 3U size, 1-slot plugin module decreases cabinet space requirements in half from traditional four-channel 6U size cards.

API 670 compliant,hot swappable module.

Password protected user configuration.

Self-checking facilities include monitoring hardware, power input,hardware temperature, sensor and cable.

Front and rear buffered and proportional outputs,0/4-20 mA output, 0 -10 Vout put

Use with inductive displacement sensor 9350.

Payment & Security

Beneficiary's Bank: CITIBANK N.A.
Beneficiary address:Champion Tower,Three Garden Road,Central,Hong Kong
Beneficiary: Vogi International Trading Co., Limited
Account No.: 395714900
Bank Code: 006 Branch Code: 391
Swift Code:CITIHKHX (CITIHKHXXXX * If 11 characters are required)
Payment Term：T/T

DataSheet Download

Emerson A6410 Details

The AMS 6500 Machinery Health Monitor is an integral part of Plant Web and AMS software. Plant Web provides operations integrated machinery health combined with the Ovation and Delta V process control system, AMS software provides maintenance personnel advanced predictive and performance diagnostic tools to confidently and accurately determine machine malfunctions early.

A6410 Valve and Case Expansion Monitor for AMS 6500 Machinery Health Monitor

Transducer Inputs
Number oflnputs	Two,independent,differential inputs
Type of lnputs	Inductive,half bridge or full bridge and differential transformers
Emerson Sensor Inputs	Part number:PR9350/xx and K20315/xx
Isolation	Galvanically separated from power supply
lnput Impedance	200kΩ
lnput Voltage Range	3.6VDC (protected against over voltage)
Measuring Frequency Range	0-100 Hz(-3dB)
Measuring Range
Range	Continuously adjustable with configuration software.One or both outputs may be inverted
Carrier Frequency	4.75kHz
Sensor Power Supply	Separate buffered sensor supply Galvanically separated fromall system voltages and system supply voltage. Open and short circuit proof
Nominal Supply Voltage	4Vrms
Permissible Load	120-600Ω
Front PanelOutputs
Green LED's	Two LED's,indicates channel OK separately for each channel.
Red LED's	Four LED's,indicates alert and danger separately for each channel.
Front Panel Buffered Outputs	Two,identical to transducer sensor inputs±12V,>100 k2load.
Mini DIN Configuration Socket	■Module interface connection for configuration and parameter and status monitoring ■ RS-232.
Handle	Easily remove card and provide plate for module and sensor identification
Analysis
Measurement Modes	Hot configurable for dual-channel measurement, expansion measurement.
Configurable Parameters	■Measuring range ■ Engineering units Sensitivity ■Alert and Danger
