Emerson A6500

A6500-UM Universal Measurement Card

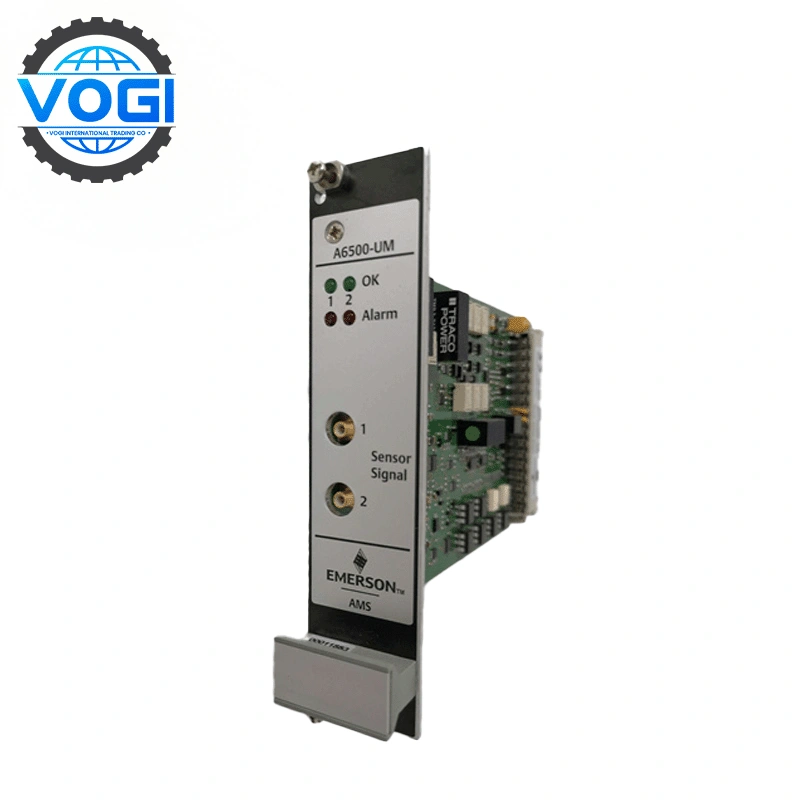

Two-channel, 3U size, 1-slot plug-in module decreases cabinet space requirements in half from traditional four-channel 6U size cards.

AP l670 compliant, hot swappable module.

Remote selectable limit multiply and trip bypass.

Front and rear buffered and proportional outputs,0/4-20mA output.

Self-checking facilities include monitoring hardware, power input,hardware temperature, sensor,and cable.

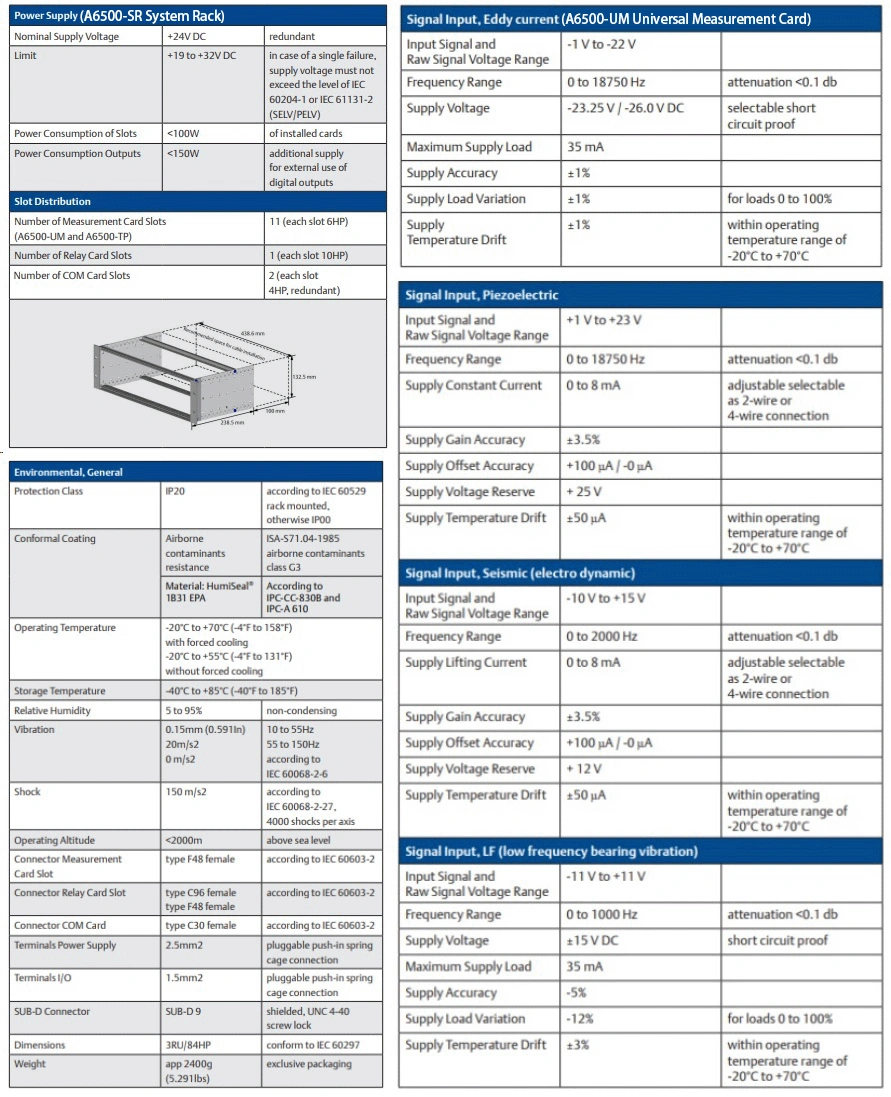

A6500-SR System Rack

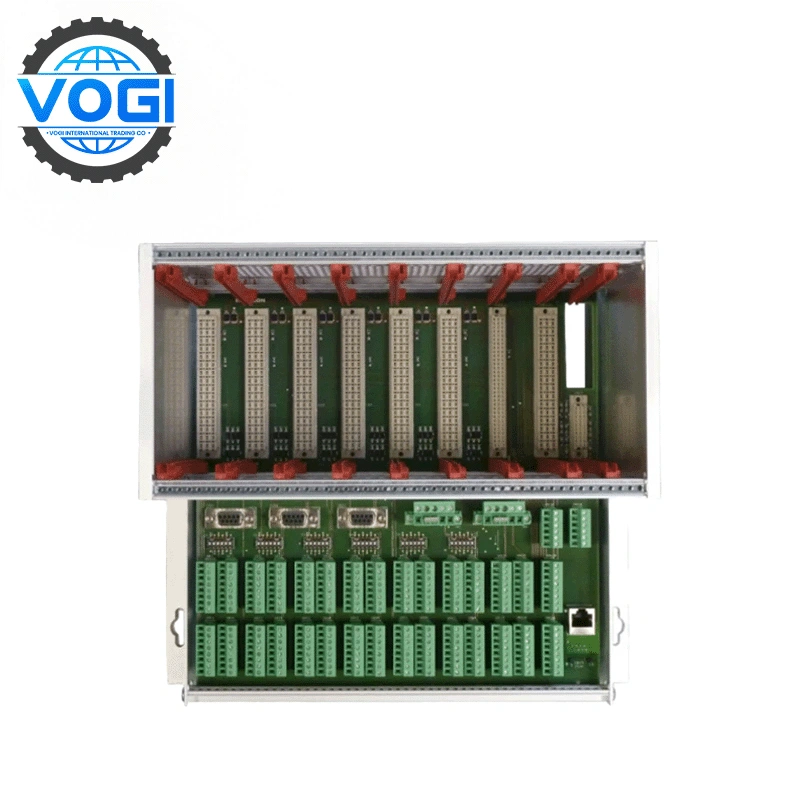

The A6500-R System Rack is part of the AMS 6500 ATG machinery protection system.it is a 19" rack (84HP width and 3RU height). The System Rack allows you to install up to 11 protection cards (two channel A6500-UM Universal Measuring Card and/or fou rchannel A6500-TP Temperature Process Cards),one A6500-RC Relay Cards, and one A6500-CCcom Card-two Com Cards for redundant communication.

The rear of the System Rack is equipped with push-in spring cage connectors to connect input and output signals, with D-Sub connectors to provide sensor raw signals and slide switches to configure key-signals and binary inputs.Each of the 1 1 slots for protection cards has four eight-pole spring cage connectors for connecting several sensor types (eddy curent sensors, piezoelectric sensors,seismic sensors, RTDs, etc.), binary inputs, binary outputs (function outputs).current outputs, and pulse outputs. The available number of measuring channels and all other functions depend on the installed cards.
