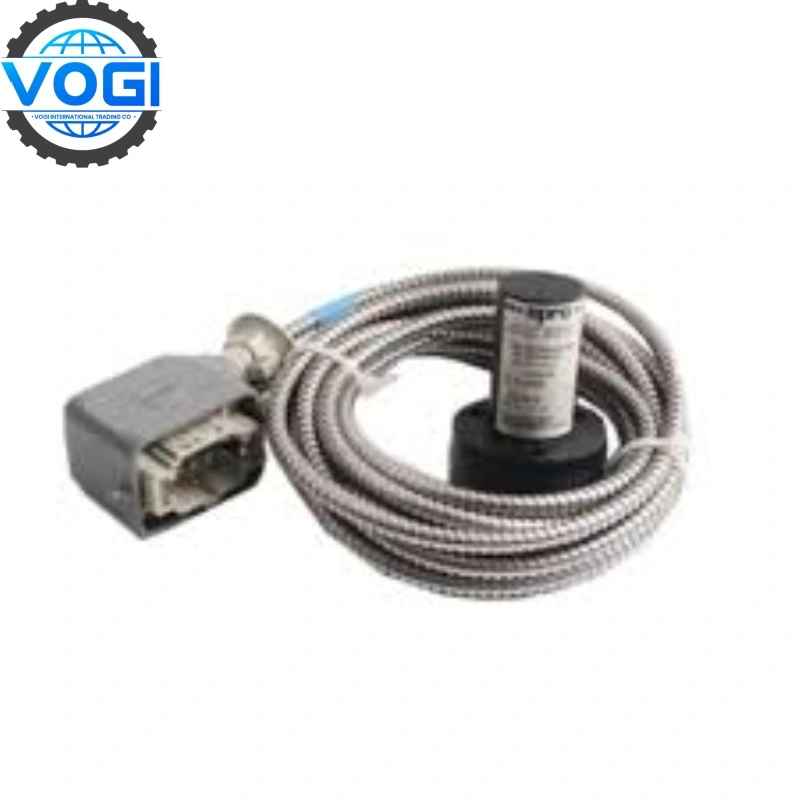

EPRO PR9268/202-000 Electrodynamic Vertical Velocity Sensor
| Brand | EPRO |
| Module Number | PR9268/202-000 |
| Unit Price | $1500 |
| Country Of Origin | USA |
| Weight | 0.91KG |
| Certificate |
C/O from the Chamber of Commerce C/Q from the Manufacturer |
| Warranty | 12 Months |
| Inventory Qty | 10 |
The PR9268/202-000 is a vibration transducer designed for continuous monitoring and protection of industrial machinery. It is extensively applied in sectors including power generation, oil and gas, and heavy manufacturing for measuring relative shaft vibration and providing critical data to prevent equipment failure.
Technical Specifications
|
arameter |
Specification |
|
Model |
PR9268/202-000 |
|
Function |
Relative Shaft Vibration Transducer |
|
Operating Principle |
Electromagnetic Induction |
|
Supply Voltage |
Typically -24 VDC (Two-wire system) |
|
Output Signal |
4 to 20 mA (Linearly proportional to vibration velocity) |
|
Measuring Range |
0 to 100 mm/s (Velocity) |
|
Frequency Response |
10 to 1000 Hz (1.5 to 15000 rpm) |
|
Sensitivity |
200 mV/mm/s ± 5% |
|
Linearity |
≤ ± 1% of full scale |
|
Temperature Range |
-50 to +120 °C (for sensor head) |
|
Output Impedance |
> 100 kΩ |
|
Electrical Connection |
Cable outlet or connector option |
|
Housing Material |
Stainless Steel |
|
Mounting |
M10 x 1.5 threaded stud |
