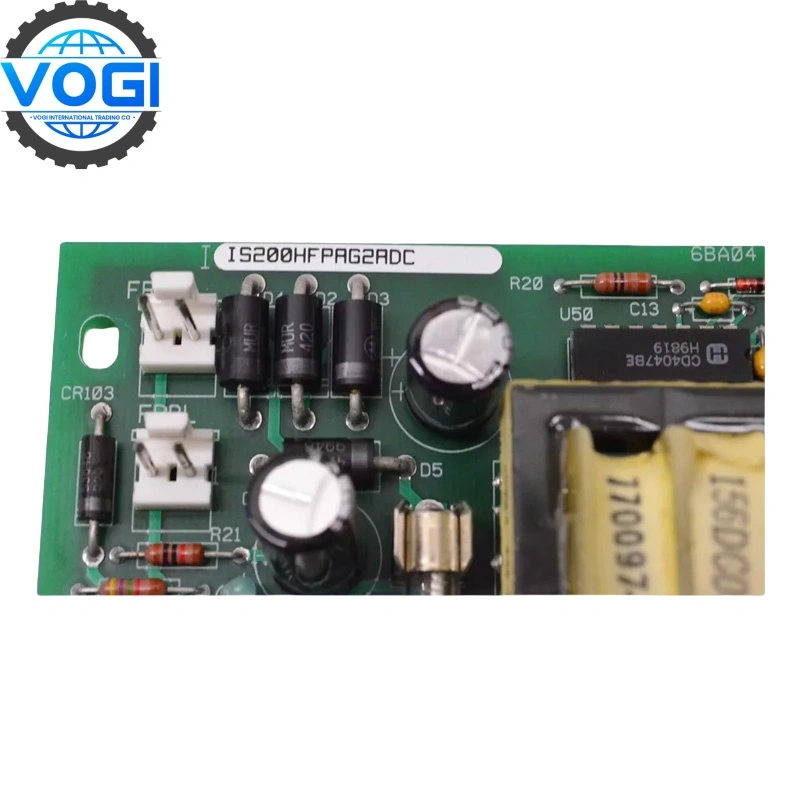

GE IS200HFPAG2ADC Fan/Xfrmr Card
| Brand | GE |
| Module Number | IS200HFPAG2ADC |
| Unit Price | $1500 |
| Country Of Origin | USA |
| Weight | 0.8KG |
| Certificate |
C/O from the Chamber of Commerce C/Q from the Manufacturer |
| Warranty | 12 Months |
| Inventory Qty | 10 |
The IS200HFPAG2ADC is a high-performance analog-to-digital converter (ADC) module designed by GE for precision signal processing in industrial automation and power generation systems. It is widely used in turbine control, grid monitoring, and other critical applications requiring high-speed, accurate data conversion.
|
Parameter |
Specification |
|
Resolution |
16-bit |
|
Sampling Rate |
1 MSPS (max) |
|
Input Voltage Range |
±10 V |
|
Power Supply |
+5 V DC (±5%) |
|
Operating Temp. |
-40°C to +85°C |
|
Interface |
Parallel/SERIAL (SPI-compatible) |
|
Package |
Industrial-grade, DIN rail-mountable |
|
Isolation |
2500 Vrms (channel-to-ground) |
Beneficiary's Bank: CITIBANK N.A.
Beneficiary address:Champion Tower,Three Garden Road,Central,Hong Kong
Beneficiary: Vogi International Trading Co., Limited
Account No.: 395714900
Bank Code: 006 Branch Code: 391
Swift Code:CITIHKHX (CITIHKHXXXX * If 11 characters are required)
Payment Term：T/T
Key Features
The IS200HFPAG2ADC offers exceptional linearity (±0.01% FSR) and low noise (SNR > 90 dB), making it ideal for harsh environments. Its rugged design ensures reliability in high-vibration and high-temperature conditions. The module supports configurable input ranges and includes built-in diagnostics for fault detection.
Compared to older models like the IS200HFPAG1ADC, the IS200HFPAG2ADC provides faster sampling rates and improved signal integrity. Its modular design simplifies integration with GE’s Mark VIe control systems.
Performance comparison
|
Model |
Resolution |
Sampling Rate |
Isolation |
Key Advantage |
|
IS200HFPAG2ADC |
16-bit |
1 MSPS |
2500 Vrms |
Higher speed, better diagnostics |
|
IS200HFPAG1ADC |
14-bit |
500 kSPS |
1500 Vrms |
Lower cost, legacy compatibility |
|
Competitor Model X |
16-bit |
800 kSPS |
2000 Vrms |
Limited GE system integration |
Global Applications
The IS200HFPAG2ADC is extensively deployed in power plants (gas/steam turbines), oil refineries, and renewable energy facilities worldwide. In Europe and North America, it is a preferred choice for grid synchronization and fault recording. Its robustness has also made it popular in offshore drilling platforms and military-grade power systems.
