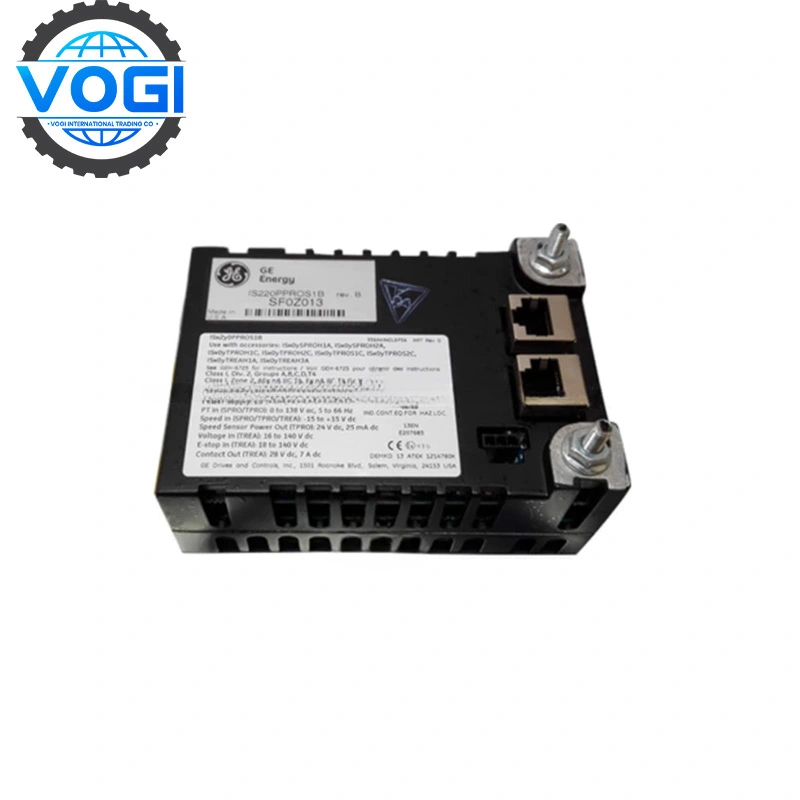

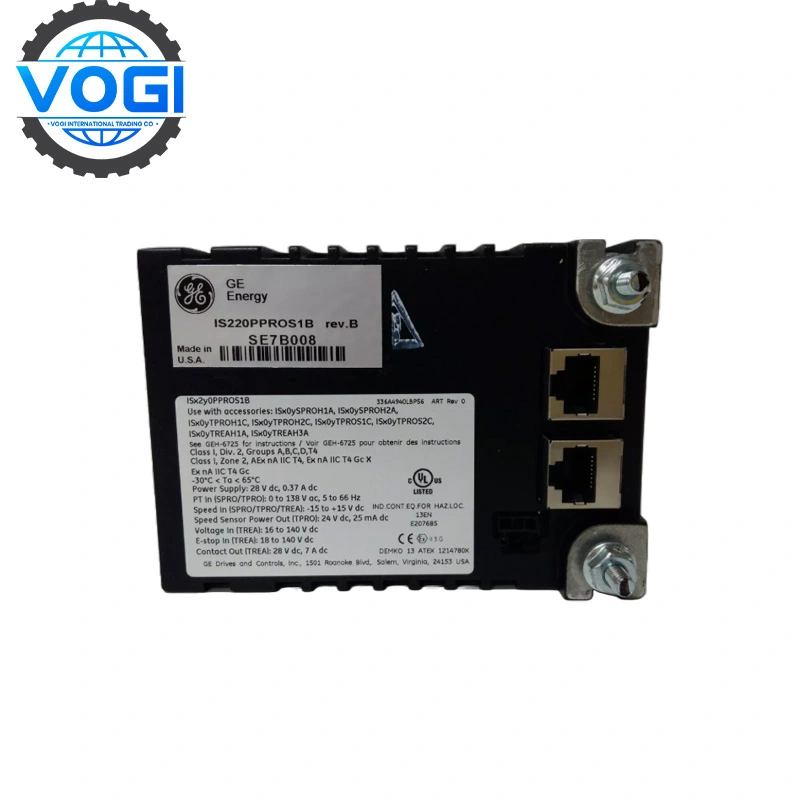

GE IS220PPROS1B Backup Turbine Protection Modules

Brand	GE
Module Number	IS220PPROS1B
Unit Price	$5300
Country Of Origin	USA
Weight	0.8KG
Certificate	C/O from the Chamber of Commerce C/Q from the Manufacturer
Warranty	12 Months
Inventory Qty	10

GE IS220PPROS1B is a Backup Turbine Protection Module used in GE Mark VIe systems. It monitors turbine conditions and provides fast backup protection to ensure safe turbine operation.

Submit Inquiry

Description

Payment&Security

Description

GE IS220PPROS1B Technical specifications

Parameter	Specification
Function	Redundant Turbine Protection Module
Safety Level	SIL3 Certified
Response Time	<10 ms
Input Channels	16 (8 analog, 8 digital)
Output Channels	8 (Form C relay contacts)
Communication	Dual-redundant 100Base-T Ethernet
Operating Temp.	-40°C to +85°C
Dimensions	16.5 x 11.2 x 3.8 cm

Payment&Security

Beneficiary's Bank: CITIBANK N.A.
Beneficiary address:Champion Tower,Three Garden Road,Central,Hong Kong
Beneficiary: Vogi International Trading Co., Limited
Account No.: 395714900
Bank Code: 006 Branch Code: 391
Swift Code:CITIHKHX (CITIHKHXXXX * If 11 characters are required)
Payment Term：T/T

GE IS220PPROS1B Key features

Ultra-Fast Protection：<10ms response time for critical turbine trips
Dual-Redundant Design：Ensures continuous operation during failures
SIL3 Certified：Meets highest safety integrity level requirements
Comprehensive I/O：Handles both analog and digital protection signals

INSTALLATION:
Verify system power is isolated before installation
Mount in designated slot using DIN rail or panel mount
Connect redundant power and signal wiring
Perform functional test after commissioning

Performance comparison

Parameter	IS220PPROS1B	IS220PPROS1A
Safety Level	SIL3	SIL2
Response Time	<10 ms	<15 ms
Redundancy	Dual	Single

Summary:
GE IS220PPROS1B offers higher safety certification (SIL3), faster response time, and true dual-redundancy compared to the previous generation IS220PPROS1A.

Typical cooperation cases

UK - Drax Power Station
Deployed 16 modules for biomass unit protection upgrade. Achieved 100% reliability since 2021 installation.
Japan - JERA Hekinan Thermal Power
Integrated 24 units into coal-fired units, reducing false trips by 40% compared to previous system.
Canada - TransAlta Sundance Plant
Installed 12 modules during turbine modernization, cutting maintenance costs by 25% annually.
UAE - TAQA Mussafah Plant
Completed gas turbine protection upgrade with 18 modules, improving MTBF to 50,000 hours.
