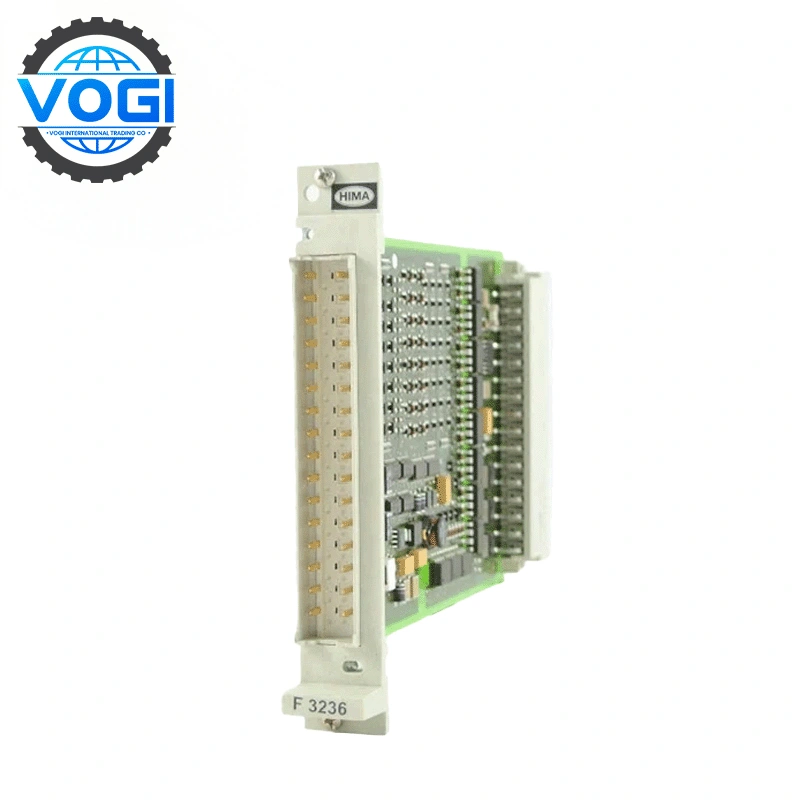

HIMA F3236 Details
HIMA F3236 16-fold input module
| Brand | HIMA |
| Module Number | F3236 |
| Ordering Number | F3236 |
| Price | $850 |
| Weight | 0.6kg |
| Country Of Origin | Germany |
| Certificate |
C/O from the Chamber of Commerce C/Q from the manufacturer |
| Warranty | 12 Months |
| Inventory Qty | 5 |
HIMA F3236 Key parameters
Processing & Signal Handling
Microprocessor: Equipped with an Intel 386EX processor (25 MHz clock speed) for rapid data processing, paired with 1 MB Flash-EPROM for firmware storage and 1 MB SRAM for dynamic data retention.

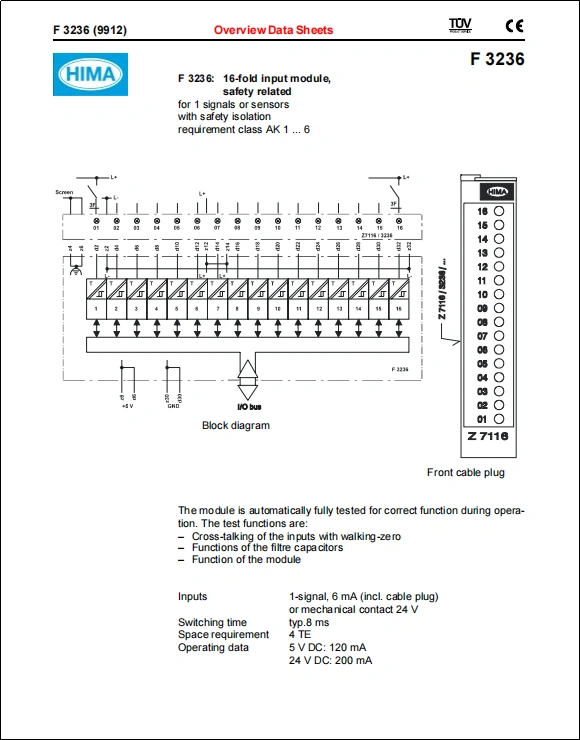

Input Channels: 16 configurable digital inputs supporting 1-signal (6 mA) or mechanical contact (24 V DC) sources, designed for safety isolation requirements (AK1–AK6 standards) .
Switching Speed: Achieves a typical 8 ms response time for real-time monitoring of safety-critical events, such as emergency stop signals.
Power & Environmental Resilience
Dual Voltage Input: Operates on 5 V DC (120 mA) and 24 V DC (200 mA) with a tolerance of ±15%, ensuring stability under fluctuating power conditions.
Thermal Range: Functions reliably in -20°C to +60°C environments, with humidity resistance up to 95% for harsh industrial settings .
Safety & Compliance
Certifications: SIL 3 (IEC 61508/61511) and Category 4 (EN 954-1) certified, validated for nuclear, chemical, and rail safety systems requiring fail-safe operation.
Diagnostics: Integrated hardware fault self-detection and automatic safe-state triggering during faults.
