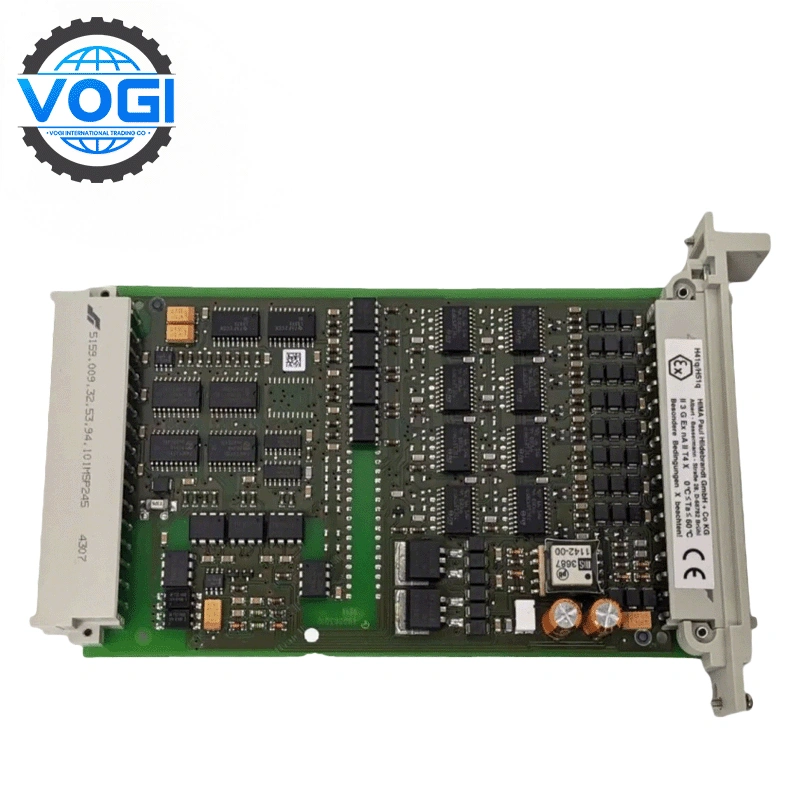

HIMA F3330 Core Operational Features
Multi-Channel Safety Outputs
Equipped with 8 independent channels, the F3330 supports both resistive and inductive loads up to 500 mA (12 W), including lamp connections up to 4 W. Each channel incorporates short-circuit protection and a low internal voltage drop of ≤2 V at full load, ensuring stable operation in power-sensitive environments. The module’s fail-safe design automatically deactivates outputs during undervoltage conditions (tripping at 16 V DC), prioritizing system safety.
Quadruple Modular Redundancy (QMR)
Unique to HIMA’s safety architecture, the F3330 employs a four-microprocessor configuration across dual CU modules. This redundancy guarantees continuous operation even if two processors fail simultaneously, achieving IEC 61508 SIL 3 certification for mission-critical applications like emergency shutdown systems.
Protocol Agnostic Communication
Beyond basic I/O handling, the module acts as a synchronous protocol converter, enabling interoperability between legacy PLCs (e.g., Siemens, Allen-Bradley) and modern motion controllers. This capability facilitates real-time data exchange in hybrid industrial networks without requiring costly infrastructure overhauls.
