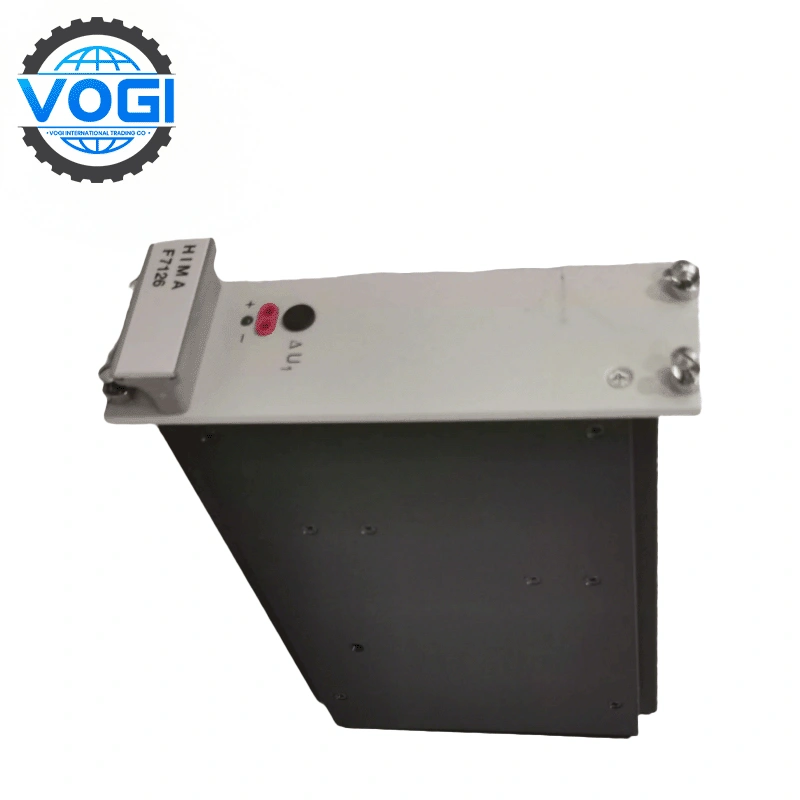

HIMA F7126 Power Supply Module

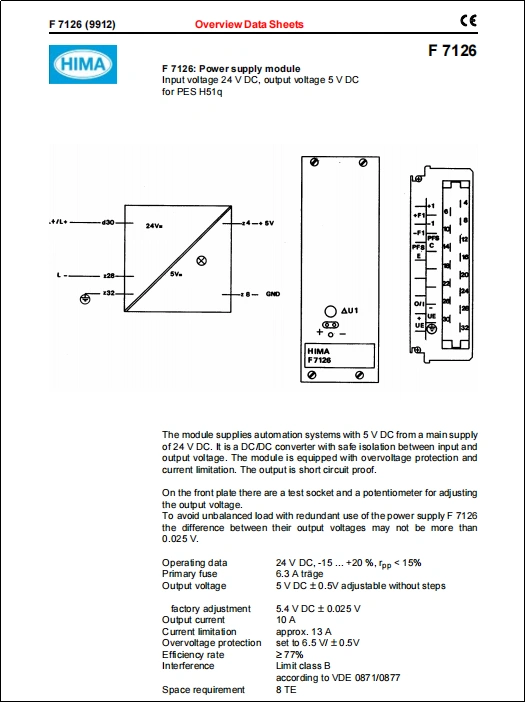

HIMA F7126 Key parameters

Input Voltage & Current

DC Input: Operates at 24 V DC with a tolerance range of -15% to +20% for stable performance under fluctuating power conditions. Input ripple is maintained below 15% for minimal interference .

AC Input Compatibility: Supports a wide AC input range of 85–265 V AC for flexibility in diverse industrial environments .

Output Performance

DC Output: Delivers 5 V DC (±0.5 V adjustable) at 10 A, with a factory-adjusted default of 5.4 V DC (±0.025 V). Overvoltage protection activates at 6.5 V (±0.5 V) to safeguard connected components .

High-Capacity Output: Alternative configurations provide 24 V DC at 6.3 A or 10 A (short-circuit proof), suitable for powering critical automation systems .

Efficiency & Thermal Management

Energy Efficiency: Achieves ≥77% efficiency in standard DC mode, with optimized models reaching up to 95% efficiency under full load to reduce energy waste .

Thermal Resilience: Functions reliably across -25°C to +70°C, with storage tolerance extending to -40°C to +85°C for harsh environments .

Safety & Compliance

Protection Mechanisms: Integrated safeguards include current limitation (~13 A), short-circuit proofing, and undervoltage/overvoltage cutoff to prevent system damage .

Certifications: Complies with SIL 3/SIL 4 functional safety standards and holds CE/RoHS certifications for global industrial use .

Physical & Operational Design

Compact Dimensions: Measures 100 × 50 × 20 mm (or 75 × 50 × 22 mm in alternate variants) with a lightweight profile (0.15–0.3 kg) for space-constrained installations .
