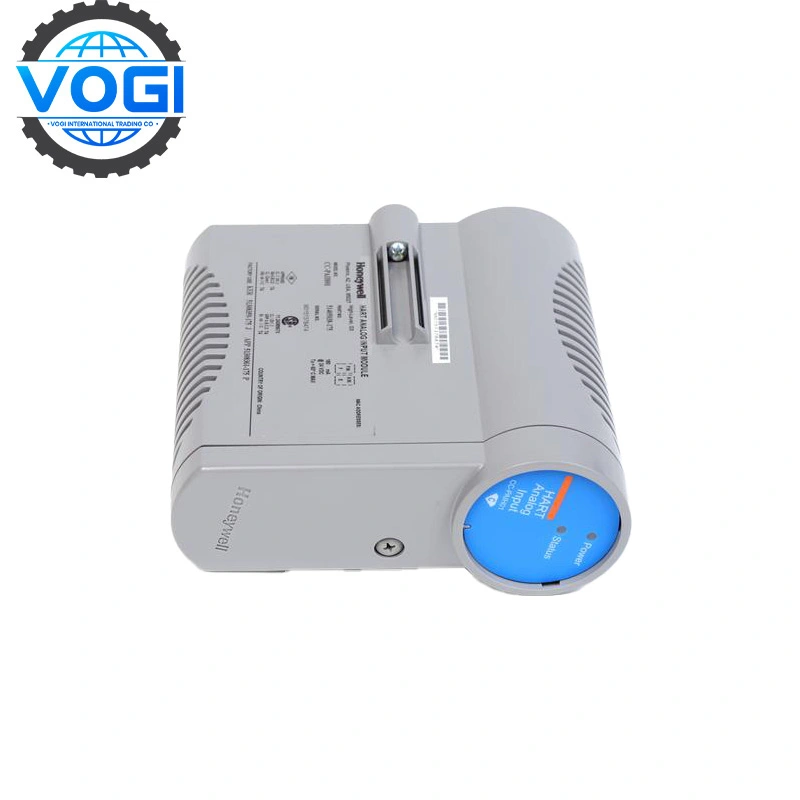

HONEYWELL CC-PAIH01 Analog Input Module

Brand HONEYWELL
Module Number CC-PAIH01
Unit Price $800
Country Of Origin United States
Weight 0.6KG
Certificate C/O from the Chamber of Commerce C/Q from the Manufacturer
Warranty 12 Months
Inventory Qty 10
Submit Inquiry

HONEYWELL CC-PAIH01 Technical specifications

Module model: CC-PAIH01

Type: Analog input module (High-Level Analog Input)

Number of channels: 16-channel single-ended input, each channel can be configured independently

Signal type: Current: 420 mA, 020 mA; Voltage: 15 V, 010 V

HART protocol support: Yes (full channel support)

Resolution: 16-bit

Isolation characteristics: Channel-to-channel isolation + channel-to-ground isolation

Sampling rate: Configurable (typical value: 10 times per second per channel)

Signal accuracy: ±0.05% FSR

Overvoltage protection: Yes

Fault detection function: open circuit, short circuit, overvoltage, communication abnormality, etc.

Power supply: From FTA (Field Termination Assembly) or I/O interface module

Operating temperature: 0 ~ 60°C

Relative humidity: 5% ~ 95%

Support module redundancy: Yes (deployed in pairs with CC-TAIH01)

Dimensions: Compatible with C300 controller standard I/O slots

Compatible platforms: Experion PKS / C300 controller platform

Certification standards: CE, UL, CSA, SIL2 Capable (TÜV)

Beneficiary's Bank: CITIBANK N.A.
Beneficiary address:Champion Tower,Three Garden Road,Central,Hong Kong
Beneficiary: Vogi International Trading Co., Limited
Account No.: 395714900
Bank Code: 006 Branch Code: 391
Swift Code:CITIHKHX (CITIHKHXXXX * If 11 characters are required)
Payment Term：T/T

DataSheet Download

HONEYWELL CC-PAIH01 Key features​

Multi-parameter integrated monitoring: integrated air pressure sensor, temperature and humidity sensor, dew point sensor, support synchronous measurement of pressure, temperature, humidity, dew point and other parameters;

Intelligent control and compensation: built-in PID controller, support automatic adjustment of air flow/pressure; adopt temperature/humidity cross compensation algorithm to eliminate the interference of environmental factors on air pressure measurement.

Open communication and integration: support BACnet MS/TP, Modbus RTU/ASCII, 4-20mA/0-10V analog output, compatible with mainstream building automation (BAS) and industrial control systems.

CC-PAIH01 1

Typical cooperation cases

Saudi Arabia SABIC Petrochemical Plant: Honeywell CC-PAIH01 module is used in large-scale DCS system deployment to collect temperature, pressure and other signals.

ExxonMobil Crude Oil Refinery in the United States: The control room upgrade project uses Honeywell CC-PAIH01 + CC-TAIH01 module redundant deployment to achieve uninterrupted process monitoring.

India NTPC Power Plant Boiler Control System: Honeywell CC-PAIH01 collects boiler combustion and water level parameters, and combines FTE network to build a distributed high-reliability control platform.
