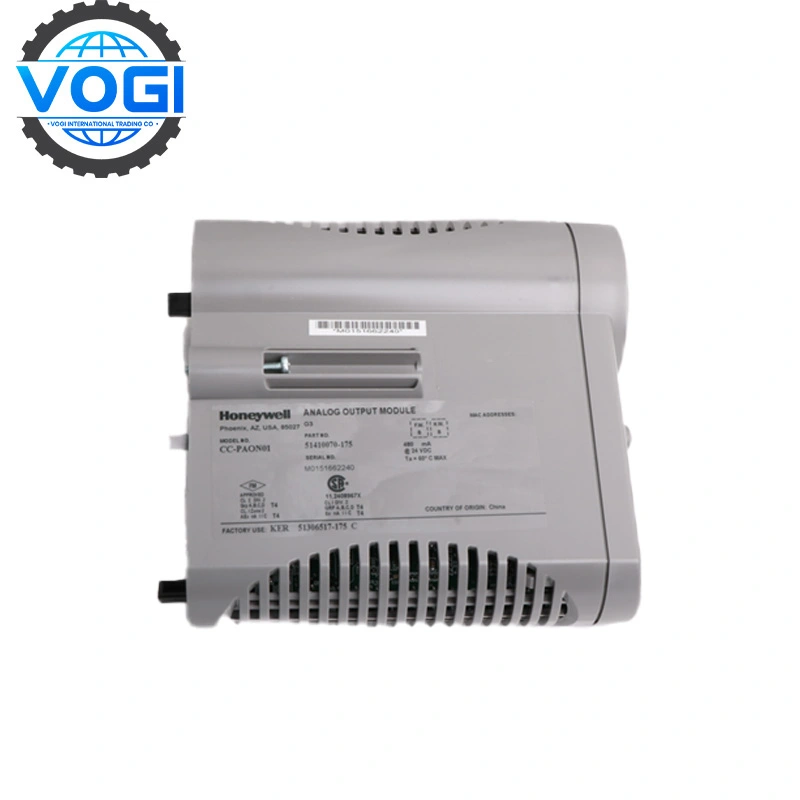

HONEYWELL CC-PAON01 51410070-175 Honeywell Analog Output with HART

Brand HONEYWELL
Module Number CC-PAON01
Unit Price $1200
Country Of Origin United States
Weight 0.8KG
Certificate C/O from the Chamber of Commerce C/Q from the Manufacturer
Warranty 12 Months
Inventory Qty 10
Submit Inquiry

HONEYWELL CC-PAON01 Technical specifications

Number of output channels: 16 (4–20mA or 0–10V)

Maximum open circuit voltage: 22V

Output current: 4–20mA; voltage output version supports 0–10V

Accuracy: ±0.5% FS

Output readback: Use readback mechanism to detect anomalies such as output deviation

Response time: ≤80ms to 1% target value

Redundancy switching time: ≤10ms

Isolation voltage: Channel isolation and ground isolation, in accordance with IEC safety standards

Power input: 24V DC, provided by IOTA

Ambient operating temperature: –40°C to +70°C

Output status indication: Channel indicator + system diagnostic feedback

Beneficiary's Bank: CITIBANK N.A.
Beneficiary address:Champion Tower,Three Garden Road,Central,Hong Kong
Beneficiary: Vogi International Trading Co., Limited
Account No.: 395714900
Bank Code: 006 Branch Code: 391
Swift Code:CITIHKHX (CITIHKHXXXX * If 11 characters are required)
Payment Term：T/T

DataSheet Download

HONEYWELL CC-PAON01 Key features​

HART communication support: The status and parameters of on-site smart instruments can be read through the HART protocol.

Safety output design: The output is a non-ignition source, suitable for Class I/II Zone 2 safety areas.

Modular hot-swappable: Plug in standard 6″ IOTA or redundant 12″ IOTA, support online disassembly and assembly without downtime.

System-level redundancy: Supports channel-level FAILOPT safety output mode, which can be configured to simulate fallback or hold status, and quickly execute safety actions when the system fails.

CC-PAON01 1
CC-PAON01 2

Typical cooperation cases

Industrial facilities: The reactor area of a chemical plant in Munich, Germany, uses the 4-channel output function of Honeywell CC-PAON01 to achieve precise control of reaction temperature.

Water treatment industry: A municipal sewage treatment plant in Sydney, Australia, Honeywell CC-PAON01 connects 8 dosing pumps and dynamically adjusts the dosage of the agent according to the dissolved oxygen sensor data.

Data center: The IT room of a supercomputing center in Singapore, Honeywell CC-PAON01 controls the speed of 8 inter-row fans through 0-10V signals to balance cooling efficiency and energy consumption.
