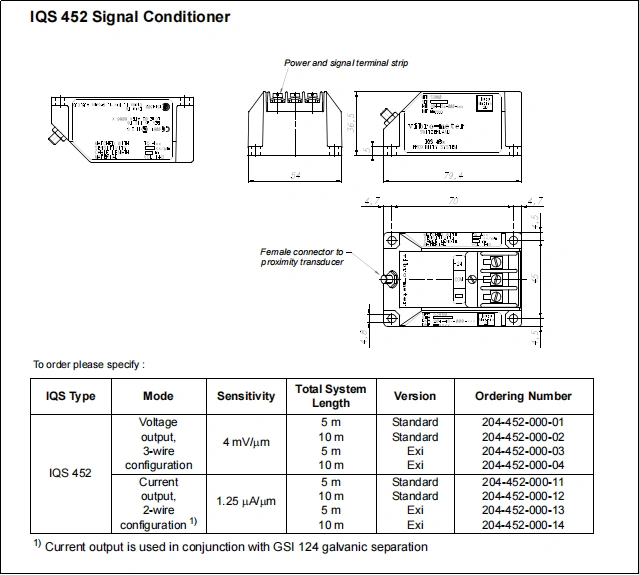

IQS452 204-452-000-011 204-452-000-221 Signal Conditioner

IQS452 204-452-000-011 204-452-000-221 Signal Conditioner

Model Number	IQS452
Ordering Number	204-452-000-011 204-452-000-221
Unit Price	$1500
Country Of Origin	Switzerland
Weight	0.8KG
Certificate	C/O from the Chamber of Commerce C/Q from the Manufacturer
Warranty	12 Months
Inventory Qty	10

IQS452 is a dedicated signal conditioner for eddy current sensor systems. Its core function is to convert the displacement signal of the TQ4x2 series probe into standard voltage/current output.

Add to Cart

Submit Inquiry

Description

Payment & Security

Datasheet Download

Description

IQS452 Key parameters

Parameter	Specification
Full PN	IQS452 204-452-000-011
Input Compatibility	TQ4x2 Proximity Sensors (e.g. TQ422/TQ432)
Sensitivity	4 mV/µm (Voltage Mode)
Output Configuration	3-wire Voltage Output (0XX Version)
Output Range	-2.4 V (Min Gap) to -18.4 V (Max Gap)
Measuring Range	0–4.0 mm (Linear Range)
Frequency Response	DC to 20 kHz (±0.5 dB, -3 dB at 20 kHz)
Linearity Error	< ±1% FS (Per System Curve)
Power Source	24V DC ±10% (From Rack/Module)
Operating Temp.	-25°C to +85°C (Conditioner)
Housing Protection	IP40 (Aluminum Extrusion)
Hazardous Certification	Standard (Non-Ex) Version
Cable Compatibility	EA402 Extension Cable (5m Standard)
Connector Type	AMP 1-330 723-0NB (Hand-tightened)

Payment & Security

Beneficiary's Bank: CITIBANK N.A.
Beneficiary address:Champion Tower,Three Garden Road,Central,Hong Kong
Beneficiary: Vogi International Trading Co., Limited
Account No.: 395714900
Bank Code: 006 Branch Code: 391
Swift Code:CITIHKHX (CITIHKHXXXX * If 11 characters are required)
Payment Term：T/T

Datasheet Download

DataSheet Download

IQS452 Application Case

Monitoring of hydroelectric generators in Northern Europe
Statkraft Hydropower Station in Norway uses IQS452 connected to TQ432 probe to monitor the vibration of Francis turbine shaft, and has been running continuously for 12 years without failure in 90% humidity environment, with MTBF exceeding 100,000 hours.
Gas turbine power station in the Middle East
Taweelah Power Plant in the United Arab Emirates equips Siemens SGT5-4000F gas turbine with IQS452 system (TQ422 probe + EA402 cable), achieving axial displacement monitoring accuracy of ±0.05mm, avoiding unplanned downtime losses of $2M+ per year.
Shale gas compression station in North America
30 compression stations in Texas use IQS452 204-452-000-011/204-452-000-221to monitor the displacement of piston rods of reciprocating compressors, and the anti-electromagnetic interference design reduces the signal false alarm rate by 85%.
