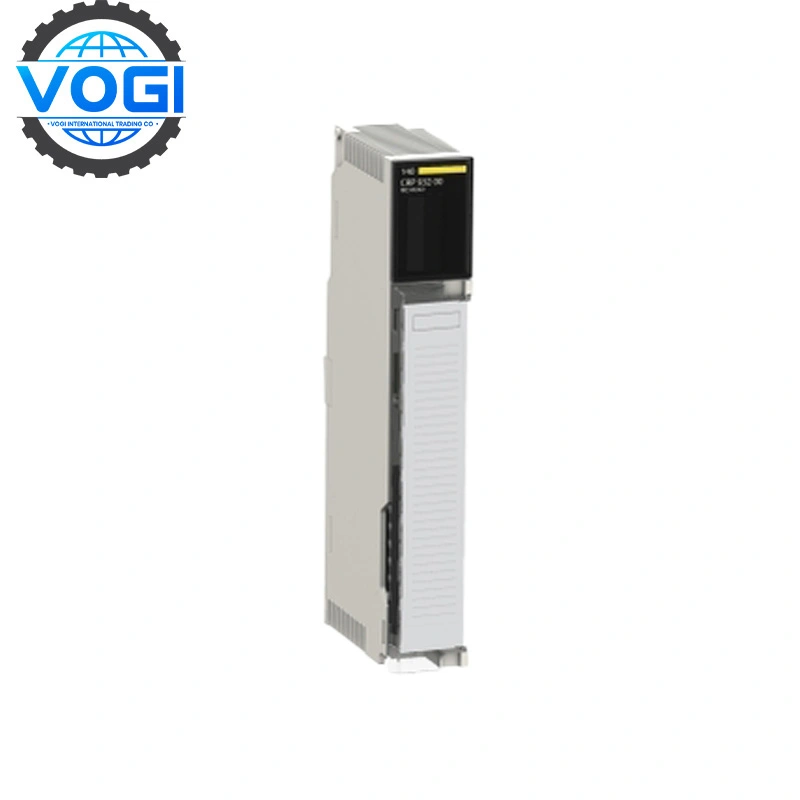

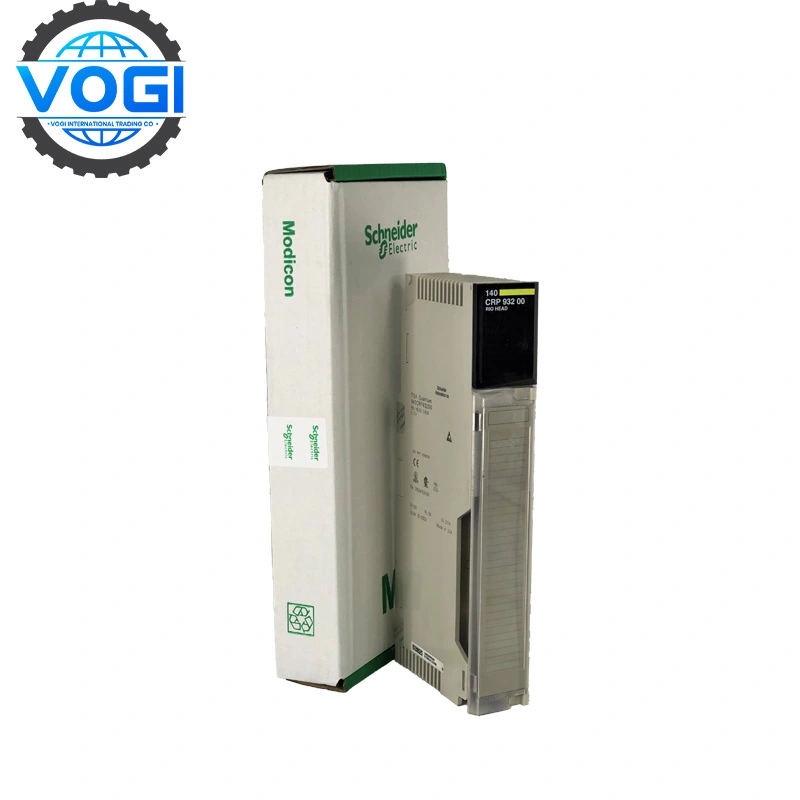

Schneider 140CRP93200 RIO head-end adaptor module Modicon Quantum

Schneider 140CRP93200 RIO head-end adaptor module Modicon Quantum

Brand	Schneider
Module Number	140CRP93200
Price	$ 600
Weight	0.54KG
Country Of Origin	France
Certificate	C/O from the Chamber of Commerce C/Q from the manufacturer
Warranty	12 Months
Inventory Qty	10

Description

Details

Payment & Security

DataSheet Download

Description

Schneider 140CRP93200Technical specifications

Main
Range of Product	Modicon Quantum automation platform
Product or Component Type	RIO head-end adaptor module
Complementary
Product Compatibility	Symax (any mix) Quantum 200/500/800 series
Maximum drops/network	31
I/O words/drop	64 I/64 O
Type of cable	75 Ohm coaxial
Transmission Rate	1544 Mbit/s
Dynamic range	35 dB
Isolation voltage	500 V DC coaxial center and ground
Electrical connection	2 female connectors F, elbowed with redundant cable
Diagnostics startup	Memory check LAN controller check Power up
Power dissipation in W	3 W 2 channels
Marking	CE
Bus current requirement	750 mA 2 channels
Module format	Standard
Environment
Product Certifications	FM Class 1 Division 2
Standards	UL 508 CSA C22.2 No 142 CUL
Resistance to electrostatic discharge	4 kV contact IEC 801-2 8 kV on air IEC 801-2
Resistance to electromagnetic fields	9.1 V/m (10 V/m) 80…1000 MHz IEC 801-3
Ambient air temperature for operation	32…140 °F (0…60 °C)
Ambient Air Temperature for Storage	-40…185 °F (-40…85 °C)
Relative Humidity	95 % without condensation
Operating altitude	<= 16404.2 ft (5000 m)

Details

Purpose:

Schneider 140CRP93200 is a redundant communication processor module of the Modicon M340 series, desi

Purpose:

Schneider 140CRP93200 is a redundant communication processor module of the Modicon M340 series, designed for high-availability industrial automation systems, supporting dual network redundancy and local I/O expansion. Core functions include real-time data synchronization, automatic fault switching, protocol conversion, and distributed I/O management, suitable for continuous production control in mission-critical scenarios.

gned for high-availability industrial automation systems, supporting dual network redundancy and local I/O expansion. Core functions include real-time data synchronization, automatic fault switching, protocol conversion, and distributed I/O management, suitable for continuous production control in mission-critical scenarios.

Payment & Security

Beneficiary's Bank: CITIBANK N.A.
Beneficiary address:Champion Tower,Three Garden Road,Central,Hong Kong
Beneficiary: Vogi International Trading Co., Limited
Account No.: 395714900
Bank Code: 006 Branch Code: 391
Swift Code:CITIHKHX (CITIHKHXXXX * If 11 characters are required)
Payment Term：T/T

DataSheet Download

Schneider 140CRP93200Key features

Dual network redundant architecture: Supports Active-Standby hot standby mode, and the switching time between the main and standby networks is <10 ms, ensuring zero downtime operation.

High-performance communication: Dual-port Gigabit Ethernet, supports full-duplex communication, and the throughput reaches 950 Mbps. Supports jumbo frames to optimize the transmission efficiency of large amounts of data.

Modularity and scalability: Applicable to Modicon M340 PLC racks such as the 140CPU series, supports hot plugging, and is compatible with other communication modules of the M340 series such as 140NOE77101.

Diagnosis and maintenance: Real-time monitoring of network traffic, packet loss rate and link status, and support for SNMP v3 remote alarms. LED status indicators intuitively display system health status.

Typical cooperation cases

Petrochemical: A refinery in the Middle East uses Schneider 140CRP93200 to achieve dual-network redundancy of the SIS system, with an MTBF of 100,000 hours.

Railway: Japan's Shinkansen signal system deploys Schneider 140CRP93200 to ensure zero-interruption transmission of train control signals.

Power substation: A 400kV substation in Europe uses Schneider 140CRP93200 to build an IEC 61850 GOOSE redundant network.
